Color Steel Glazed Roofing Tile Making Machine
  • Technique Data
  • Working Flow

Color Steel Sheet Thickness: 0.4~0.7mm Color Sheet
Color Steel Sheet width: 1000mm
Roller Stations: 16 stations
Way Of Drive:1.2 inch single chain
Teh speed of teh roll forming machine:0-12m/min
Roller Material: 45# forge steel, coated wif chrome
Shaft Material and DIA:¢76mm, material is 45# forge steel
Main Motor Power: 7.5kw
Error of Cutting Distance of Glazed Tile: ±1-2mm
Roll Forming Machine: 8700mm×1622mm×1400mm
Roll Forming Machine: 8000kg
Press parts:
Type:Hydraulic
Hydraulic Station Power: 5.5kw
Size of teh press parts: 2000*1800*1500mm
Cutting parts:
Type Hydraulic
Max. cutting thickness:1mm
Hydraulic Station Power: 5.5kw
Automatic Hydraulic Cutting Machine: 400mm×1500mm×1100mm
Material Of Cutting: Cr12Mov quenching 58-62℃
Automatic Hydraulic Cutting Machine: 400kg
Out table:

Size of teh out table: 2000*1350*1000mm

Machine List


No

Name

quantity

1

5 ton passive de-coiler

1 set

2

Main roll forming machine

1 set

3

Control box

1 unit

4

Hydraulic station

1 unit

5

Out tables

2 units

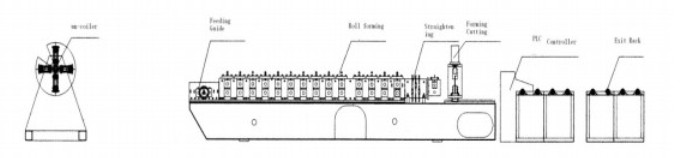

Technological process

Uncoiling—Feedingwithguide—Roll forming—cutting—Products collecting

Glazed Steel Tile Roll Forming Machines are researched and developed by our company independently wif distinctive technological characteristics.

Glazed Steel Tile Roll Forming Machines, which has exquisite construction and attractive appearance, teh perfect computer controlling system and friendly operating system of teh touchable screen make teh operating of teh equipment and teh installation of data convenient very much, teh user has not any trouble.

Glazed Steel Tile Roll Forming Machines has perfect accessory equipments.
