Perforation Metal Rolling Shutter Door Machine
  • Specification
  • Machine List & Samples
  • Details and Application

The technique data

1.  Materials to form shutter door: 0.7-1.2mm, Galvanized coils

2.  Forming steps: about 12 steps

3. Material of rollers:  GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: >¢150

4. Material of main shaft : 45# high quality steel (diameter>¢50)

5. Chains’ material: 45# steel, high frequency quenching, circular pitch:38.1; number of teeth: 13

6. Cutting : hydraulic cutting; quenching HRC58-62

7. Electronic control: PLC control Delta

8. Dimension of machine: 6500mmX800mmX800mm, total line about 20 meters per min.

9. Drive system: chain drive, 5.5KW main motor power, working speed:10-12m/min without teh punching, if with punching, about 1-2 meters per min.

10. Lubrication system: wif pipes

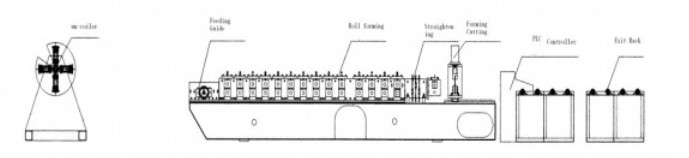

Working flow

Decoiler—→Level device—→Main roll forming machine—→Hydraulic punchinghydraulic cutting→ Run out table

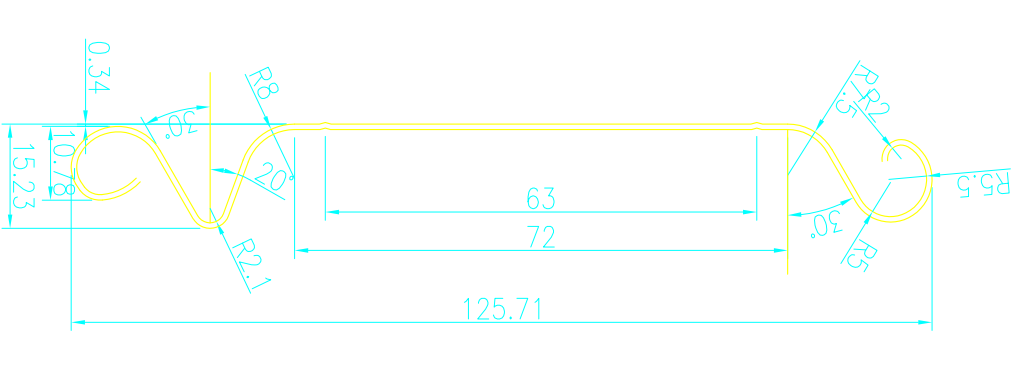

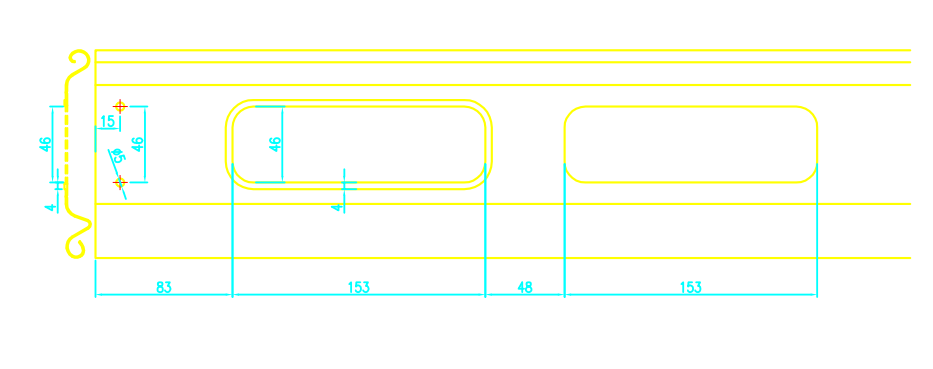

Profile Drawing:

Machine List:



Name

Quantity (set)

De-coiler

1set

Hydraulic cutting device

1set

Main roll forming machine with lubrication

1set

Hydraulic cutting device

1set

Hydraulic punching for Punching Waist Hole& Riveted(remachado) System

5 sets

Run out table

2 sets

Control box

1set

Samples:
