0.3-0.8mm Auto Width Adjustable 300-530mm PLC Residential Warehouse Roof Snap Lock Standing Seam Roof Panel Roll Forming Machine
This 0.3-0.8mm Snap Lock Standing Seam Roof Panel Roll Forming Machine supports processing PPGI, galvanized steel sheet and aluminum sheet. It features auto width adjustment from 300mm to 530mm and PLC control system for stable and easy operation.
The whole line includes a 5-ton passive decoiler, with an optional 5-ton hydraulic decoiler equipped with coil car. It is equipped with film covering and wool felt device to protect the panel surface from scratches. Optional working units are available: manual pre-cutting device, hydraulic pre-punching device, roll punching device, hydraulic cutting device and bending units.
Finished snap lock standing seam panels are widely used for villas, residential houses, warehouses, workshops and commercial roofing projects. The machine produces panels with neat profile, precise dimension and reliable quality.
Machine List:
|
S.N
|
Equipment name
|
Quantity
|
||
|
1
|
5 ton passive decoiler
|
1 set
|
||
|
2
|
5 tons hydraulic de-coiler with coil car (optional)
|
1 set
|
||
|
3
|
Film covering and Anti-condensation felt device
|
1 set
|
||
|
4
|
Hydraulic pre-cutting device
|
1 set
|
||
|
5
|
Hydraulic pre-punching device
|
2 sets
|
||
|
6
|
Main roll forming machine
|
1 set
|
||
|
7
|
Roll Punching device
|
1 set
|
||
|
8
|
Hydraulic Cutting Device
|
1 unit
|
||
|
9
|
Bending Units
|
2 sets
|
||
|
10
|
PLC Control box
|
1 unit
|
||
|
11
|
Hydraulic station
|
1 unit
|
||
|
12
|
Out tables
|
2 units
|
||
|
13
|
Safety cover
|
1 set
|
||
|
14
|
Spare parts
|
1 Package
|
||
Machine Specification:
|
1
|
Material Thickness
|
0.3-0.8mm PPGI, Galvanized sheet，Aluminium
|
||
|
2
|
Working Speed
|
About 3-5 m/min
|
||
|
3
|
Forming Steps
|
About 18 stations
|
||
|
4
|
Material of Roller
|
45#forge steel
|
||
|
5
|
Driven system
|
Chain driven
|
||
|
6
|
Main motor power
|
7.5 KW servo motor
|
||
|
7
|
Cutting type
|
Hydraulic Cutting
|
||
|
8
|
Material of cutting
|
Cr12Mov
|
||
|
9
|
Electronic control
|
PLC control
|
||
|
10
|
Hydraulic Station Power
|
5.5 KW
|
||

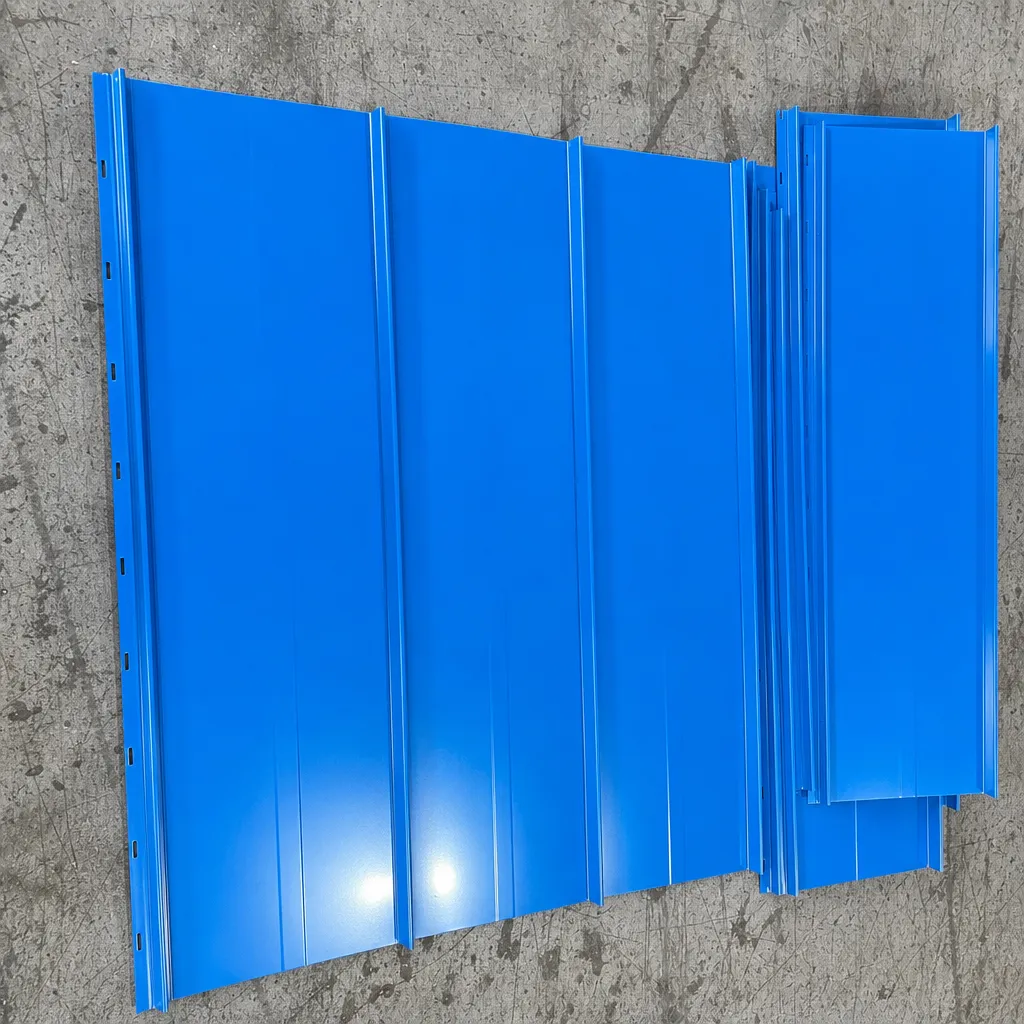

The overlapped one is the finished panel with 300mm width.

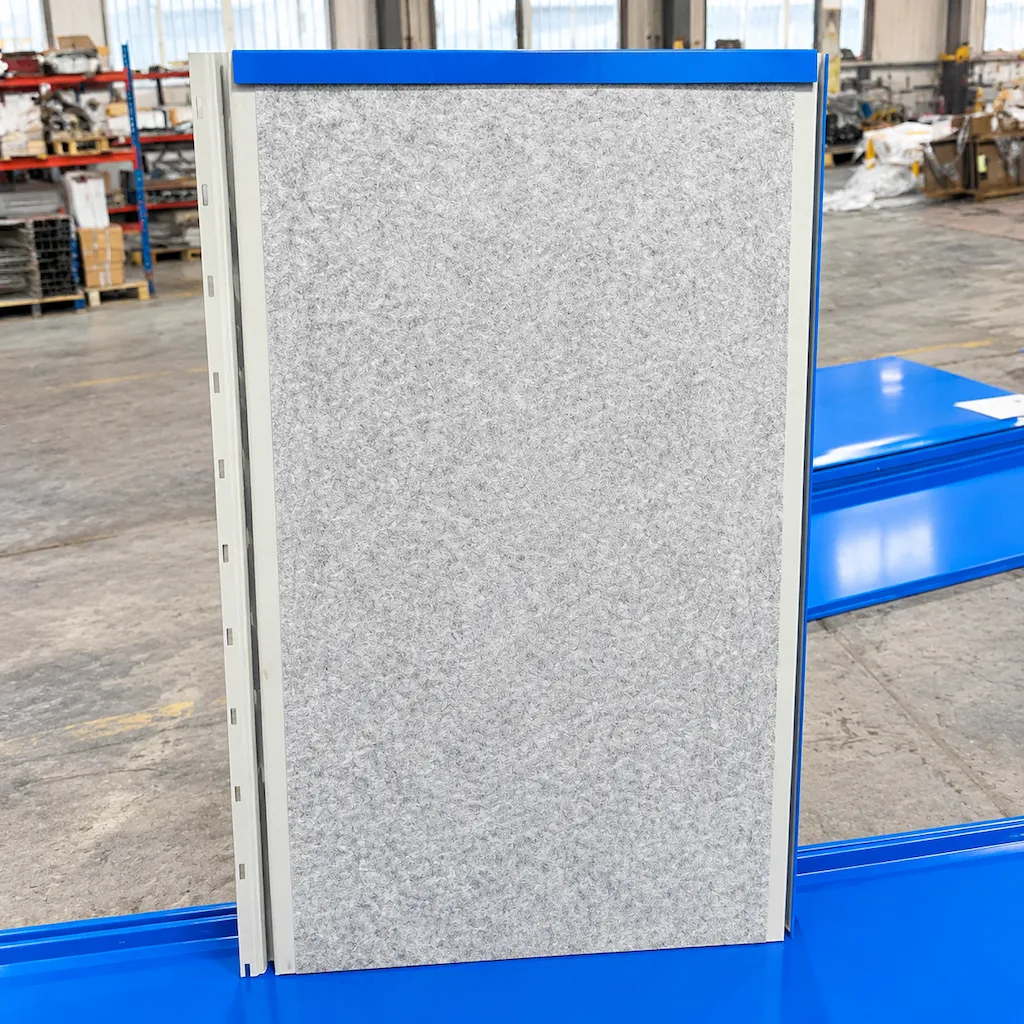

This is the 530mm finished panel, lined with anti-condensation felt on the back, with folded edges and roller-punched small holes on the side.

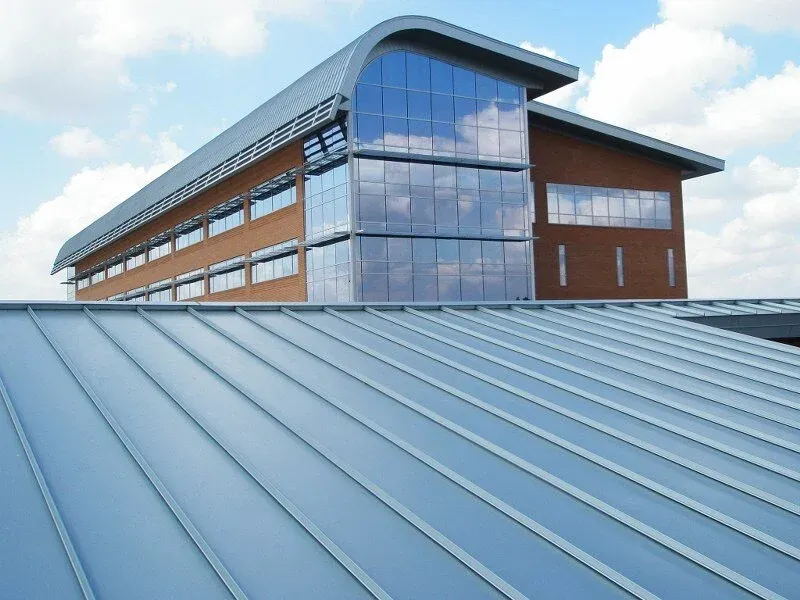

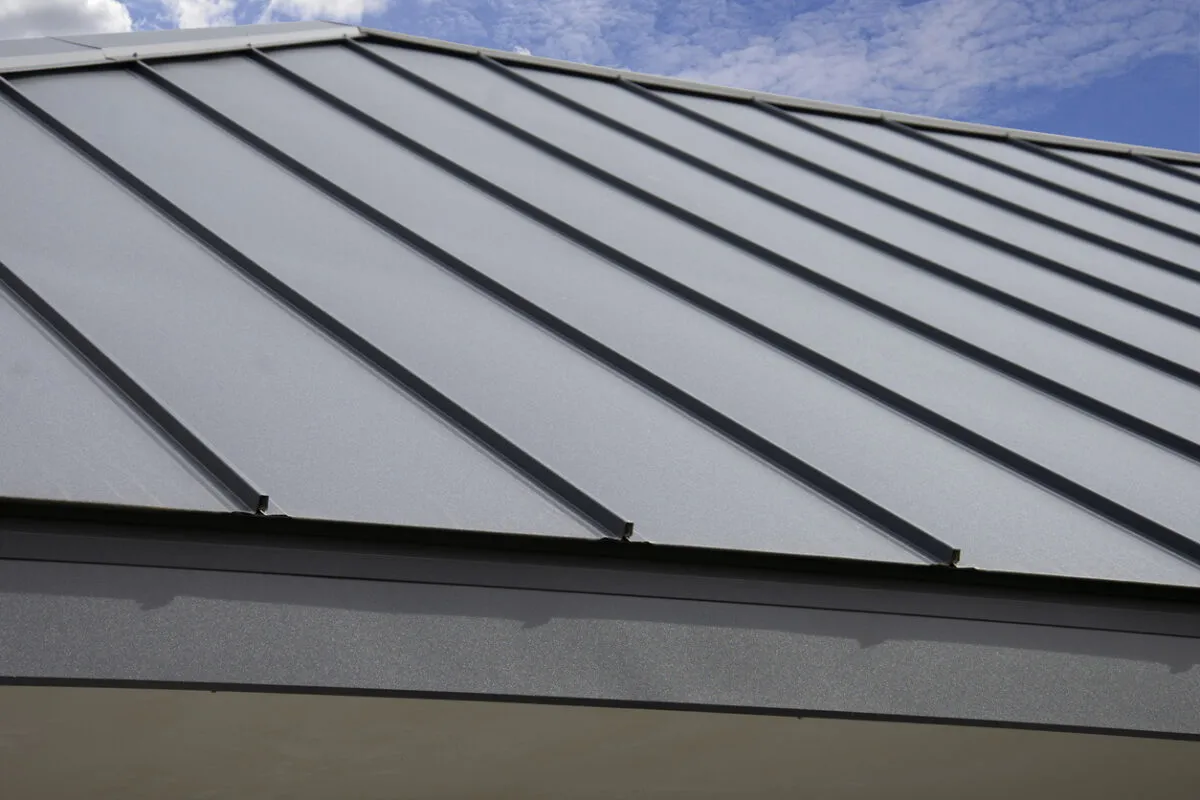

1. Residential Villa Roofing
2. Industrial Workshop & Warehouse Roofing
3. Commercial Building Roofing
4. Agricultural & Farm Building Roofing
5. Renovation & Retrofit Roof Projects
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.
2. On-time Delivery Guarantee
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.
3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.
4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.
5. Cost-effective On-site Matching
Fit construction demands of multiple regions, lower production cost and improve project construction efficiency.
