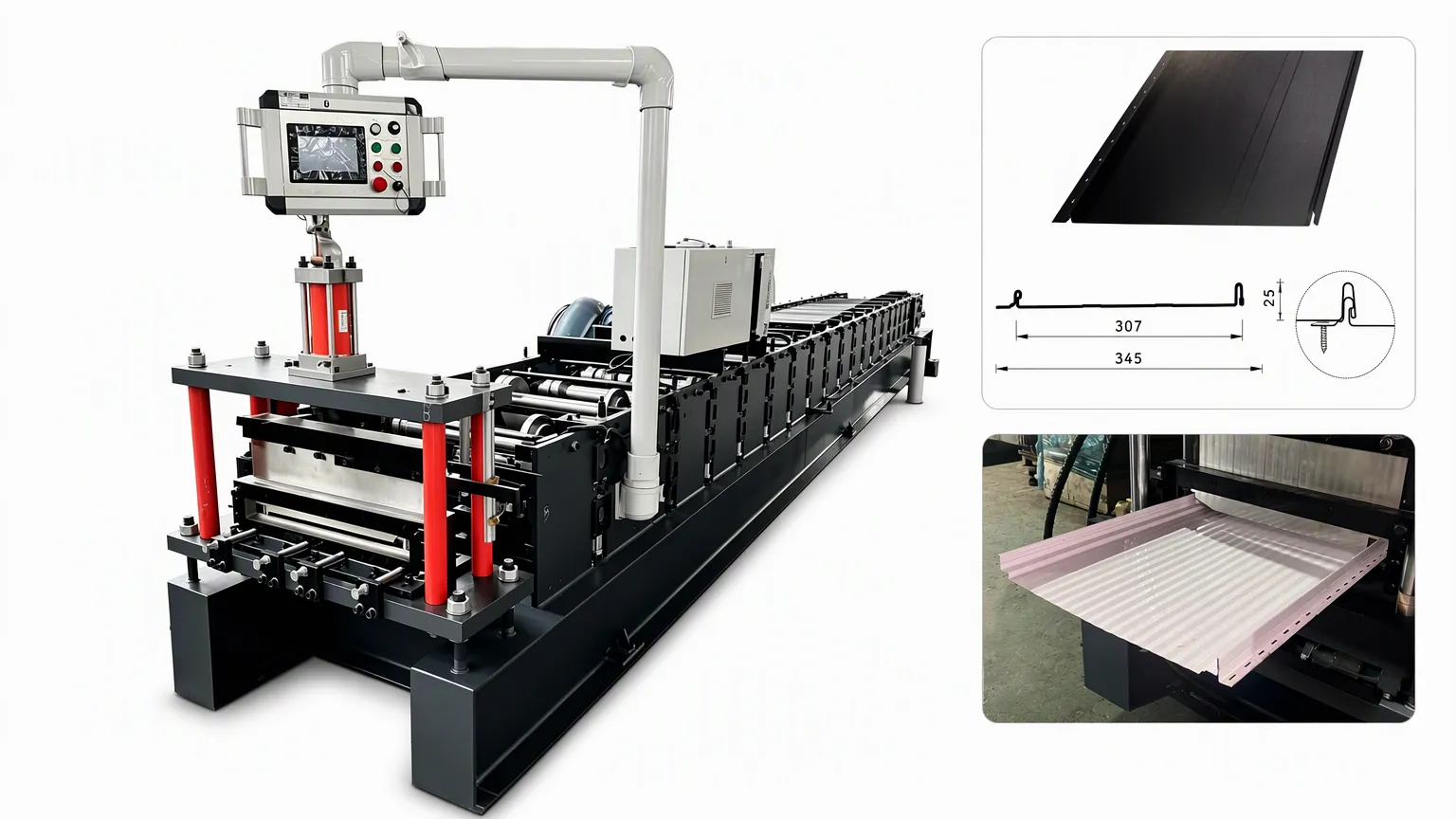

Snap Lock Standing Seam Panel Roll Forming Machine is engineered for high-precision manufacturing of concealed-fastener metal roofing panels. Processing 0.3–0.8mm galvanized steel and PPGI coils, the machine delivers consistent panel quality with a PLC-controlled automatic width adjustment system covering 12–24 inches, allowing quick format changes between jobs without manual reconfiguration.

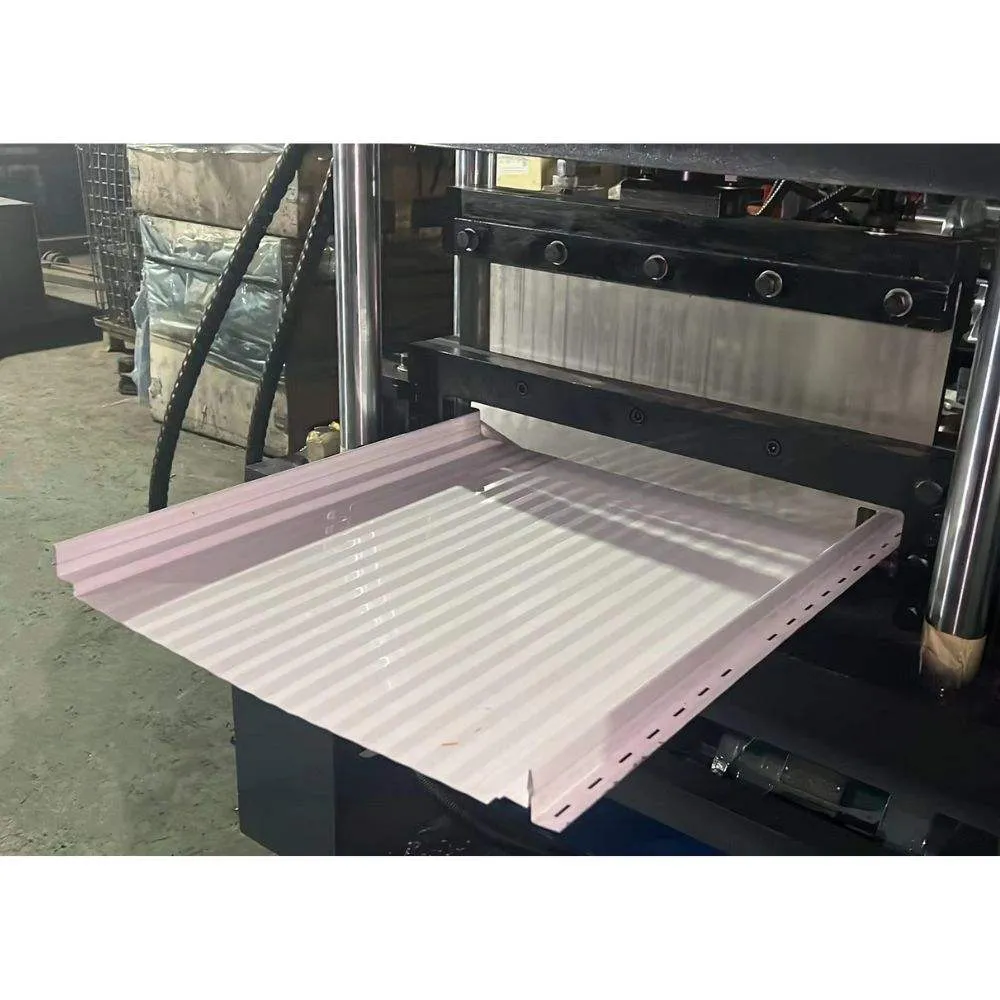

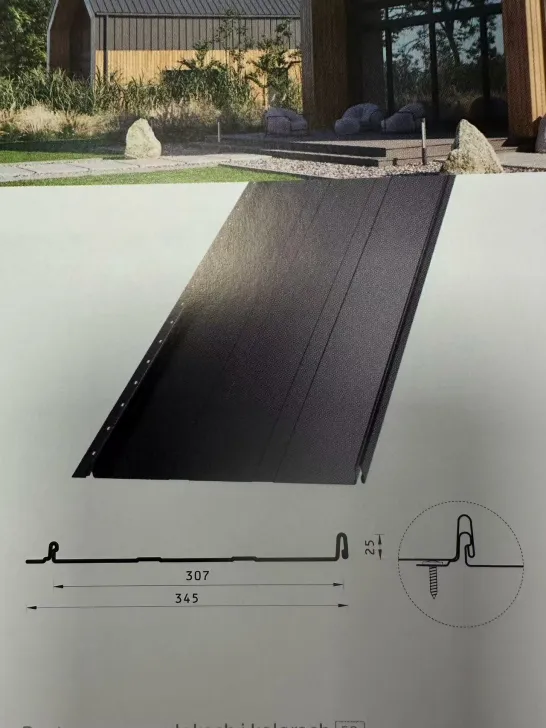

The main roll forming line integrates roller punching for accurate, burr-free hole patterns and three sets of embossing rolls that add structural rigidity and decorative surface texture to finished panels. Finished snap-lock profiles feature a seamless interlocking seam, ensuring weather-tight performance and fast on-site installation.

Ideal for residential roofing, commercial buildings, and architectural projects, this machine combines high forming speed with tight dimensional tolerance, making it a reliable solution for both standard production runs and custom-width panel orders.

Machine List:

S.N	Equipment name	Quantity
1	5 ton passive decoiler	1 set
2	Hydraulic notch device	1 set
3	Main roll forming machine with roller punching and 3 set of embossing rolls	1 set
4	Hydraulic Cutting Device	1 unit
5	PLC Control box	1 unit
6	Hydraulic station	1 unit
7	Out tables	2 units
8	Safety cover	1 set
9	Spare parts	1 Package

Machine Specification:

1	Material Thickness	0.3-0.8mm, Galvanzied coils, PPGI
2	Working Speed	About 0-12m/min(cutting time is not include)
3	Forming Steps	About 16 stations
4	Material of Roller	45#forge steel, coated with chrome
5	Driven system	By chain
6	Main motor power	11 KW
7	Cutting type	Hydraulic cutting
8	Material of cutting	Cr12Mov with quench HRC58-62°
9	Electronic control	PLC control
10	Hydraulic Station Power	4 KW

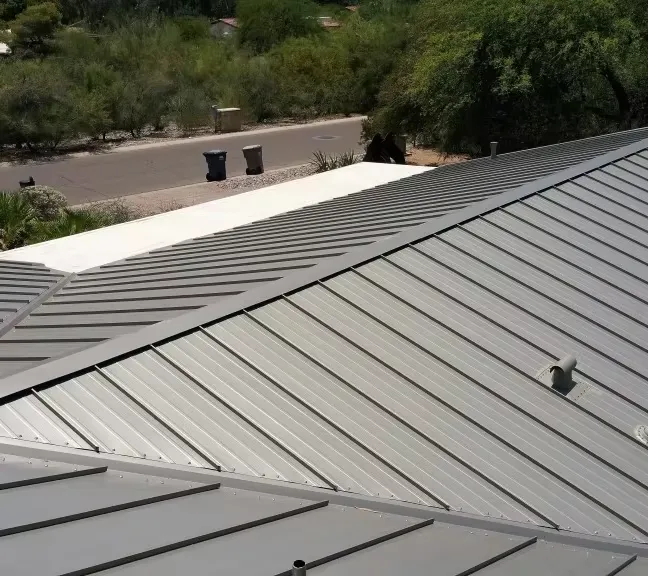

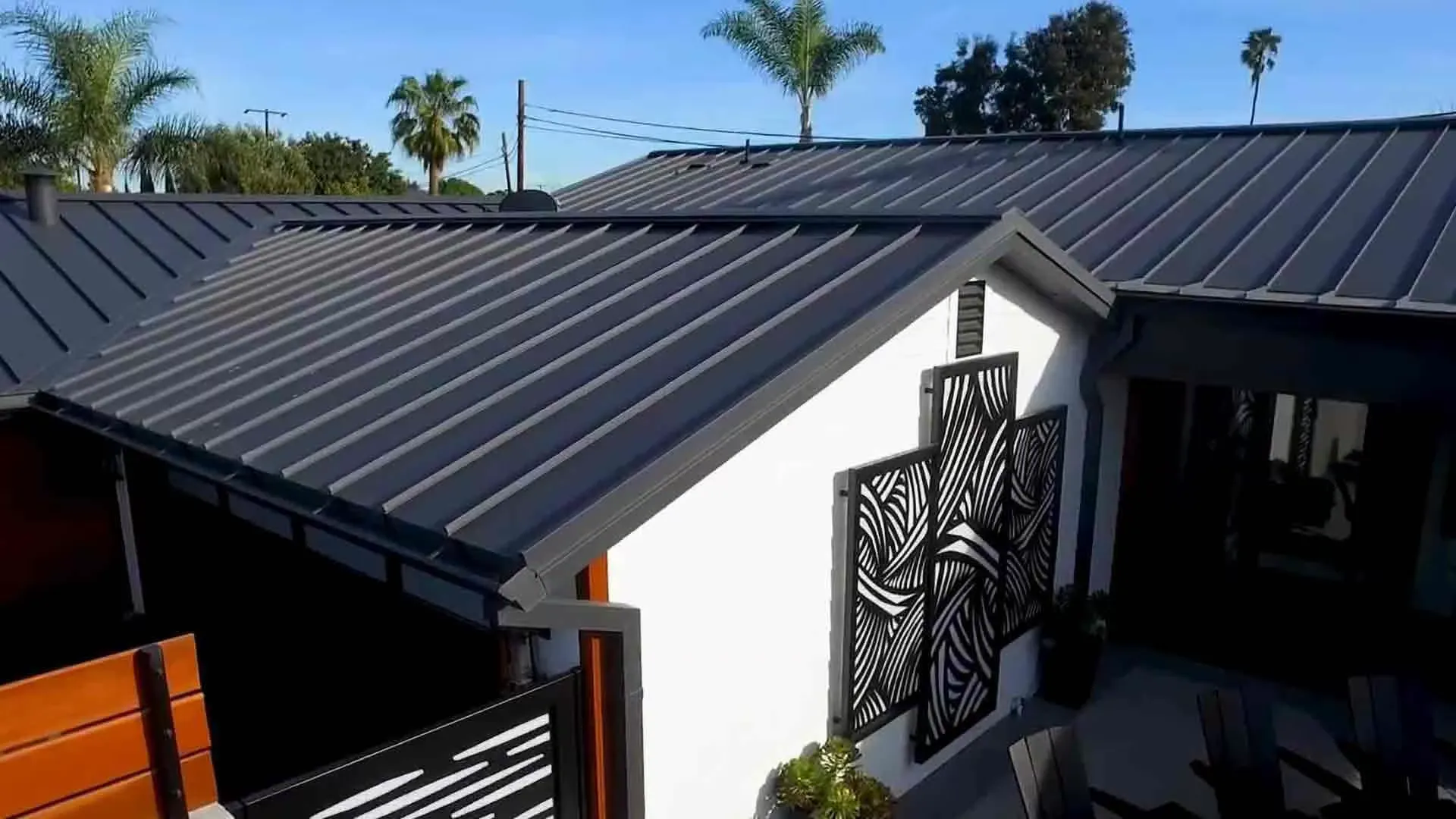

1. Residential Metal Roofing
For high-end residential projects including standalone villas and townhouses, offering weather-tight performance and a clean modern aesthetic.

2. Commercial & Industrial Buildings
Ideal for factories, warehouses, and shopping centers with large-span roofs, enabling fast installation and low long-term
maintenance costs.

3. Architectural & Public Projects
Suitable for airports, stations, stadiums, and other public buildings requiring custom-width panels and complex roof geometries.

4. Roof Renovation & Retrofit
Used to replace traditional asphalt shingles and outdated metal sheets, upgrading weather resistance and extending roof service life.
