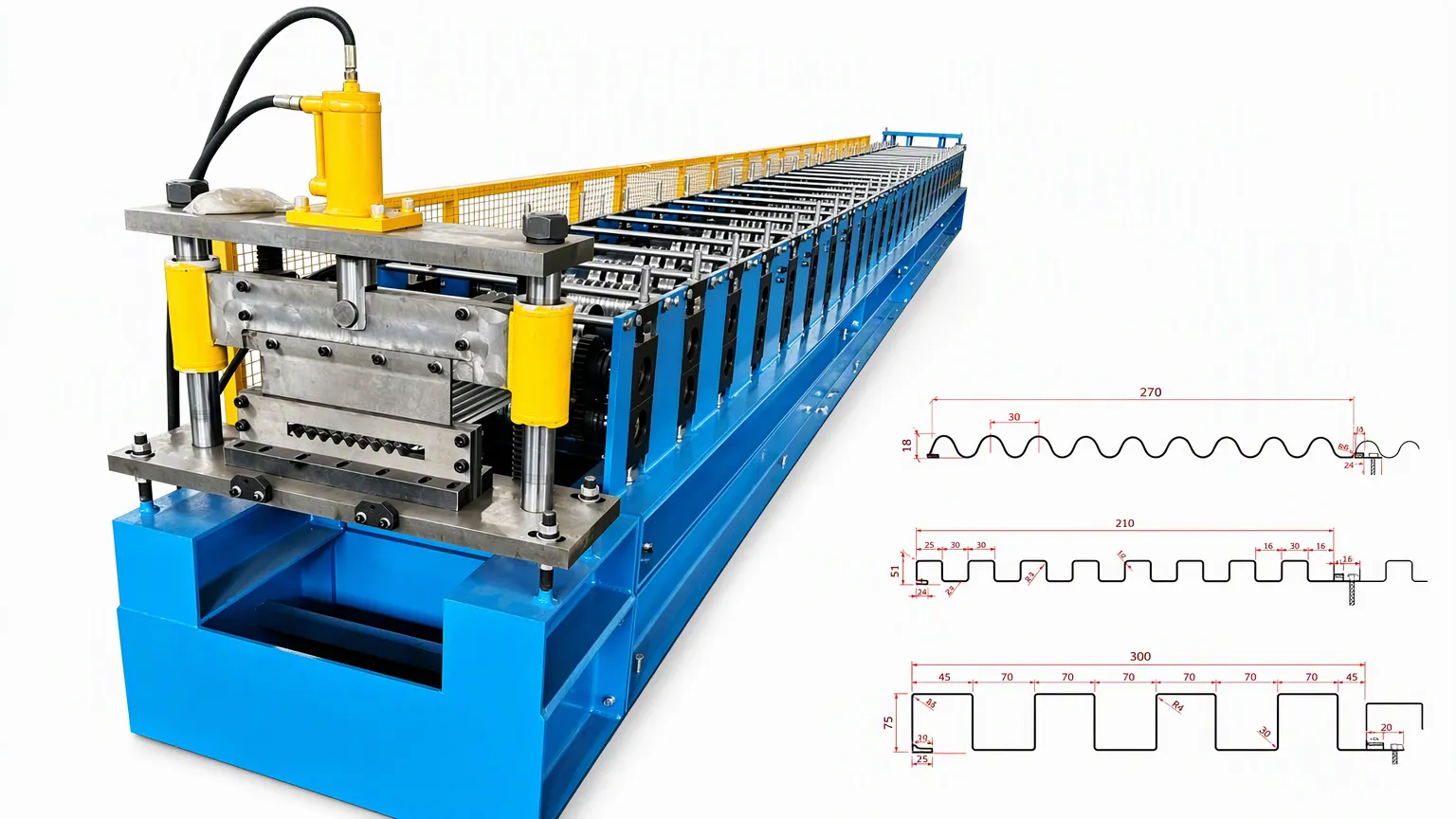

0.3mm-0.8mm 3 Shapes Cassette Residential House Exterior Wall Cladding Decoration Fastened Concealed Siding Wall Panel Roll Forming Machine
This 3‑shapes cassette‑type concealed fastened decorative corrugated siding wall panel roll forming machine is specially designed to produce high‑quality metal exterior wall cladding panels. With quick‑change design, one single machine can produce three different panel profiles, greatly saving your equipment investment cost and workshop space.
It works with material thickness from 0.3mm to 0.8mm, suitable for galvanized coils and PPGI steel coils. Finished panels adopt hidden‑fastener installation structure, beautiful and leak‑proof. Widely applied for villa, residential
house, hotel, shopping mall and other commercial & residential building facade decoration. Fully automatic production guarantees stable running, precise panel dimension and long‑time service life.
|
S.N
|
Equipment name
|
Quantity
|
|
1
|
5 ton passive decoiler
|
1 set
|
|
2
|
Main roll forming machine
|
1 set
|
|
3
|
Hydraulic Cutting Device
|
1 unit
|
|
4
|
PLC Control box
|
1 unit
|
|
5
|
Hydraulic station
|
1 unit
|
|
6
|
Out tables
|
2 units
|
|
7
|
Safety cover
|
1 set
|
|
8
|
Spare parts
|
1 Package
|
|
1
|
Material Thickness
|
thickness 0.3mm-0.8mm, Galvanzied coils, PPGI
|
||
|
2
|
Working Speed
|
About 0-12m/min
|
||
|
3
|
Forming Steps
|
About 24-28 stations
|
||
|
4
|
Material of Roller
|
Gcr15
|
||
|
5
|
Driven system
|
By chain
|
||
|
6
|
Main motor power
|
11 KW
|
||
|
7
|
Cutting type
|
Hydraulic cutting
|
||
|
8
|
Material of cutting
|
Cr12Mov with quench HRC58-62°
|
||
|
9
|
Electronic control
|
PLC control
|
||
|
10
|
Hydraulic Station Power
|
4 kw
|
||

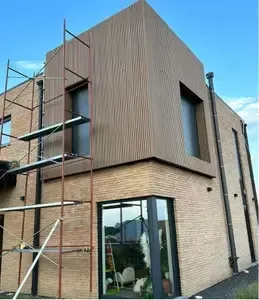

1. Villa Exterior Wall Cladding
Produce decorative concealed‑fastener siding panels for villa outer facade decoration.

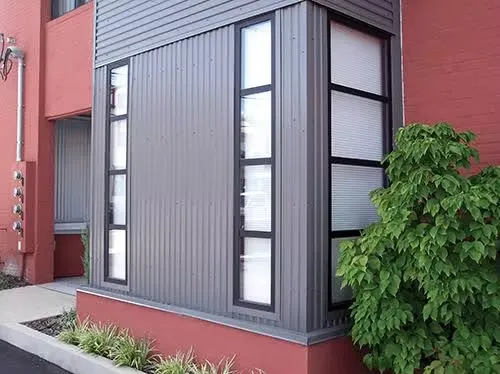

2. Residential Housing Outer Wall Decoration
Ideal for modern residential houses, private apartments exterior wall renovation and new construction.
3. Commercial Building Facade Project
Suitable for office buildings, shopping malls, exhibition centers outer wall cladding.
4. Hotel & Leisure Building Exterior Decoration
Decorative corrugated wall panels for hotels, resorts, clubs and tourism facilities.
5. Industrial Park & Public Facility Wall Cladding
Apply for factory office, community service center and other public‑building exterior walls.
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.
2. On-time Delivery Guarantee
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.
3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.
4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.
