0.4-0.6mm Color Painted Steel Rolling Shutter Slat Roll Forming Machine

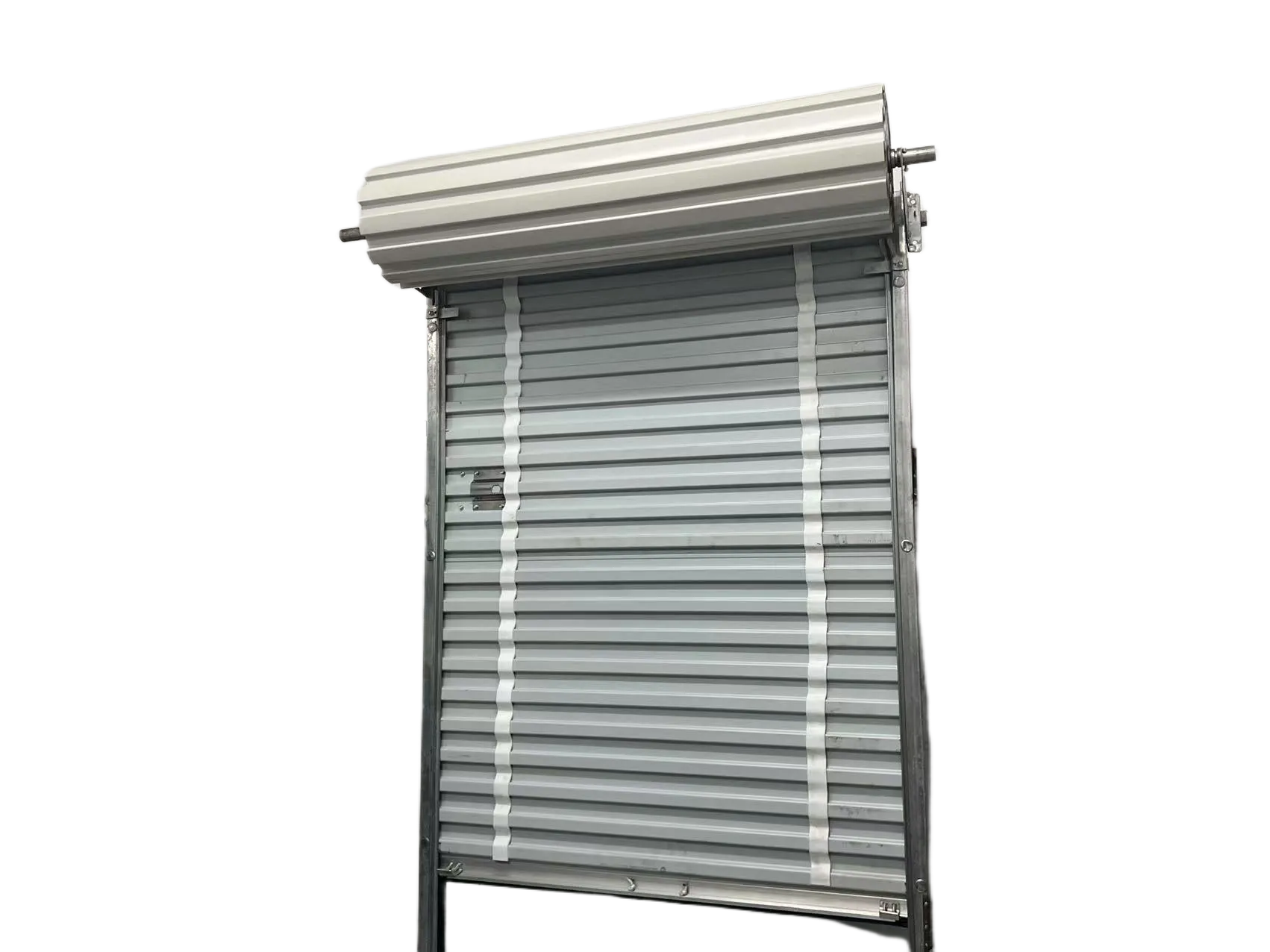

The rolling shutter door is made of interlocking metal slats that can roll up smoothly into a compact barrel, providing strong security and space-saving operation. It is widely used for shops, warehouses, garages, and industrial buildings.

The rolling shutter slats feature a ribbed and curved profile, which enhances strength and ensures stable and quiet operation. The roll forming machine is designed to continuously form metal coils such as galvanized steel, PPGI, or aluminum into rolling shutter slats with high precision. It adopts cold roll forming technology and can be customized according to different slat profiles, widths, and thicknesses to meet various project requirements.

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specification

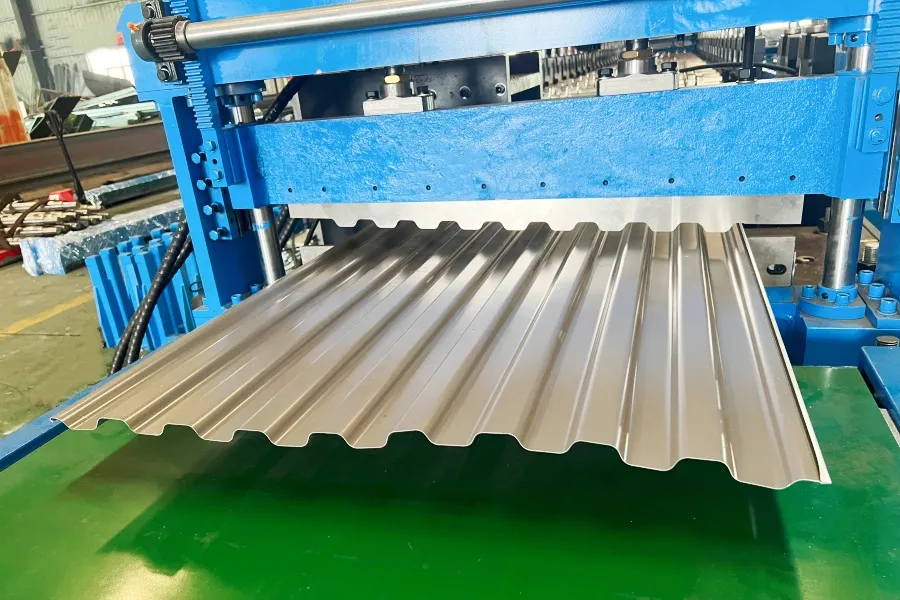

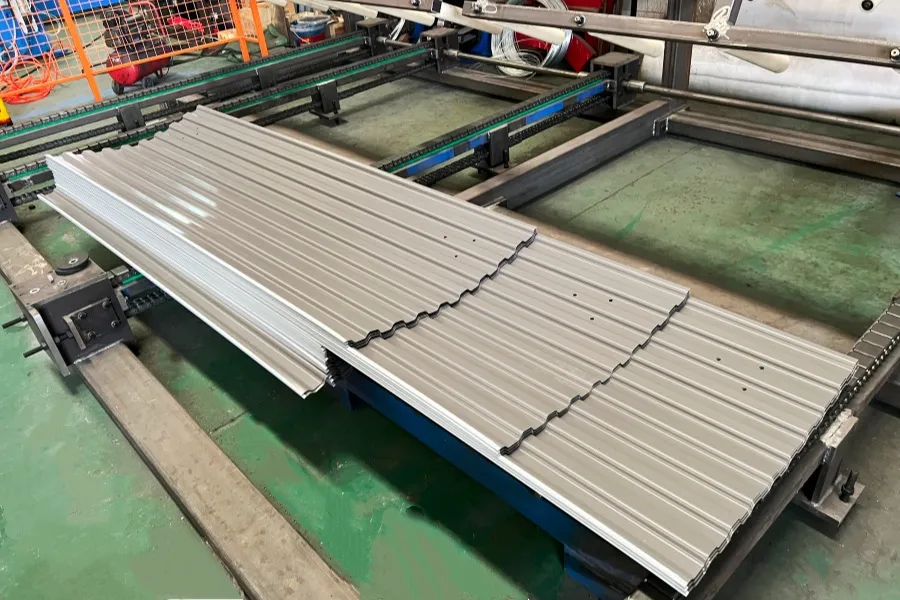

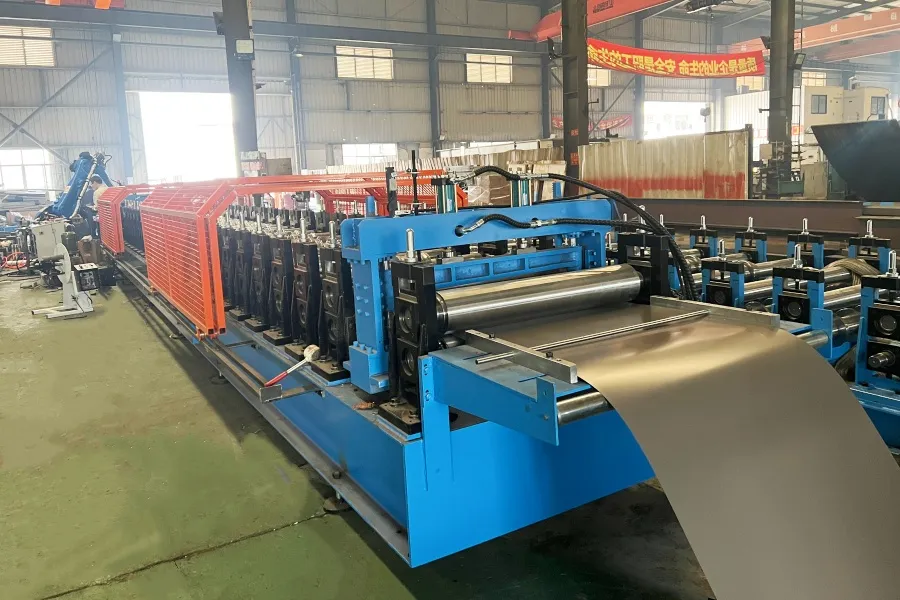

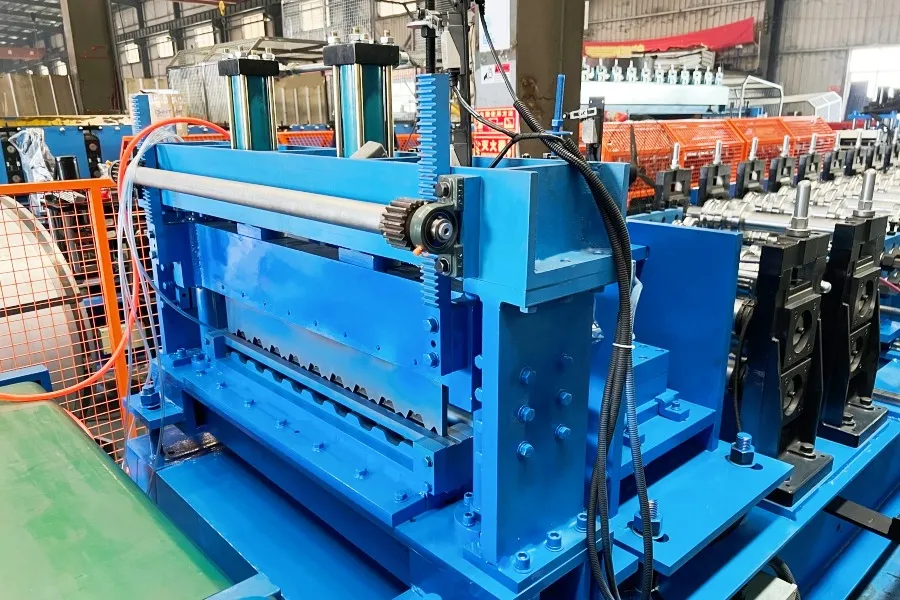

Product Images

Parameter

Material Thickness 0.4-0.6mm galvanized steel, color painted steel
Machine Speed 0-12m/min
Roller Station About 20 stations
Roller Material 45# steel
Effective Width 735mm
Feeding width 914mm
Main Power 7.5kw
Hydraulic Power 4kw
Cutting Material Cr12mov
Voltage 380v/220v/customized
Machine Diamention About 7000*1500*1500mm

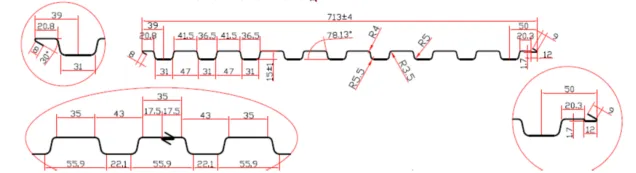

Profile Drawing

Application
