0.7-1.2mm Galvanized Steel Metal Fascia Soffit Reveal Wall Cladding Panels Roll Forming Machine
A soffit panel roll forming machine is designed to continuously produce metal soffit panels used for roof eaves, ceilings, and ventilation systems. It forms galvanized steel, aluminum, or PPGI coils into flat or perforated soffit panel profiles with high accuracy and smooth surface quality.
The machine adopts cold roll forming technology and typically includes decoiler, forming rollers, punching or perforation unit, cutting system, and automatic control system. It offers stable operation, consistent dimensions, and can be customized for different panel widths, thicknesses, and profile designs to meet various architectural requirements.

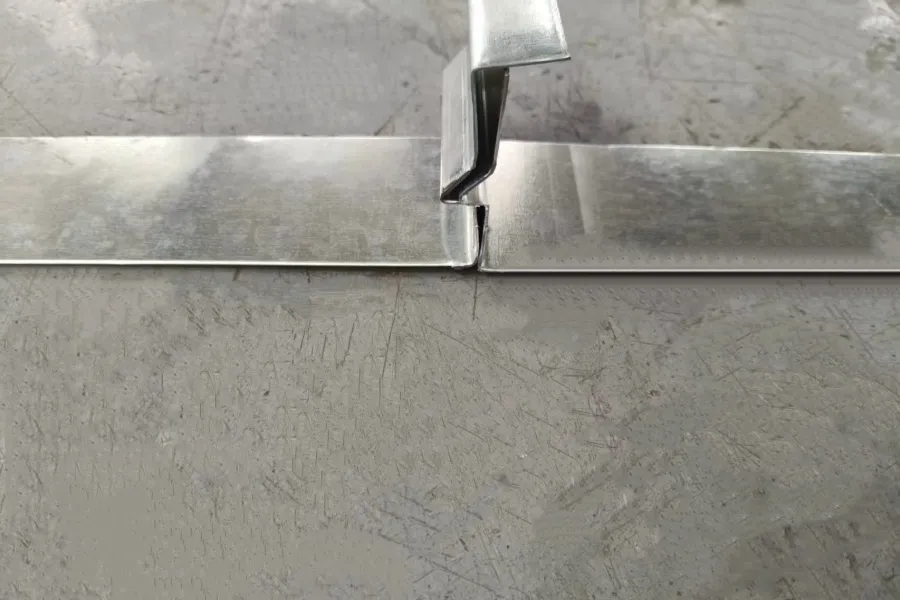

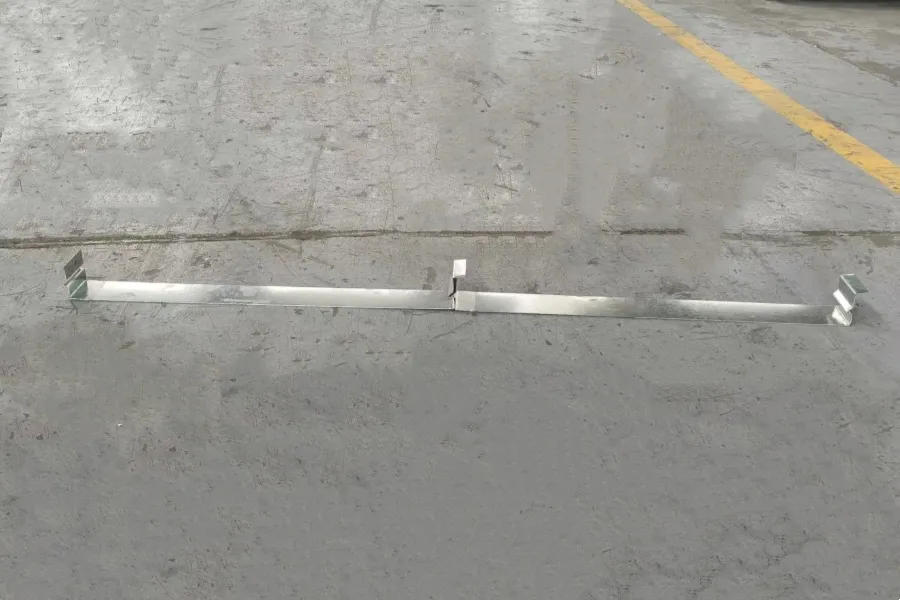

Product Images
Parameter
| Material Thickness | 0.7-1.2mm Galvanized steel, color steel |
| Roller Station | About 20 stations |
| Roller Material | 45# steel |
| Cutting Material | Cr12mov |
| Main Power | 7.5kw |
| Hydraulic Power | 4kw |
| Transmission | Chain |
| Machine Speed | 0-12m/min |
| Machine Diamention | About 7500*1200*1500mm |
Working Flow
Decoiler - Feeding with guide - Roll forming - Hydraulic cutting - Product collecting
Profile Drawing

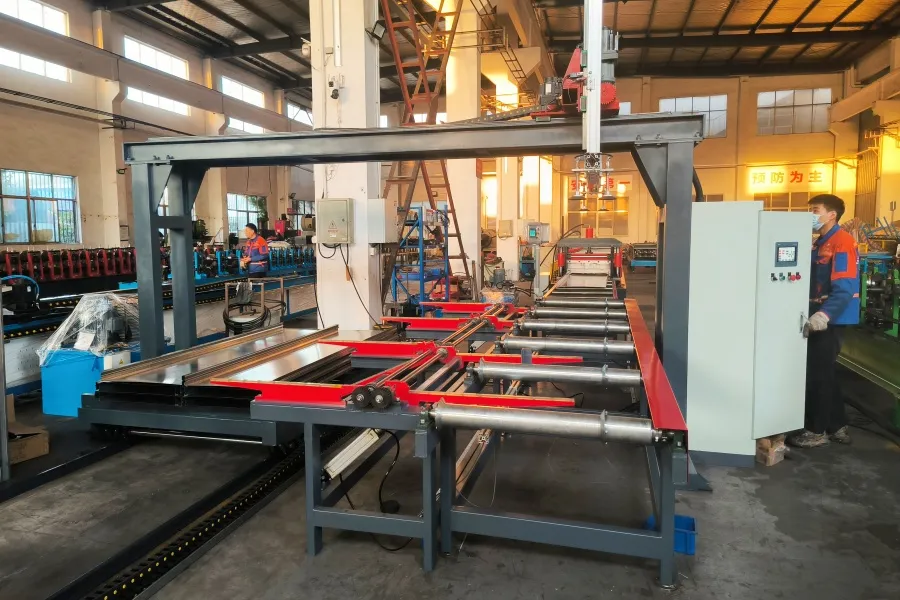

Auto stacker
Application
