Fence Standing Post Sliding Track Guide Rail Roll Forming Machine
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Specifications
Guide rail roll forming machine is a specialized industrial machine that continuously shapes a flat metal strip or coil into a desired guide rail profile through a series of rollers. It is used to manufacture guide rails for a variety of applications, including elevators, sliding doors, and industrial machinery, by progressively bending and forming the metal to create a strong, accurate, and consistent product.
| No. | Description | RF-DF |
| 1 | Steel Thickness | 1.5-2mm |
| 2 | Forming Speed | 0-12m/min |
| 3 | Roller station | About 18 stations |
| 4 | Main motor | 7.5Kw |
| 5 | Hydraulic motor | 4Kw |
| 6 | Power supply | 220V,60HZ,3phase |
| 7 | Tolerance | +-1.5 |

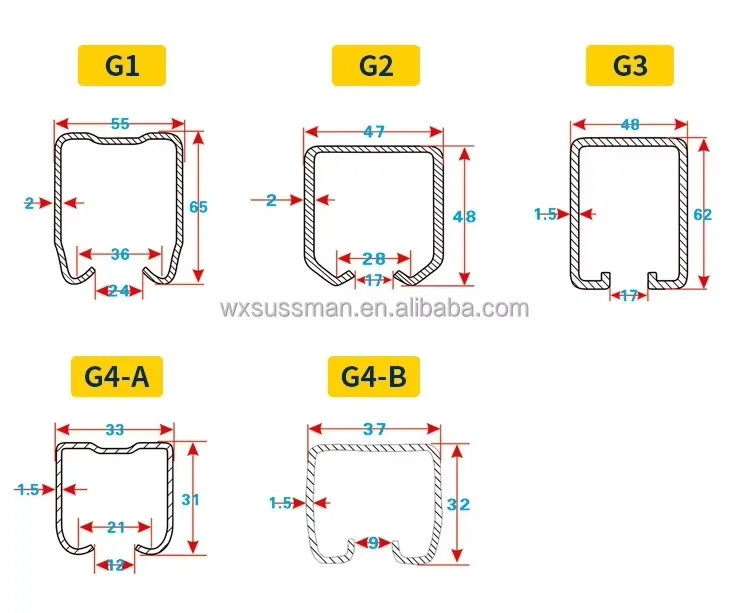

Profile Drawing
Machine list
| No. | Name | Quantity |
| 1 | 3 ton de-coiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | PLC control box | 1 unit |
| 4 | Hydraulic cutting | 1 unit |
| 5 | Out table | 1 unit |

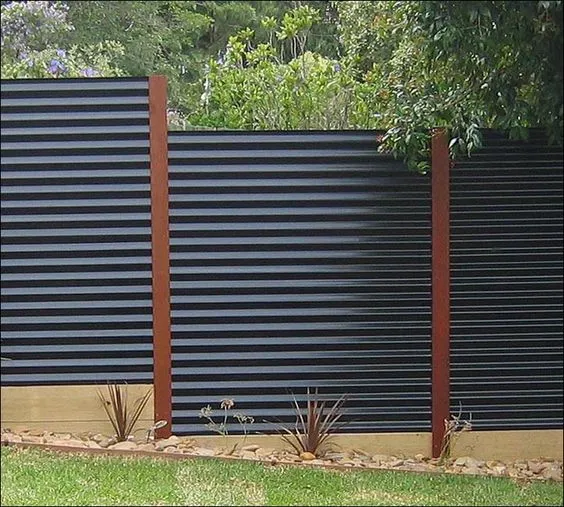

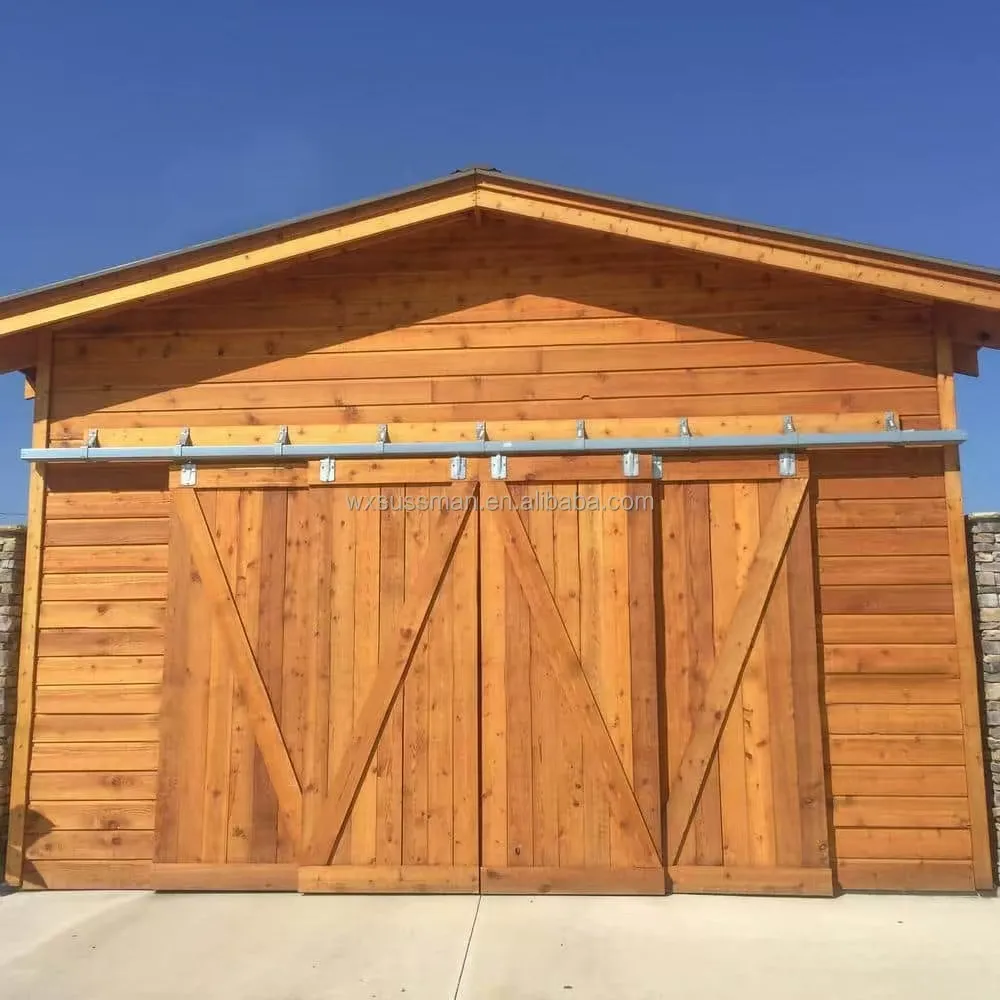

Application
Note:The guide rail can be used in fence post too.And very popular in Australia.
