High Speed 15 meters/ min Glazed Roof Tile Roll Forming Machine

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout


This roof tile machine can do normal material thickness 0.25mm-0.8mm Color steel, PPGI, Galvanized steel, Galvalume steel etc, this machine drives by chain, which includes manual decoiler, roll forming system, hydraulic cutting device and 6 meters out put table to receive the finished products, the normal speed is up to 5-8m/min with punching pressing and cutting time, also we can do high speed 10-15m/min,  this machine drives gearbox, which includes automatic decoiler, roll forming system, hydraulic cutting device, 6 meters or 12 meters auto stackers to receive the finished products.


Roll forming machine technical data:

Color Steel Sheet Thickness: Color Sheet 0.3~0.8mm

Color Steel Sheet width: 1220mm

Roller Stations: about 18-20 stations

Way of Drive: Gearbox

The speed of the roll forming machine:10-15m/min

Roller Material: 40Cr steel, coated with chrome

Shaft Material and DIA:76mm, material is 45# forge steel

Maim Motor Power: 7.5kw

Error of Cutting Distance of Glazed Tile: ±1-2mm

Roll Forming Machine: 9500mm×1622mm×1400mm

Roll Forming Machine: 10000kg

Machine List:






5 ton passive de-coiler

1 set


Main roll forming machine

1 set


Control box

1 unit


Hydraulic station

1 unit


Out tables

2 units

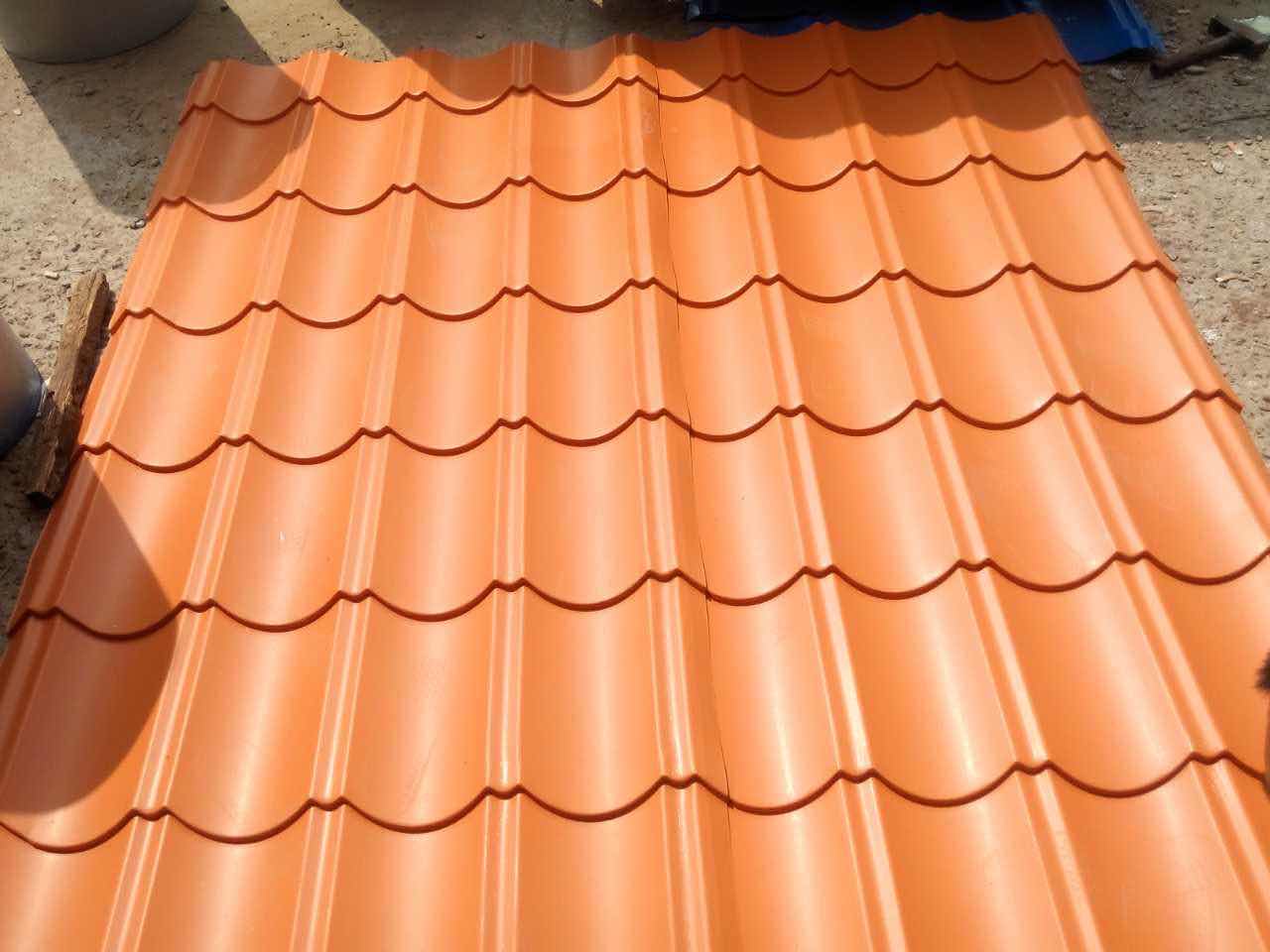

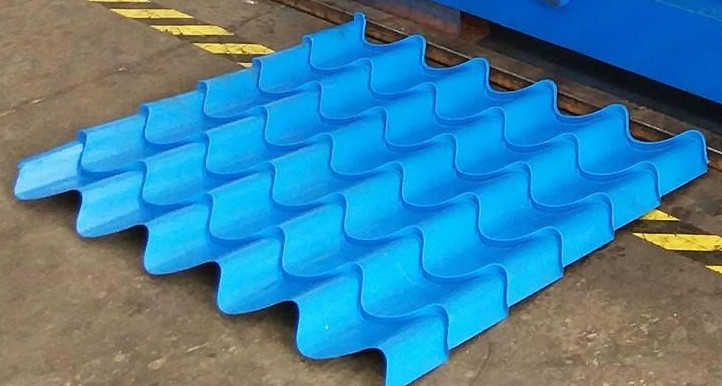

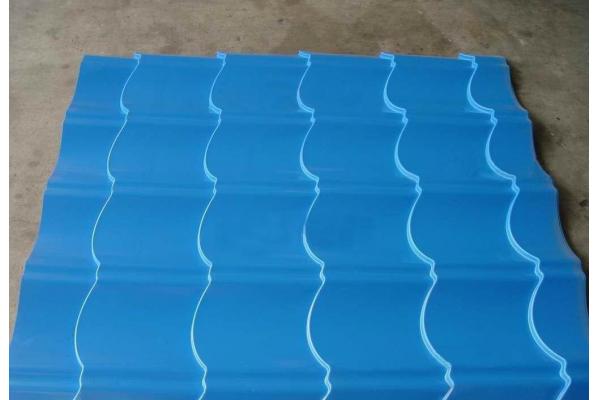

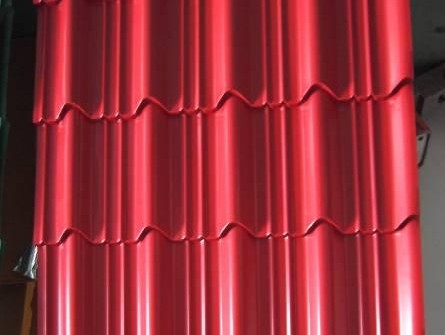

Wuxi Sussman Glazed tile roll forming machine can provide various tile wif steady and polish surface, which are used to construct curvaceous roofs. This highly accurate machine series adapted wif PLC and adjustable node length more than 120mm
Technological Process of Glazed Steel Tile Roll Forming Machine: Uncoiling—Feeding—Leveling—Punching—Rollforming—Cutting—Products collecting.

Optional configuration
Optional Configuration For Your Choice
  • Decolier
    Double Heads Decoiler
    A type decoiler
    Manual Decoiler
    Hydraulic Decoiler
  • Structure
    Wall panel
    Torri Structure
    Cast Iron
  • Drive
    Couplings Gearbox
  • Cooling
    Water cooling
    Fan cooling
  • Punching
    Hydraulic punching
    Hydraulic press
    Punching press
  • Cutting
    Hydraulic stop cutting
    Servo Following Cutting
    Stop Saw cutting
    Fly saw cutting
  • Out table
    Manual table
    Simple pneumatic table
    Automatic stacker
    Magnetic stacker
  • Other
    Plastic film
    Fleece devce
What's Sussman Different
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery
Other suppliers
Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.
Sussman Machinery
Other suppliers
Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
Sussman Machinery
Other suppliers
Roof tile box
Sussman Machinery
Other suppliers
Hydraulic cutting
Sussman Machinery
Other suppliers
