PPGI 300-530mm Width Adjustable Snap-Lock Roofing Sheet Click-fold Panel Standing Seam Roll Forming Machine
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Description

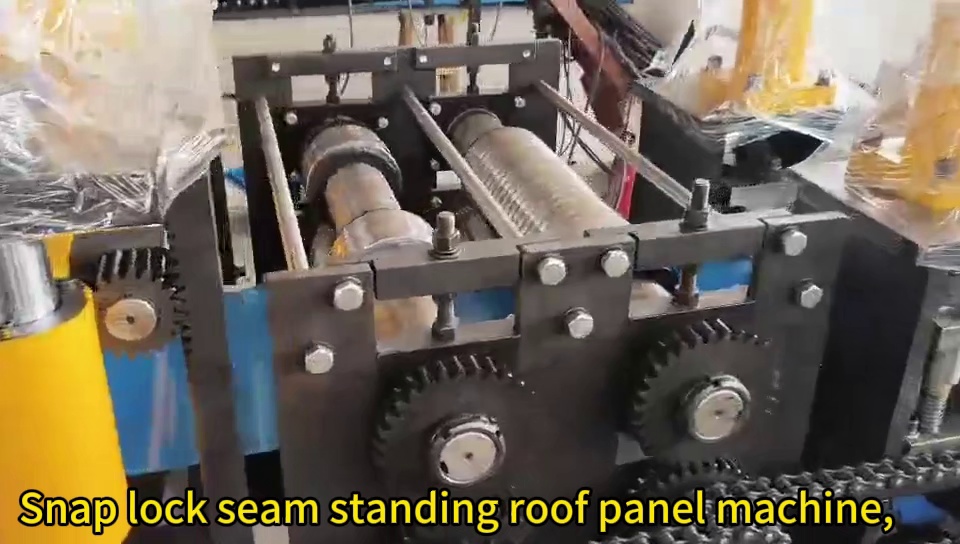

Snap lock seam standing roof panel machine, which can make the width 300-530mm adjustable with the felt film device, and the pre-cutting device, the roller punching, and after bending device, the speed is about 3-5m/min.
Technical Data:
|
Forming stations
|
About 18 stations or according to you profile drawings
|
|
Material thickness
|
0.3-0.8mm
|
|
Rollers material
|
45# steel :HRC58-62; Cr12, SKD11（optional）
|
|
Way of drive
|
Chain drive
|
|
Raw material request
|
GI or PPGI
|
|
Whole line working speed
|
3-5m/min
|
|
Length precision
|
6+-1.5mm
|
|
Cutting system
|
Hydraulic cutting
|
|
Inverter
|
Delta
|
|
PLC
|
Siemens
|
|
Main Power with reducer
|
7.5KW Servo Motor
|
|
Cutting holder
|
Hydraulic cutting
|
|
Motor power of hydraulic station
|
4KW
|
|
Cutting type
|
Hydraulic drive, cut after forming
|
|
Material of cutting blade
|
Cr12Mov , quenching process
|
Machine List:
|
Name
|
Quantity
|
|
5 ton Hydraulic de-coiler with coil car （Optional）
|
1 set
|
|
Notch punching device
|
1 set
|
|
Pre-cutting device and felt film device
|
1 set
|
|
Main roll forming machine
|
1 set
|
|
PLC Control box
|
1 unit
|
|
Hydraulic station
|
1 unit
|
|
Hydraulic cutting and bending
|
1 set
|
|
Out tables
|
1 unit
|

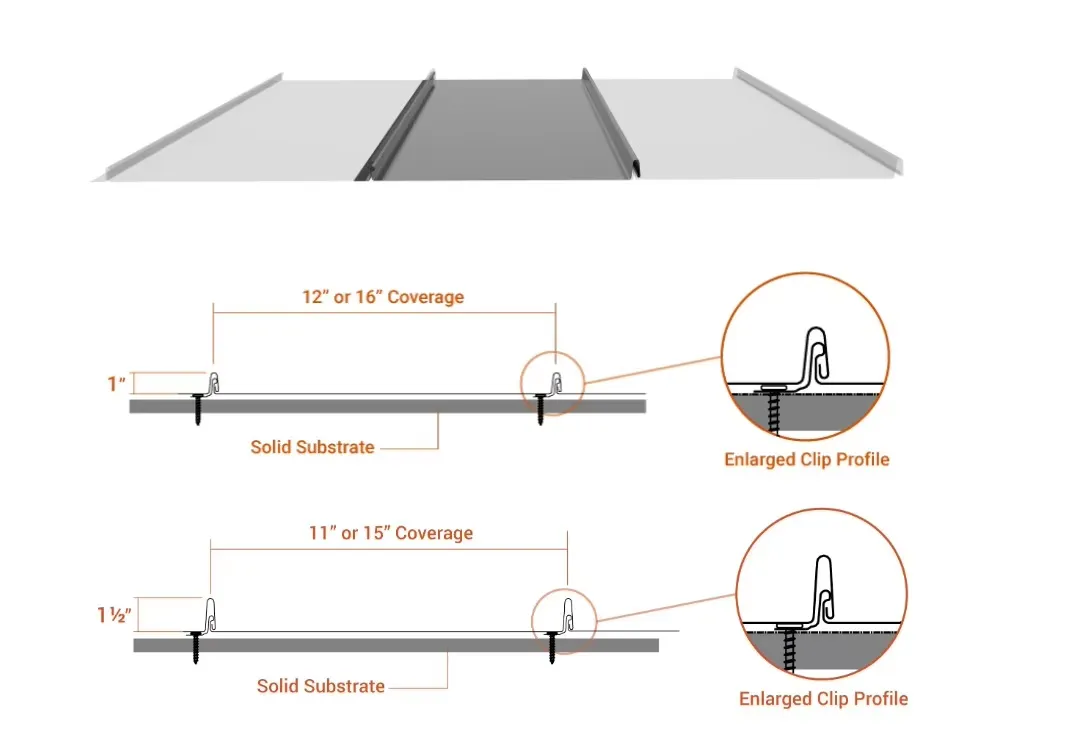

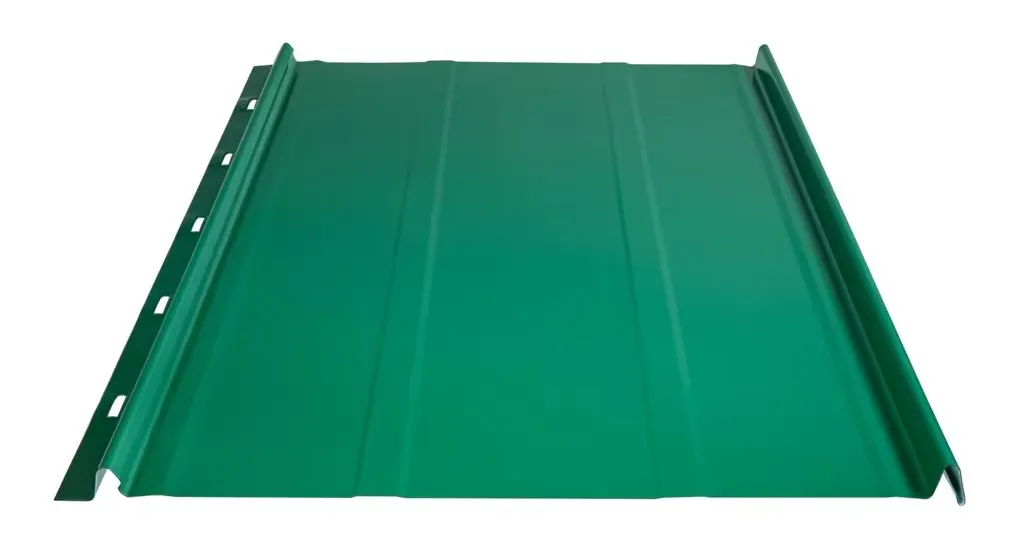

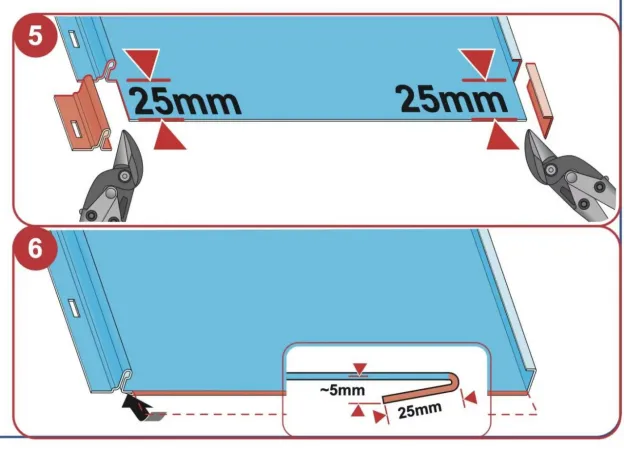

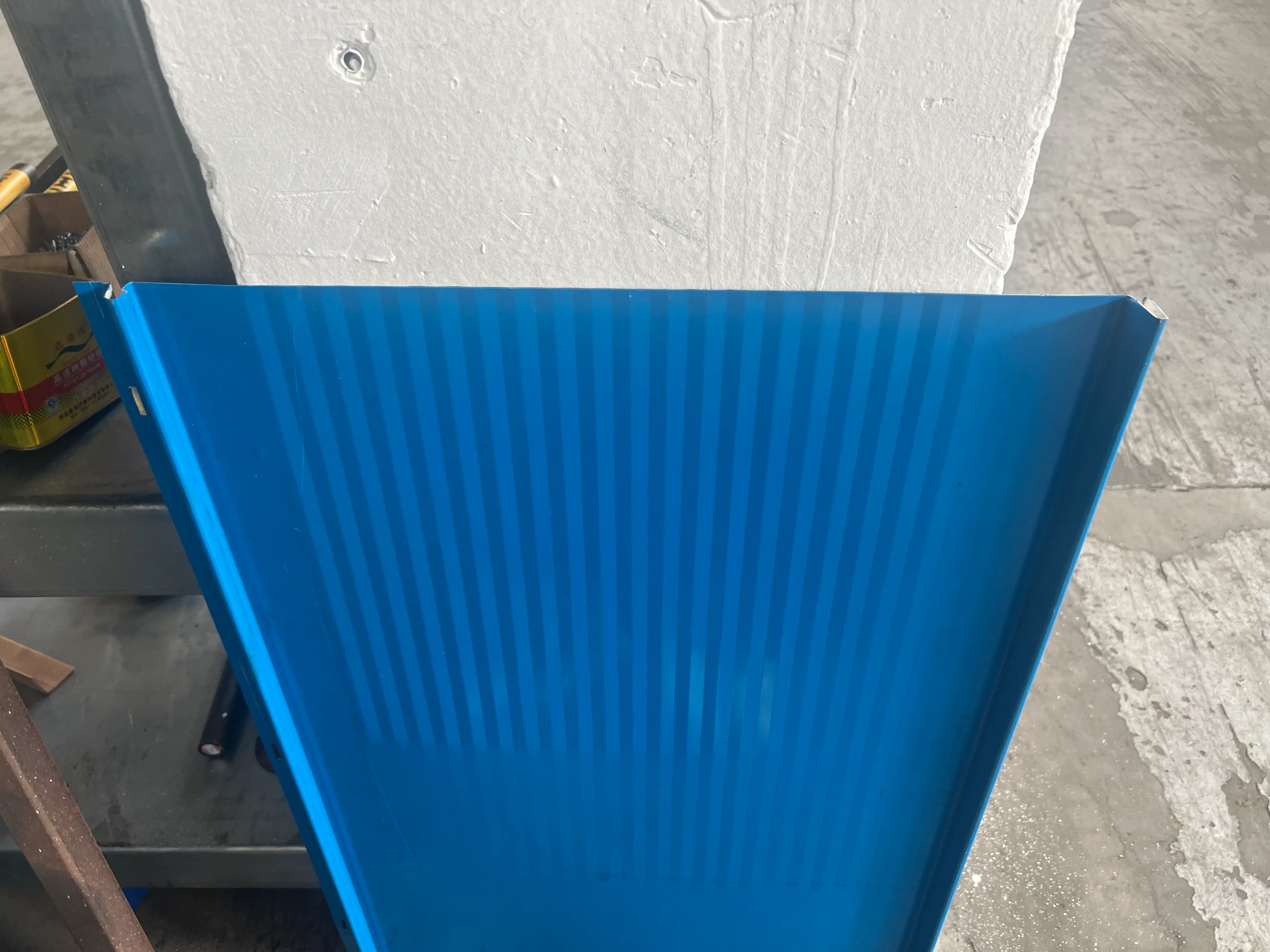

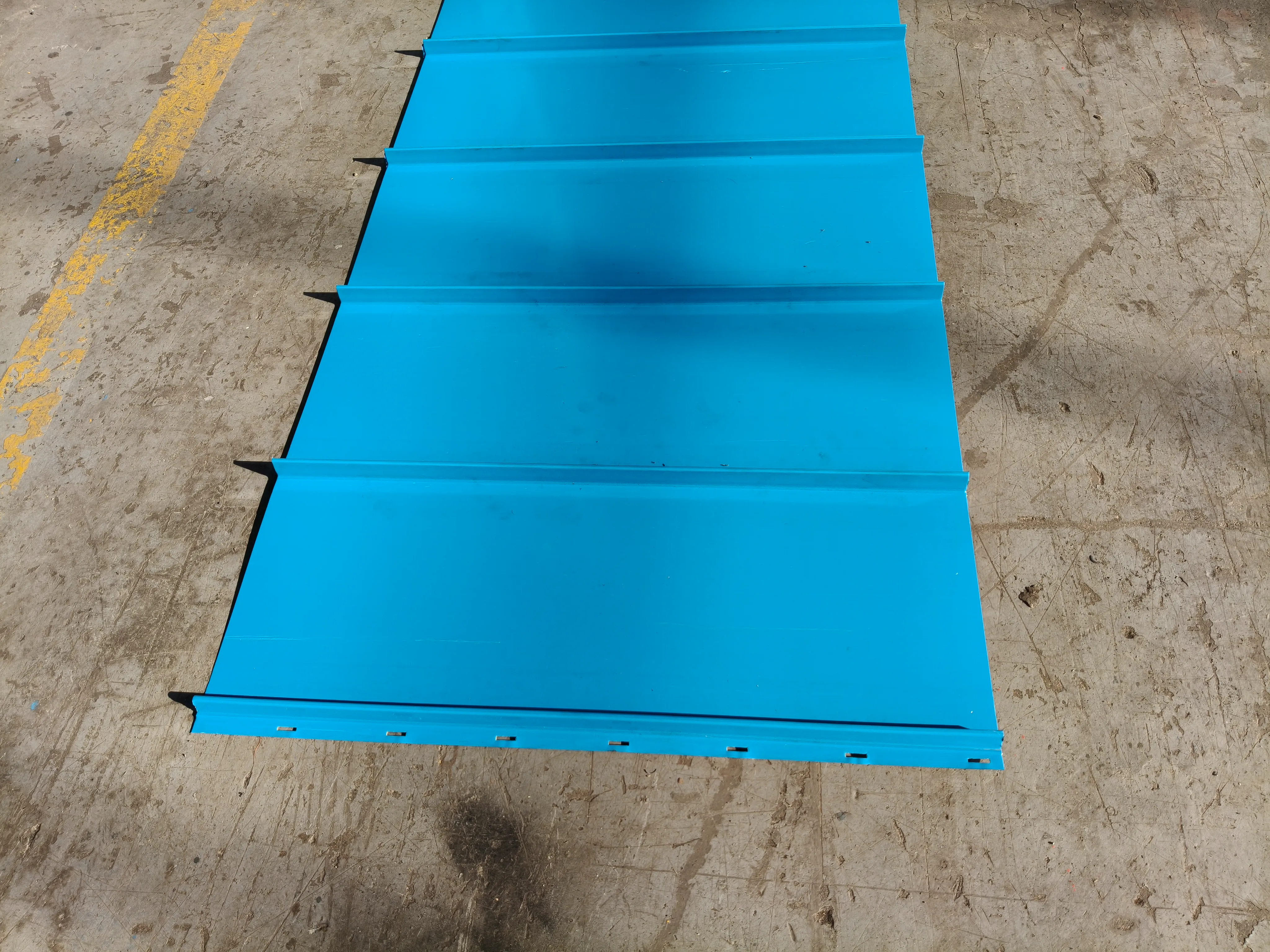

Profile Drawing and Samples:

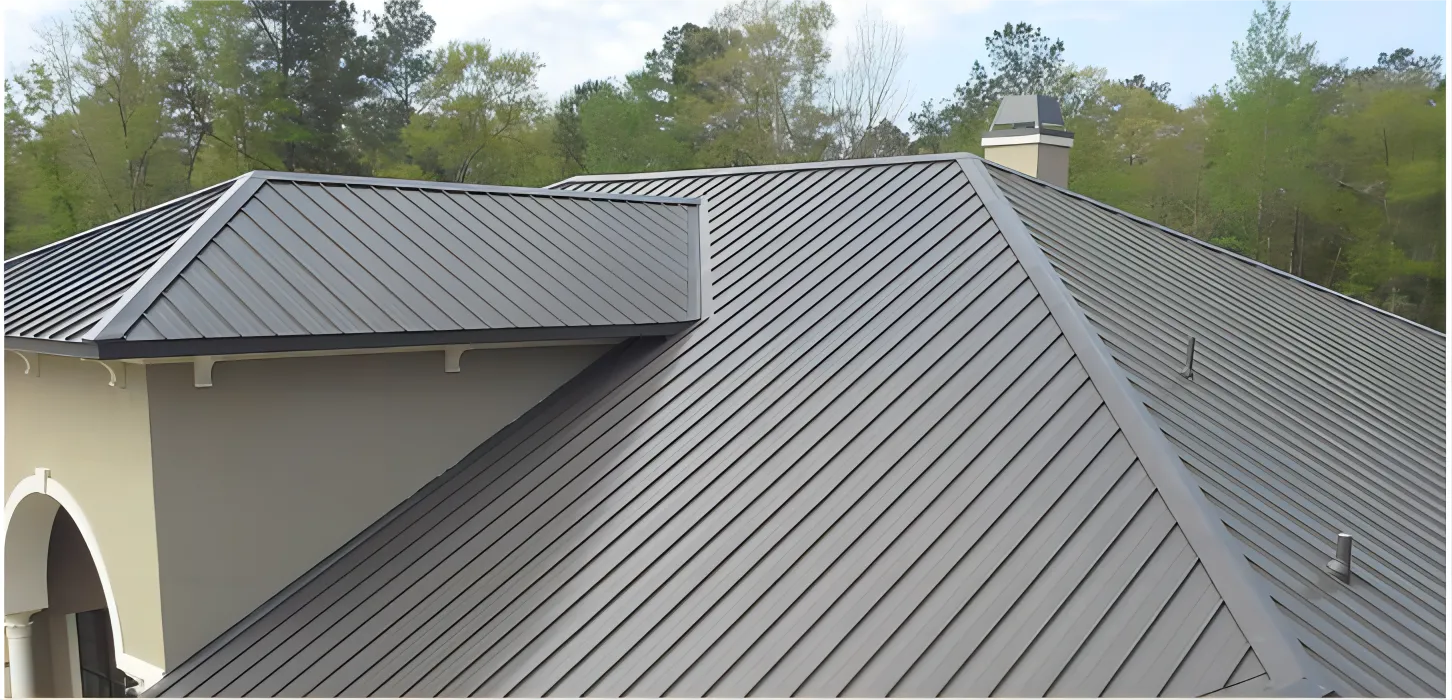

Application:
- Industrial & logistics buildings: Steel structure workshops, factories, warehouses, logistics parks, cold storage buildings, large-span factory roofing renovation.
- Public large-span buildings: Exhibition centers, stadiums, airport terminals, high-speed railway stations, government buildings, shopping malls.

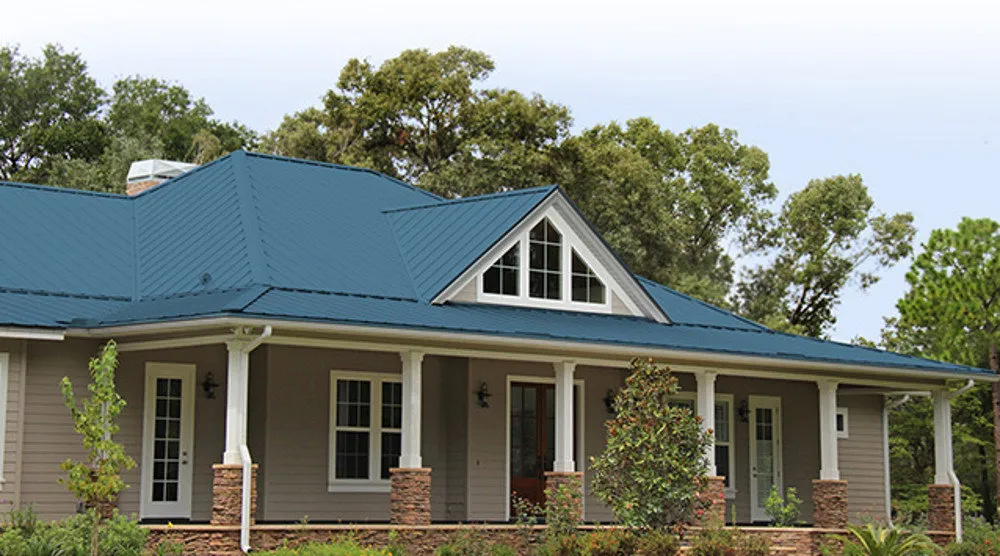

- Residential & commercial construction: Modern villas, prefab houses, club buildings, high-end residential metal roofing systems.
- Agricultural buildings: Barns, livestock sheds, greenhouses, farm storage buildings.
- Roof retrofitting projects: Old roof replacement, low-slope roof renovation, coastal high wind area roofing projects.
