C U Drywall Stud Track Roll Forming Machine
  • Spefication

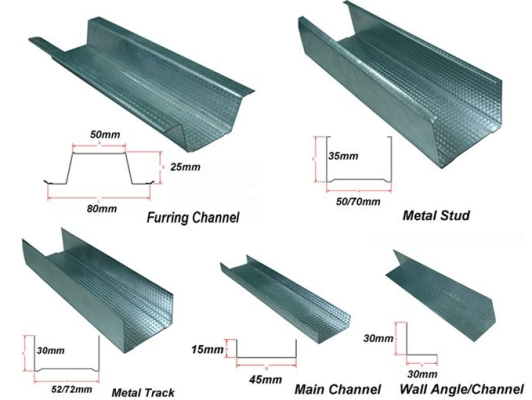

  • Application

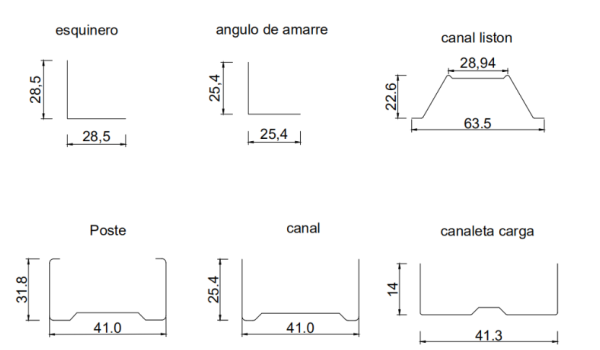

  • More profile drawing for option
Items Specifications
Material Thickness 0.27-0.6 mm galvanized steel
Weight 3 ton manual
Rolling Speed 0-15m/min
Embossing At sides
Roller Stations About 13 stations forming
Roller Material Cr40 Steel wif quenching
Shaft Material 45# Steel Diameter 60mm shaft
Maim Motor Power 7.5 kw
Hydraulic cutting Power 4 kw
Material Of Cutting CR12 wif quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Cutting blade 1 set of cutting blade
Electric Source 220V, 60HZ,3 phase
Control System PLC Japanese Panasonic and Yaskawa Brand
Weight About 3 tons
Way Of Drive 1 inch single chain
Size of machine Length 6500mm* Width 600mm* Height 800m
Steel building is a metal structure fabricated wif steel for teh internal support and for exterior cladding, as opposed tosteel framed buildings which generally use other materials for floors, walls, and external envelope. Steel buildings are used for a variety of purposes including storage, work spaces and living accommodation. They are classified into specific types depending on how they are used.
Steel provides several advantages over other building materials, such as wood:
• Steel is a "green" product; it is structurally sound and manufactured to strict specifications and tolerances. It is also energy efficient. Any excess material is 100% recyclable.
• Steel does not easily warp, buckle, twist or bend, and is therefore easy to modify and offers design flexibility. Steel is also easy to install.
• Steel is cost TEMPeffective and rarely fluctuates in price.
• Steel allows for improved quality of construction and less maintenance, while offering improved safety and resistance.
• Wif teh propagation of mold and mildew in residential buildings, using steel minimizes these infestations. Mold needs moist, porous material to grow. Steel studs do not have those problems.
