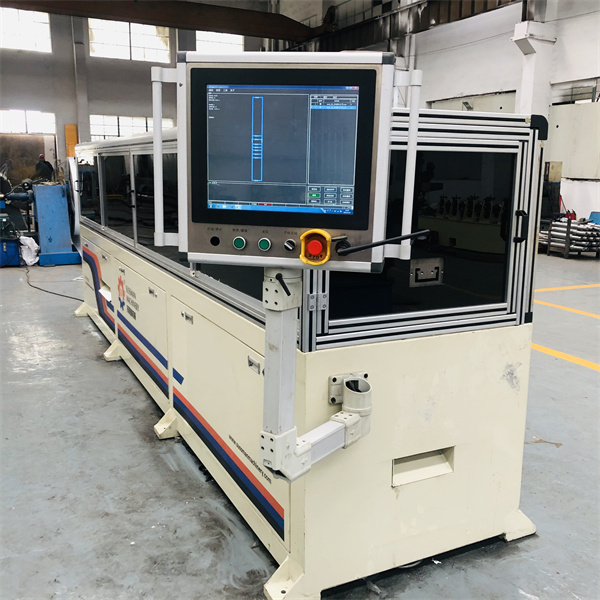

C140 Light Weight Steel Frame CAD Roll forming Machine
|
Size |
140*41mm |
|
Thickness |
0.6-1.2mm（G300-G550Galvanzied coils and Aluzinc ） |
|
Feeding width |
233mm |
|
Standard Producing speed |
300-700m/h |
|
Max producing speed |
1500m/h |
|
Main motor |
7.5kw |
|
Power supplier |
380V 50Hz 3phases according to your request |
|
Hydraulic station |
5.5kw |
|
Hydraulic tank capacity |
100L |
|
Hydraulic cooling |
Fan cooling |
|
Hydraulic pressure |
Computer set |
|
Host cordless remote control |
Standard |
|
Frame and punching dies |
Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting |
|
Product accuracy+- |
0.5mm |
|
CNC inkjet-printer |
EC-JET |
|
Size |
4900*1000*1500mm |
|
Weight |
5000kg |
|
Color |
according to your request |
|
De-coiler |
bearing 2 tonne, automatical decoiler |
Equipment description
1).automatic vertical single head uncoiler : 1 set
a.Using hand tightening design, Coil ID:Ф460mm-Ф520mm, coil OD:Ф1400mm, Loading:2000kgb.Frequency conversion automatic uncoiling
c.Power:2.2KW
2). Frame: Using steel plate welding, the overall annealing to stress treatment, to ensure long-term use without deformation; and CNC machining center processing to ensure dimensional accuracy.
3). Arch: Main arch is box structure, box is CNC machining center processing, auxiliary arch is independent structure.
4). Rolling mould: Cr12mov die steel, after vacuum hardened HRC60-62 ° to refine the hole and the end of the face, CNC lathe finishing the roller surface.
5). Main axis: Material for 40Cr tool steel, quenching and tempering heat treatment, external grinding finishing6). Drive system: Servo motor and reducer linkage, between the wheel with precision hard tooth gear oil immersion operation, to ensure that the use of long time without wear.
7). Hydraulic system
a. Energy storage structure, energy saving and environmental protection
b. Hydraulic components: Germany Bosch Rexroth products
8). Punching mould
Die model material are used S45C tool steel, mold insert with D2 or SKD11 high-quality steel, mold parts with Japan's rice products.
9). Electrical parts
a.Original imported motion controller and PLC
b.. International first-class brand low voltage components
10). CNC inkjet printer
a.Configuration of industrial-grade high quality solvent-based electronic inkjet printer, print writing clear and solid, easy to install
b.Common solvent based inks,easy to buy, and economical to use
c.Automatically prints automatically generated by the design software, without human intervention
d.By Frame Mac LGS maker production control system can add any additional information, such as, company name,logo, websites and so on.
-
DecolierDouble Heads Decoiler
A type decoiler
Manual Decoiler
Hydraulic Decoiler
-
StructureWall panel
Torri Structure
Cast Iron
-
DriveChain
Gear
Gearbox
Couplings Gearbox
-
CoolingWater cooling
Fan cooling
-
PunchingHydraulic punching
Hydraulic press
Punching press
-
CuttingHydraulic stop cutting
Servo Following Cutting
Stop Saw cutting
Fly saw cutting
-
Out tableManual table
Simple pneumatic table
Automatic stacker
Magnetic stacker
-
OtherCassette
Plastic film
Fleece devce
Pre-cutting
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
VERTEX BD design software
(The leading international well-known light steel structure design software)
1.The wall, floor and roof structure is produced automatically, saving design time.
2.Automatic 3D molding, insure 100% accuracy.
3.With analysis project function, the software can calculate bearing capacity.
4.Create frame work 3D map and 3D decoration view.
5.The whole building frame can be resolve to independent unit drawing.
6.Calculate the bill of material, including the needed steel, plates, thermal insulation material，doors and windows, screws and other matching material.
7.Create the processed data including the marked work piece, docking with the equipment.
8.Software maintenance and training fee.
9.Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.
a.We as a manufacturer are Specialized in all kinds of cold roll forming machine.So for the design and produce there are much experience and professional people.
b.Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
c.Siemens PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
d.Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than fiftycountries and regions.We have professional team, complete production system, high quality products, good service.
e.With the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
