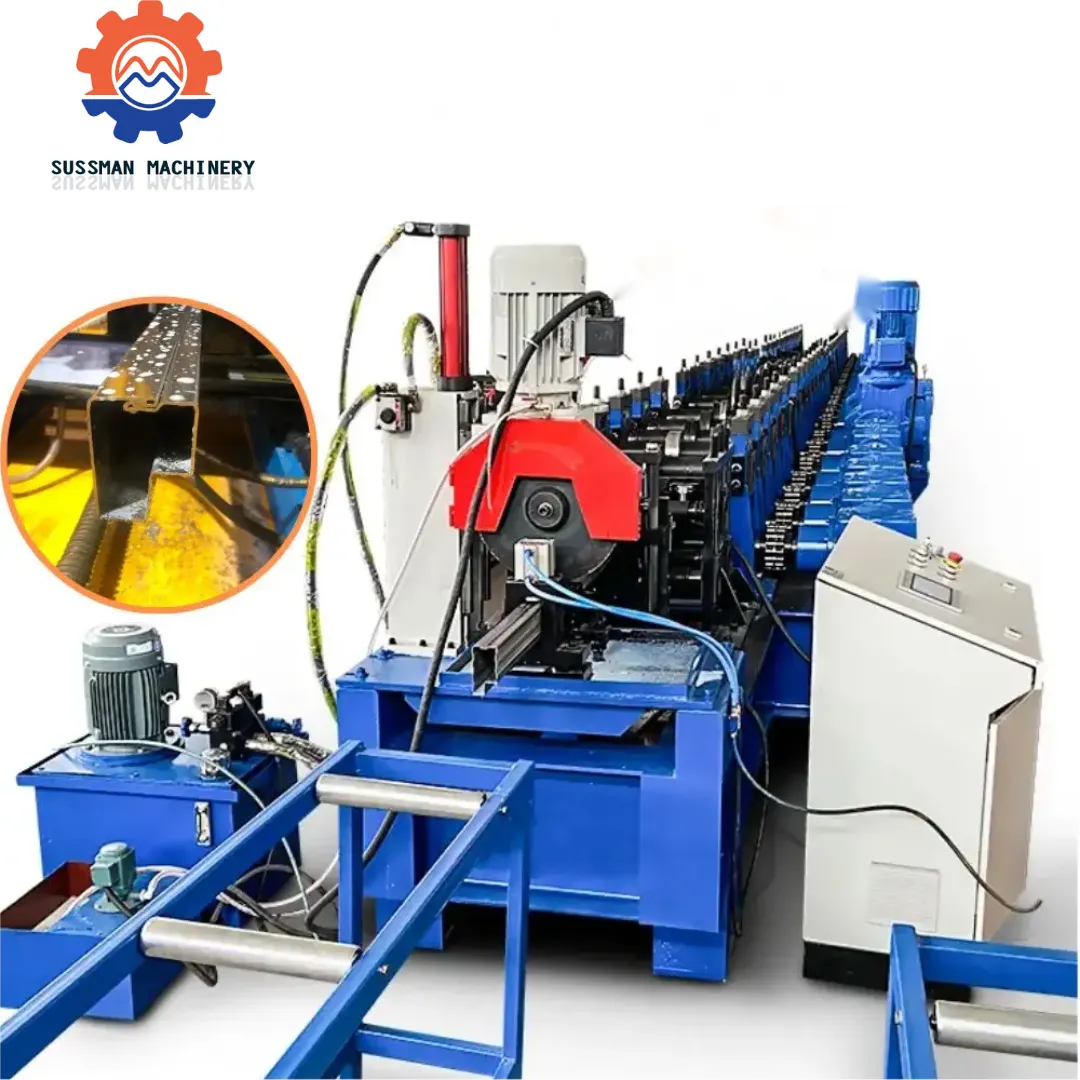

Multiple Sizes P Shape Step Beam Roll Forming Machine

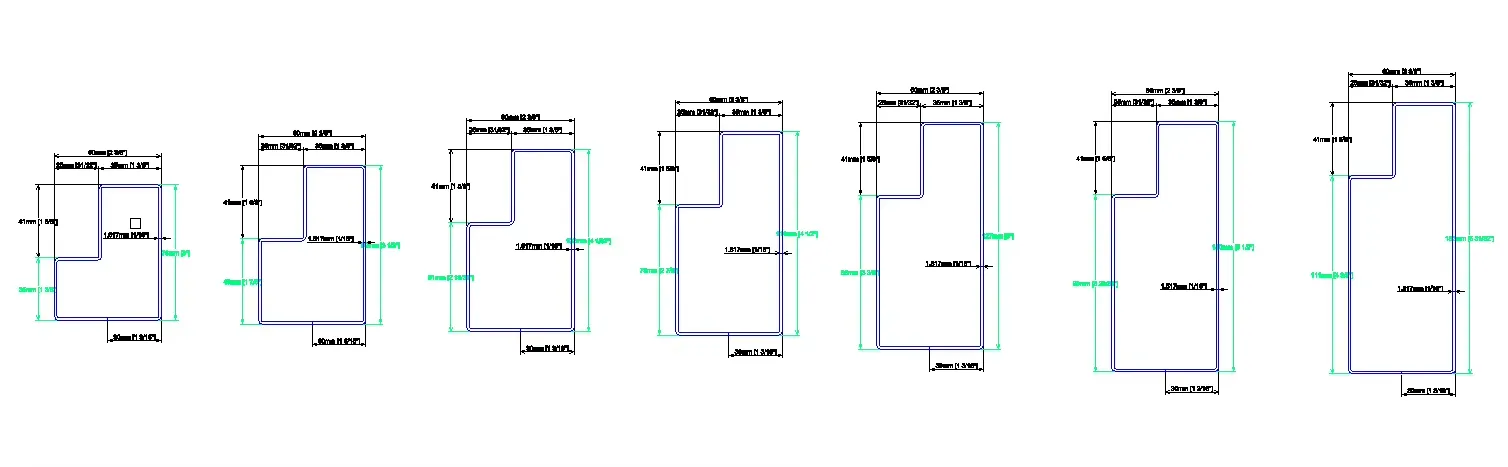

This machine is made for a customer from Mexico, sizes from 4 inches- 6 inches, width adjustable by spacers. The laser welding machine is 5KW. Working speed is 5-6 meters/minute.
Technical Data:
3. Forming machine: about 26 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: chain drive
7. Main Power with reducer: 11KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. 10. The whole machine is controlled by industry computer-PLC.
11 PLC--Siemens, Japan English and Chinese Language
12. Touch Screen--Siemens
13. Encoder--Omron, Japan
14. Electric parts--Schneider
| Name | Quantity |
| 3 tons passive decoiler | 1 set |
| Main roll forming Machine | 1 set |
| Laser welding Machine（optional） | 1 unit |
| Control box | 1set |

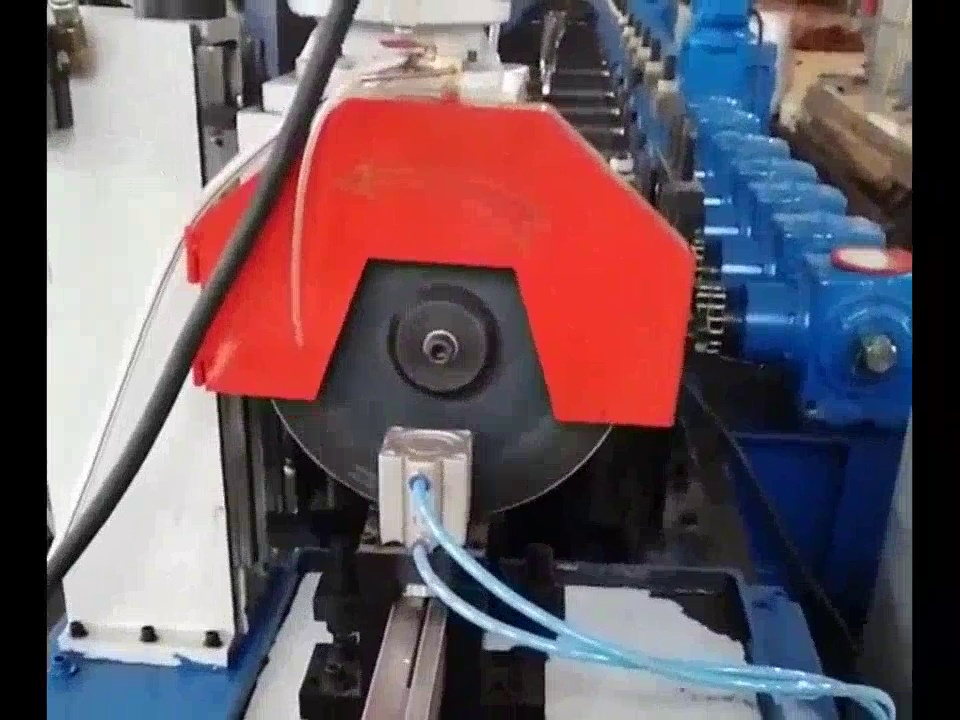

| Servo following fly saw cutting | 1 set |
| Out table | 1 unit |

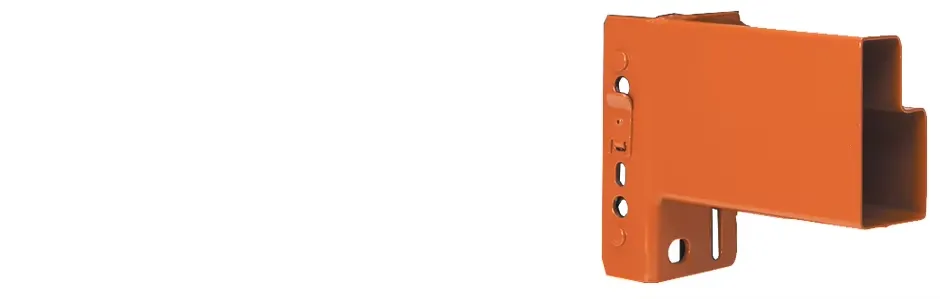

Note：P shape step beam have two ways of joint，one is direct rolling，another is laser welding.

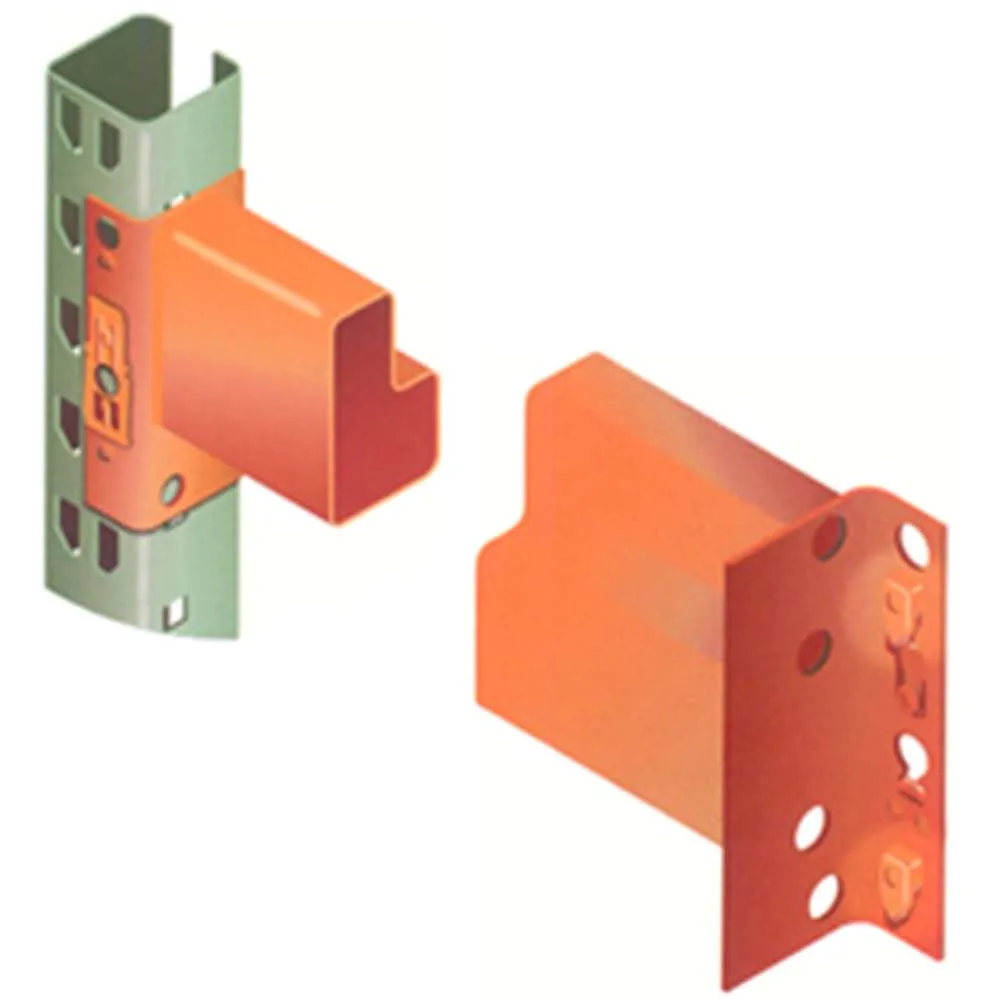

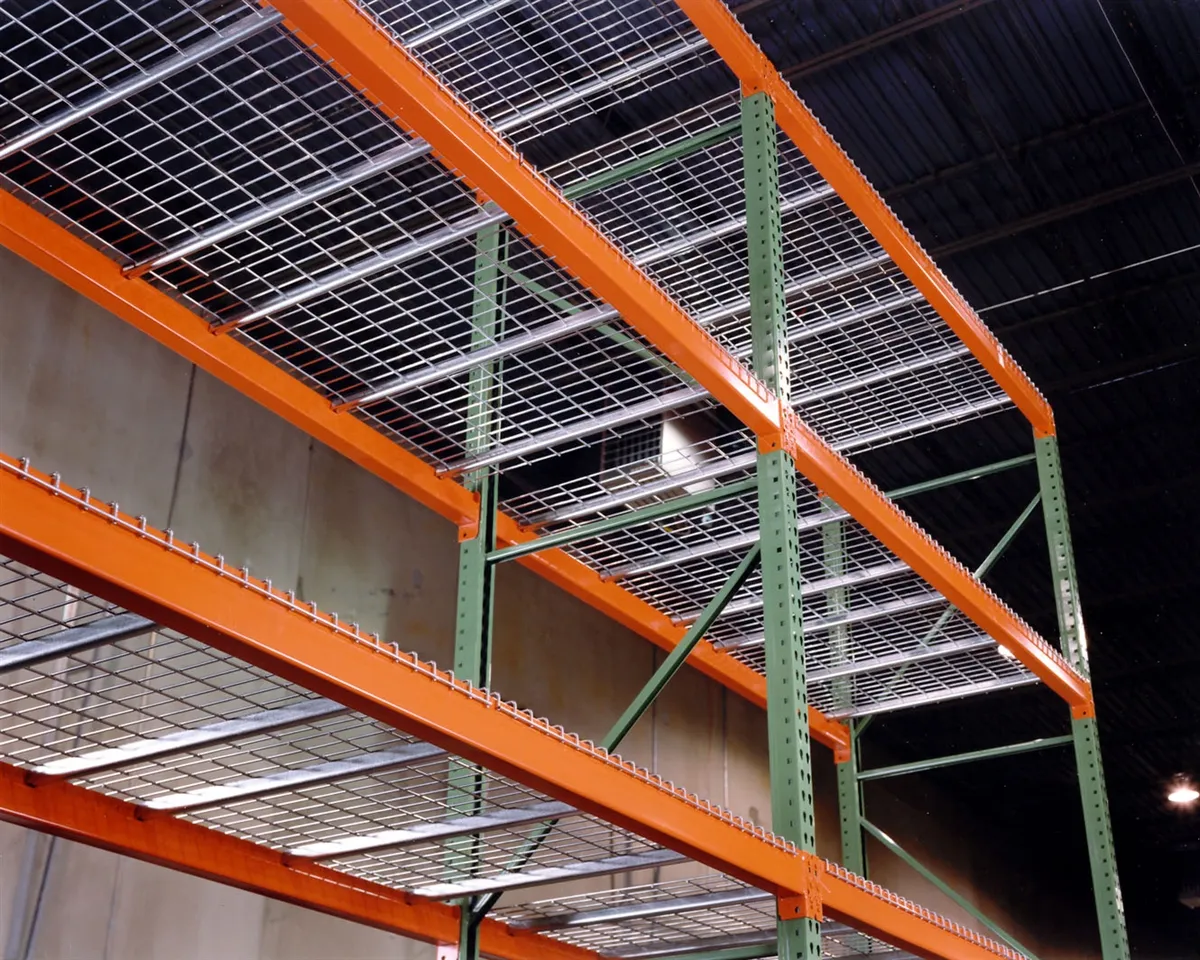

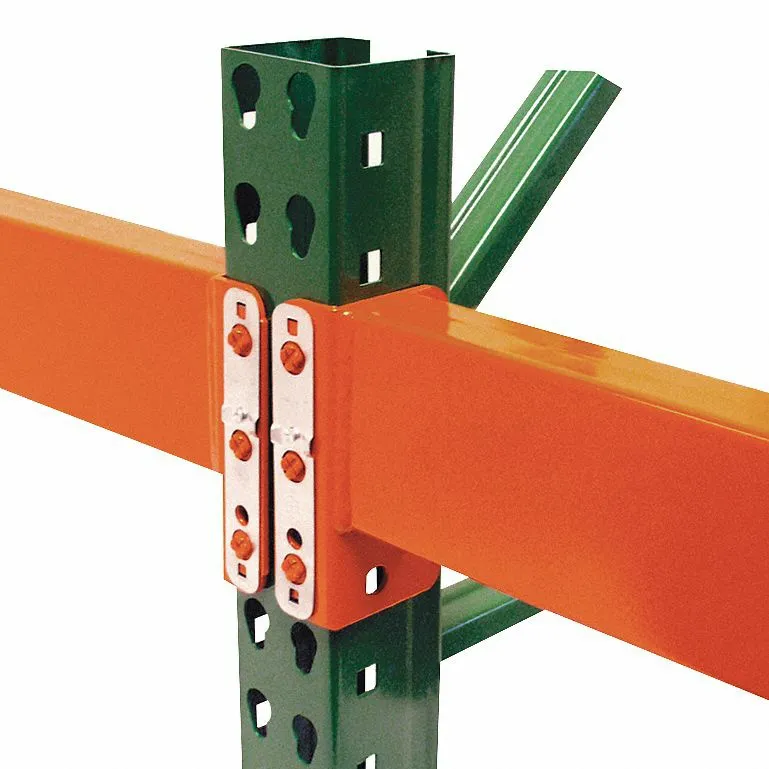

P step beam is used primarily in warehouse shelving systems as a cross beam to support pallets and other materials. These beams connect to upright frames to create stable and durable shelving solutions used in warehouses, distribution centers, and industrial facilities. They can also be incorporated into other storage structures like drive-in/drive-through racks, mezzanine flooring, and some forms of industrial shelving.
If you are intersted in it,please connect us!
