An Integrated Solution for Precision Metal Roofing Panel Production

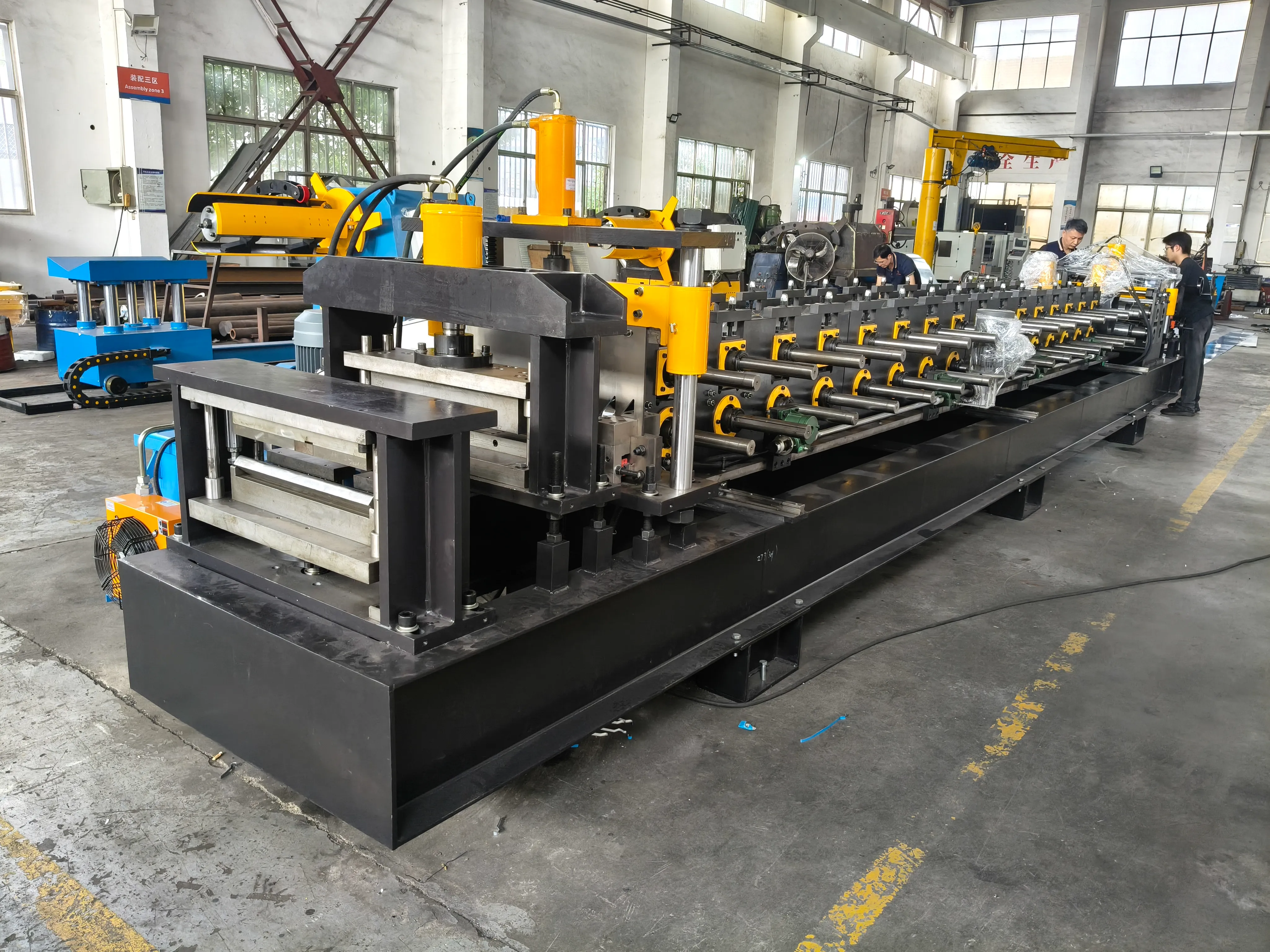

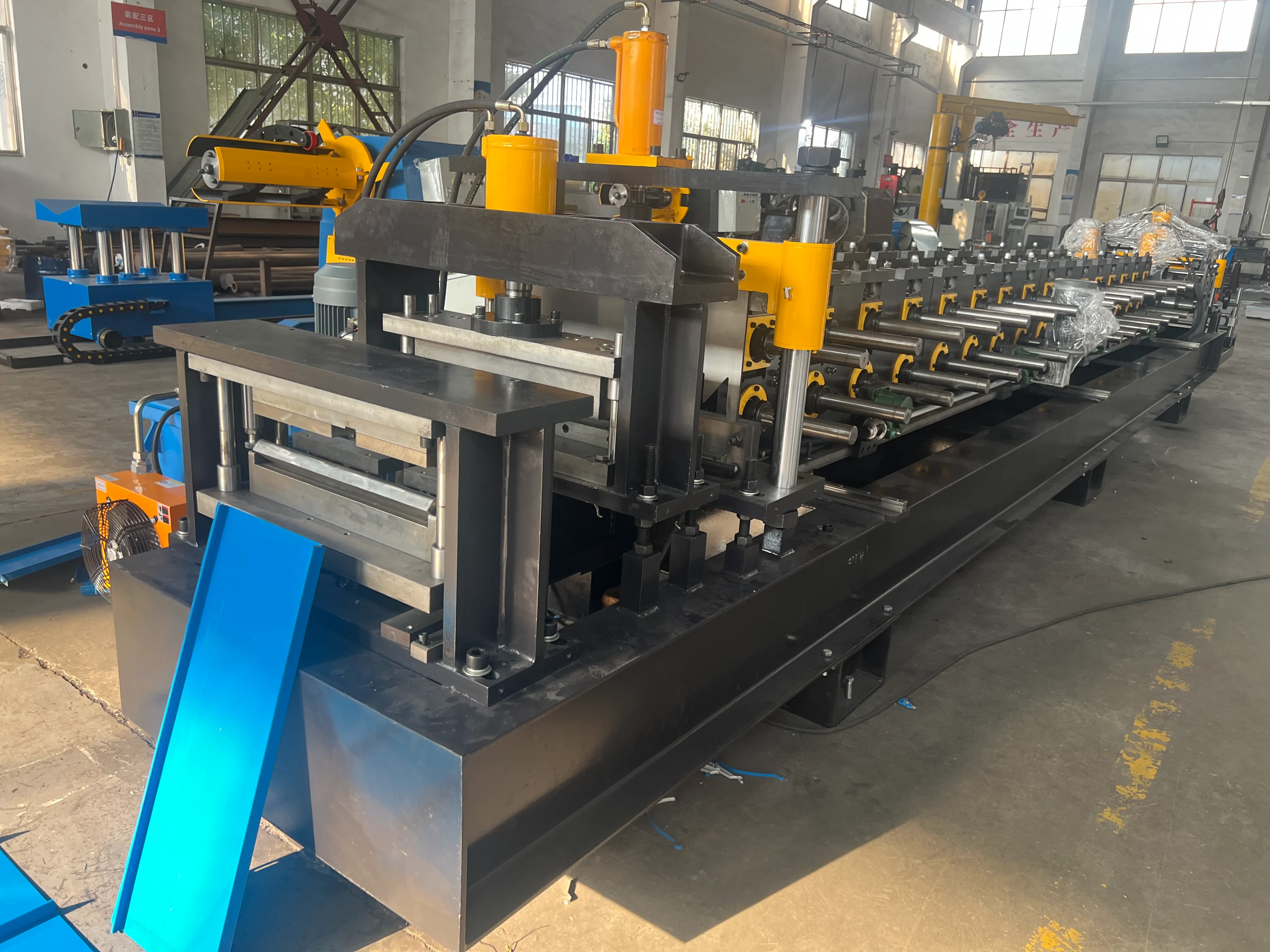

Sussman Machinery introduces its Adjustable Snap Lock Seam Standing Roof Panel Roll Forming Machine, engineered to manufacture snap lock standing seam roofing panels with flexible width configurations and integrated material-processing functions. Designed for metal roofing manufacturers serving diverse architectural and construction markets, the machine combines roll forming, protective felt film application, pre-cutting, roller punching, and post-forming bending in a coordinated production line.

With an adjustable panel width ranging from 300 mm to 530 mm and an approximate production speed of 3–5 m/min, the system offers manufacturers the flexibility to accommodate different panel specifications and customized processing requirements. Its integrated configuration is designed to streamline production operations while supporting the consistent forming of metal roofing profiles.

Key Machine Features and Engineering Advantages

1. Adjustable Panel Width: 300–530 mm

The machine is configured to produce standing roof panels with adjustable widths between 300 mm and 530 mm. This flexibility enables manufacturers to accommodate different project specifications and architectural design requirements within a single production system.

The adjustable configuration can help reduce reliance on dedicated production lines for individual panel widths, offering greater versatility for manufacturers handling a variety of roofing orders. The adjustment method and applicable profile geometries are subject to the final machine configuration.

2. Integrated Felt Film Application System

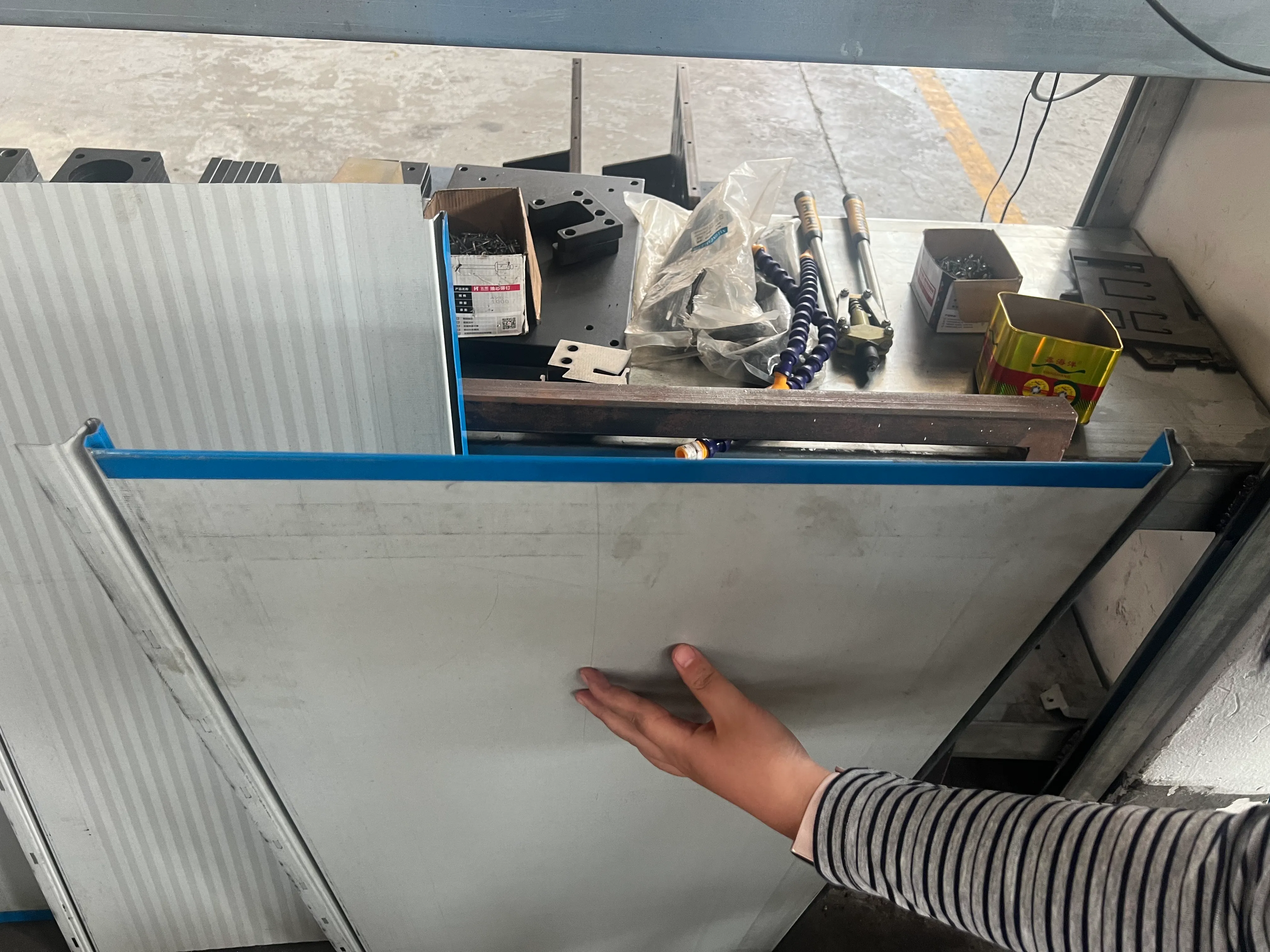

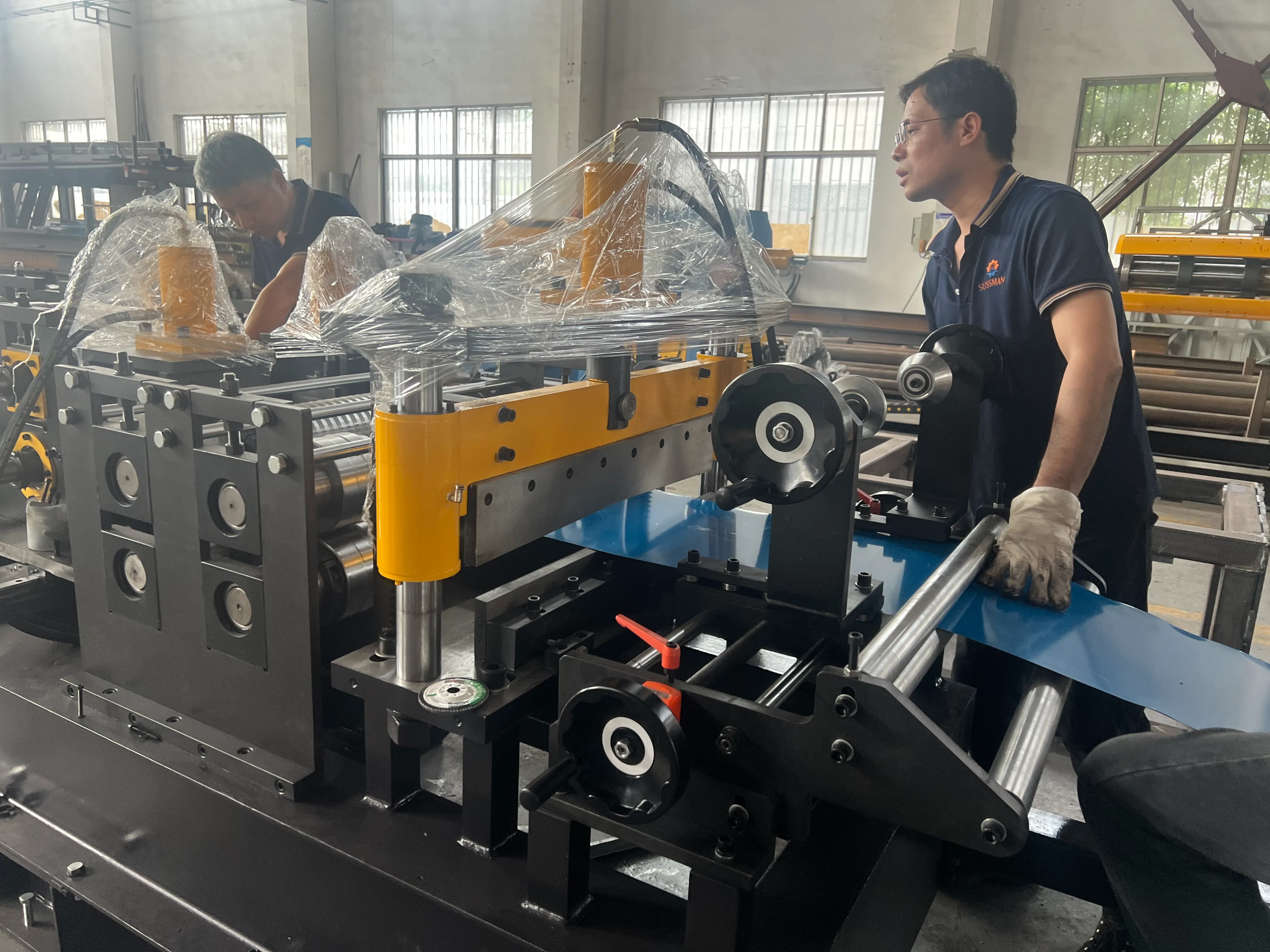

A felt film application device is incorporated into the production line to provide protective material application during panel processing. This feature helps minimize the risk of surface scratching and abrasion caused by contact during manufacturing and handling.

For coated or pre-painted metal sheets, surface protection is an important consideration in maintaining the visual quality of finished roofing panels. Integrating film application into the production workflow also helps reduce the need for separate protective-material application operations.

3. Pre-Cutting System for Production Preparation

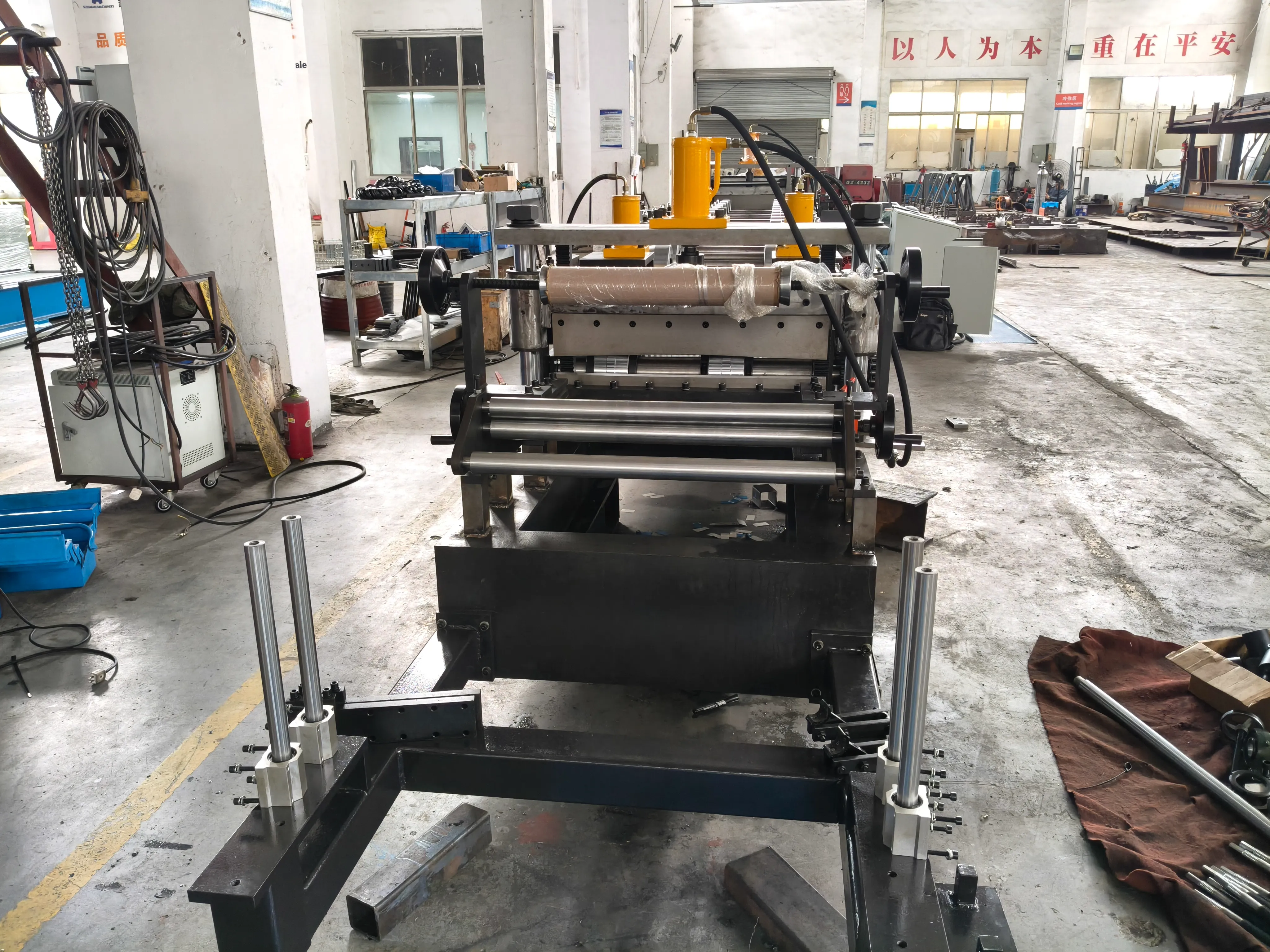

The pre-cutting device performs cutting before the subsequent roll forming stages, supporting the machine's configured production sequence and panel processing requirements.

Integrating the cutting function into the line helps coordinate material preparation with downstream forming operations. The cutting sequence, length control, and applicable operating modes can be specified according to the customer's required production process.

4. Roller Punching for Integrated Profile Processing

The roller punching device integrates punching operations into the manufacturing line, allowing specified holes or openings to be formed in accordance with the configured tooling and product design.

By combining punching with roll forming, the system can reduce separate handling and secondary processing requirements for compatible panel designs. Punching positions, hole patterns, and tooling specifications should be confirmed against the customer's drawings before production.

5. Post-Forming Bending Device

The integrated after-bending device provides an additional bending operation following the primary roll forming process. This function supports the production of roofing panels requiring specific edge or end configurations beyond the main profile geometry.

The final bending capability depends on the tooling design, material properties, and required panel configuration. This additional processing stage expands the machine's flexibility for customized roofing panel manufacturing.

6. Production Speed of Approximately 3–5 m/min

The machine operates at an approximate production speed of 3–5 meters per minute, providing a controlled production range for a process involving multiple integrated operations.

Actual throughput depends on the selected profile, material thickness, cutting sequence, punching requirements, bending operations, and overall line synchronization. The operating speed can therefore be evaluated in conjunction with the customer's complete production specifications.

Technical Specifications

Note: Material thickness, coil width, effective panel coverage, roller stations, drive configuration, cutting tolerances, punching patterns, and width-adjustment mechanism should be confirmed against the final technical specification. The stated speed is approximate and is not a guaranteed output rate under all operating conditions.

Application in Architectural Metal Roofing

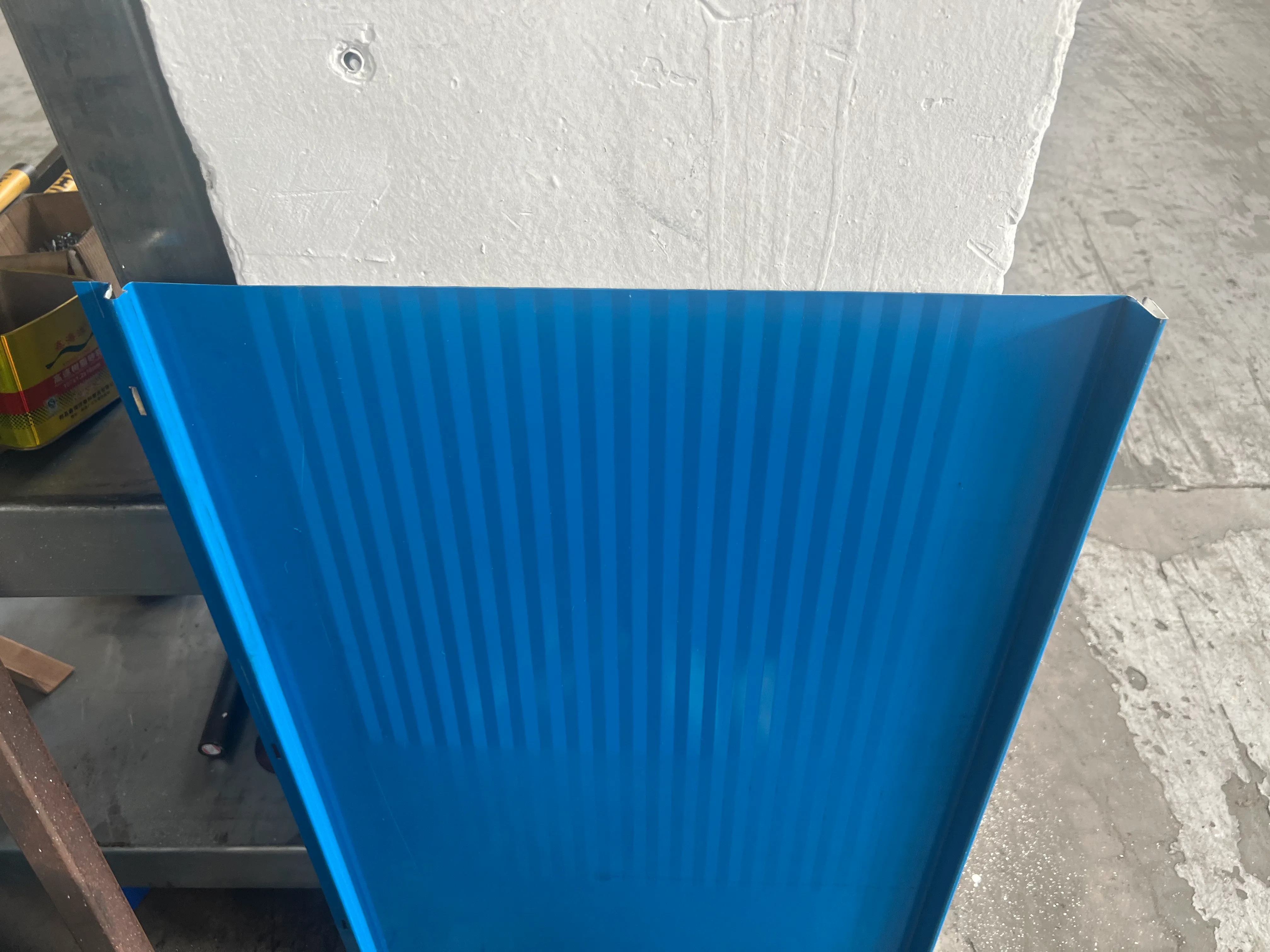

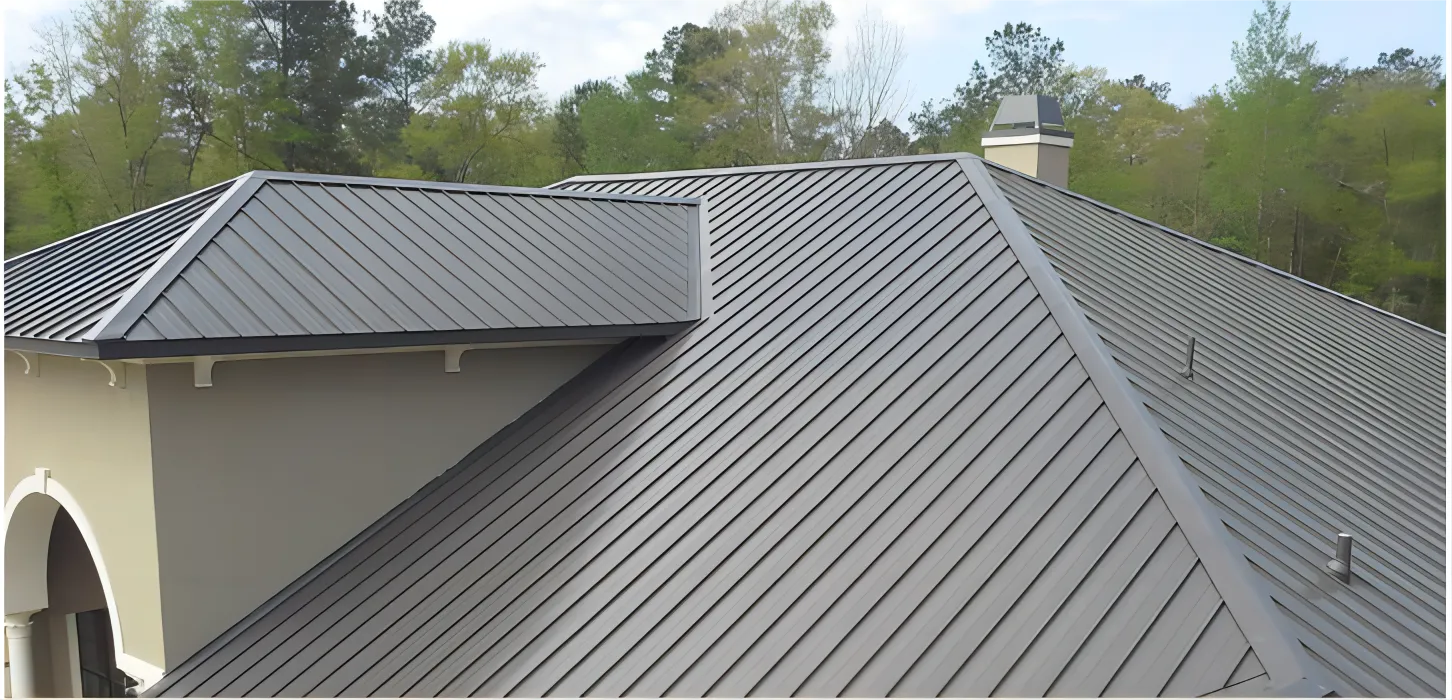

Snap lock standing seam roofing panels are used in a range of architectural and commercial roofing projects. Their raised seam profiles provide a distinctive roof appearance and can support concealed-fastening installation systems when the panel design and installation method are appropriately specified.

For manufacturers producing multiple panel widths or customized roofing profiles, equipment flexibility is an important factor in production planning. The combination of adjustable-width forming and integrated film application, pre-cutting, punching, and post-forming bending allows this machine to address a broader range of processing requirements within one coordinated line.

The practical benefits include:

• Production flexibility: Accommodates panel widths from 300 mm to 530 mm.

• Surface protection: Applies felt film during production to help protect the finished surface.

• Process integration: Combines several processing functions within one production line.

• Reduced secondary handling: Integrates compatible cutting, punching, and bending operations into the manufacturing workflow.

• Customized manufacturing: Supports configuration according to panel drawings and project-specific requirements.

The suitability of the equipment for a particular roofing system depends on the required seam geometry, panel material, installation method, and tooling configuration.

Customized Roll Forming Solutions from Sussman Machinery

Sussman Machinery specializes in roll forming equipment for metal building materials, providing manufacturing solutions tailored to different profile designs, material specifications, and production requirements.

The Adjustable Snap Lock Seam Standing Roof Panel Roll Forming Machine is designed for manufacturers seeking greater production flexibility and integrated processing capabilities for metal roofing panels. By coordinating profile forming with additional material-processing functions, the system provides a configurable solution for specialized roofing production.

For project evaluation and machine configuration, customers are encouraged to provide their roof panel drawings, material specifications, required panel width range, and punching and bending requirements. These details enable the engineering team to assess tooling design, processing sequence, and machine configuration more accurately.

Contact Sussman Machinery for technical consultation and customized roll forming solutions.
