Sussman Machinery has conducted factory testing of its Width-Adjustable Snap Lock Standing Seam Roof Panel Roll Forming Machine, designed to produce metal roofing panels with adjustable widths ranging from 300 mm to 530 mm. Equipped with an anti-condensation felt application device, pre-cutting device, roller punching system, and after-bending device, the machine provides an integrated solution for standing seam roofing panel production.

With an operating speed of approximately 3–5 m/min, the machine is designed to support controlled, continuous forming operations and accommodate different roofing panel specifications. The factory testing process focuses on verifying the machine's operational functions, forming performance, auxiliary equipment coordination, and overall condition before delivery.

Machine Overview

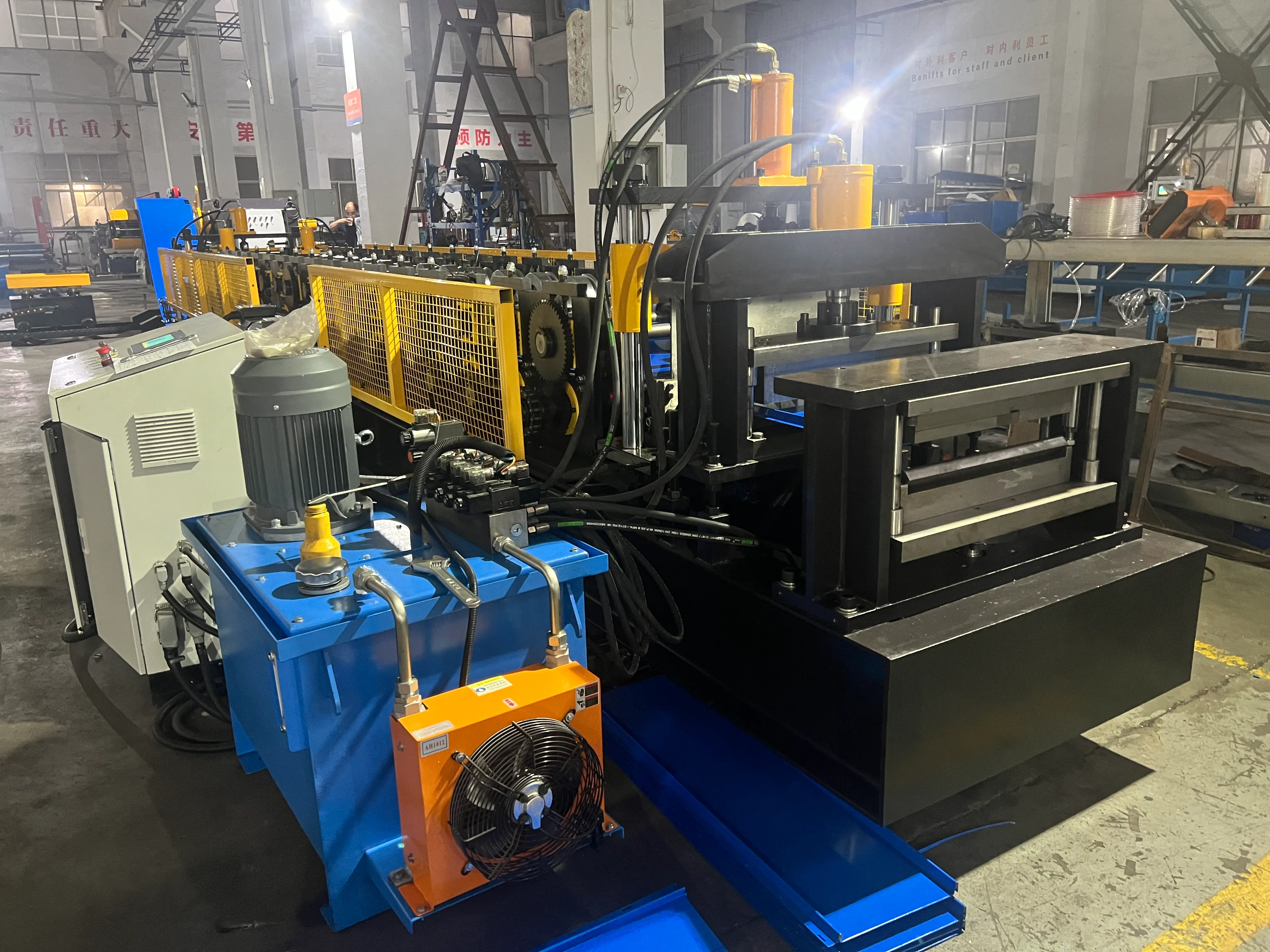

The Snap Lock Standing Seam Roof Panel Roll Forming Machine is developed for metal roofing manufacturers requiring flexible panel widths and integrated processing functions. Its adjustable-width configuration allows production widths to be set between 300 mm and 530 mm, subject to the specified machine configuration and adjustment procedure.

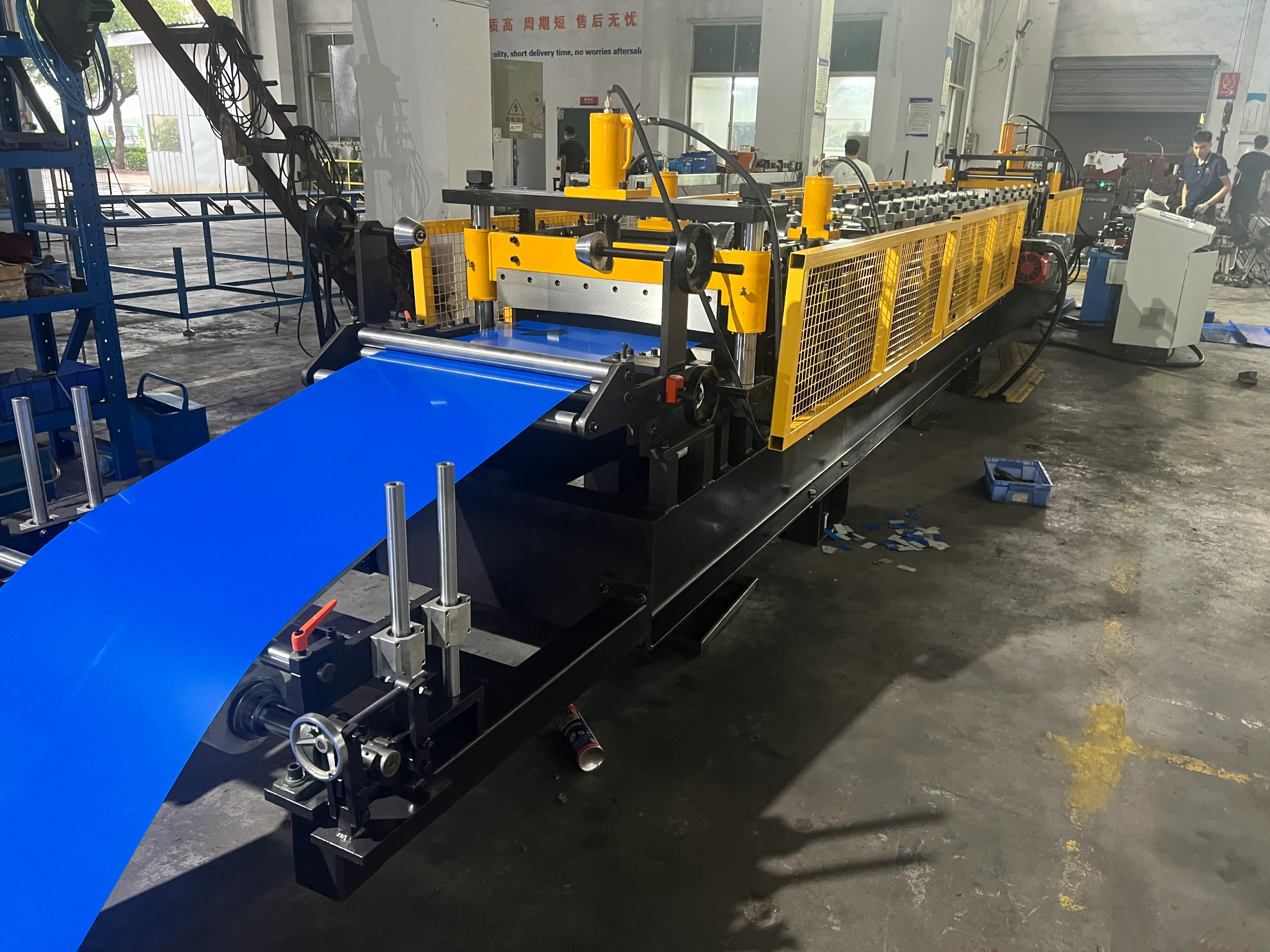

The machine progressively forms metal coils through multiple roller stations to produce the required snap lock standing seam profile. Its auxiliary devices support additional processing steps, helping streamline the production workflow for metal roofing applications in residential, commercial, and industrial construction.

Key Technical Features

1. Adjustable Panel Width: 300–530 mm

The adjustable-width design provides flexibility for manufacturing standing seam roof panels in different widths, helping roofing manufacturers accommodate varying project requirements with one configured production line.

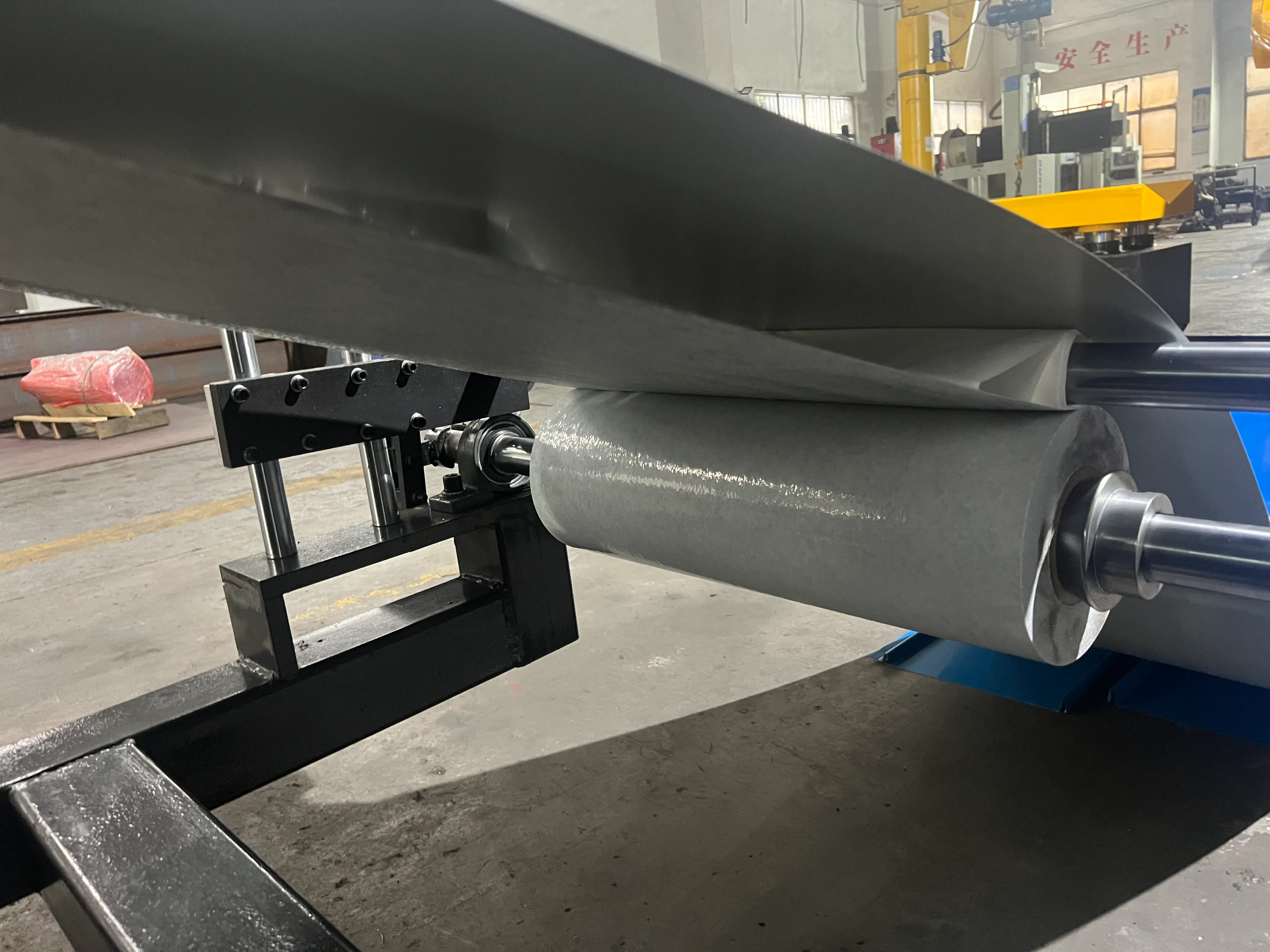

2. Integrated Anti-Condensation Felt Device

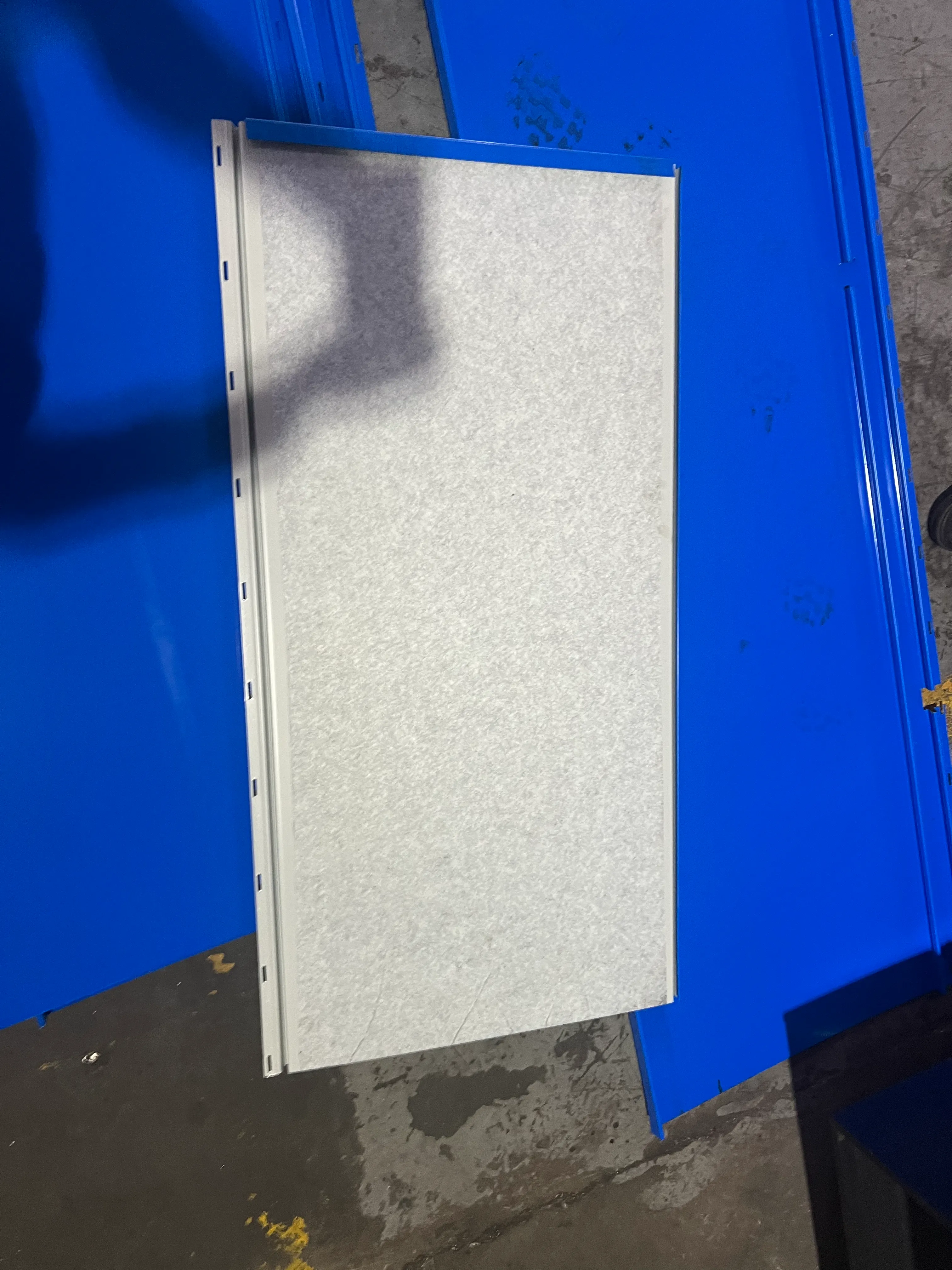

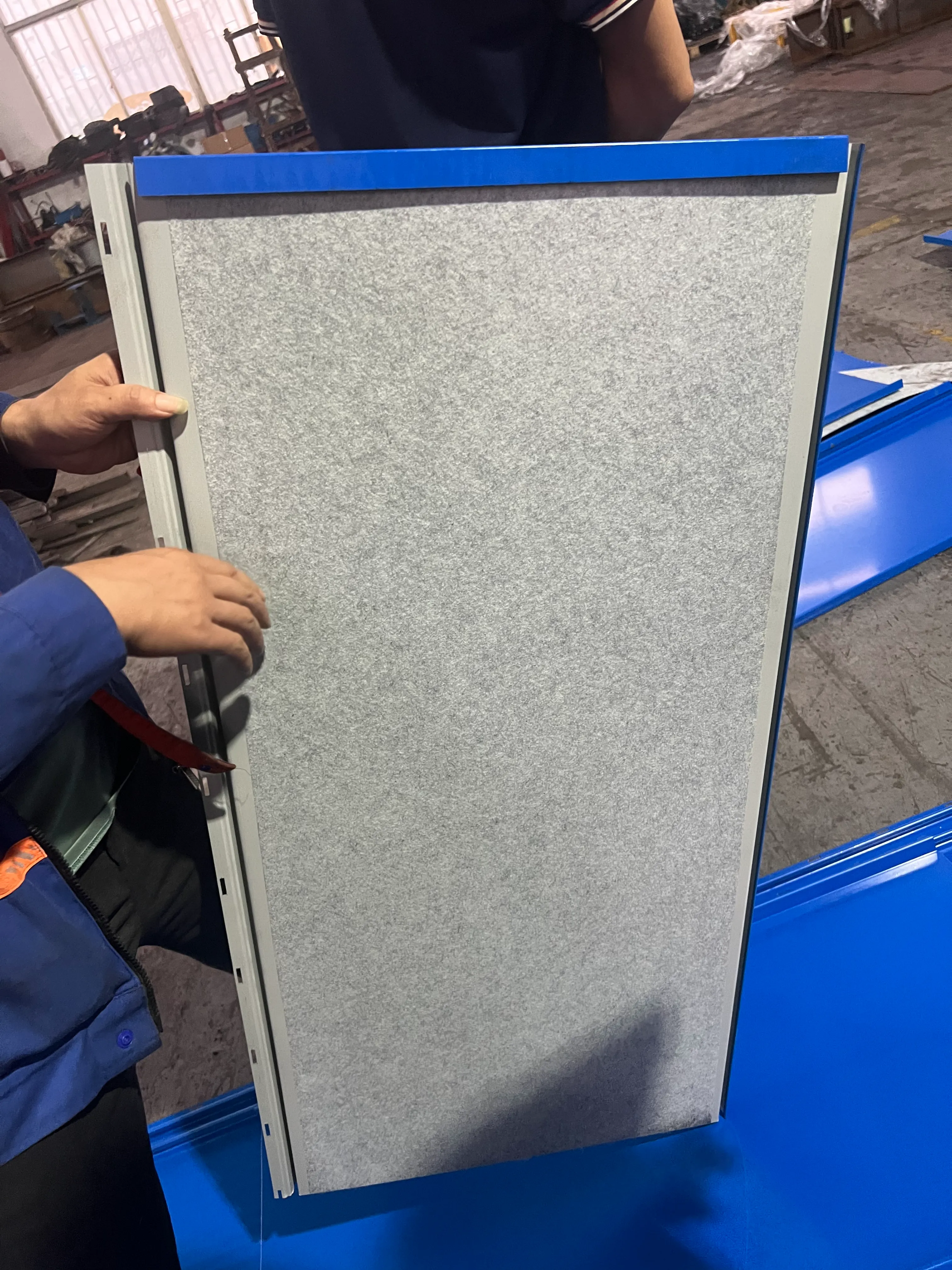

The felt application system applies an anti-condensation fleece backing to the metal sheet during production. This backing can help manage condensation beneath metal roofing, subject to the material specification, installation conditions, and overall roof design.

3. Pre-Cutting Device

The pre-cutting device supports the preparation of sheet ends before or as required by the forming process, helping accommodate the specified production and panel handling procedure.

4. Roller Punching System

The roller punching unit provides the specified punching function within the production line. Its operation and punching configuration can be matched to the customer's required panel design.

5. After-Bending Device

The after-bending mechanism performs the specified bending operation after the primary forming process, supporting the required panel-end geometry and application-specific finishing requirements.

Production Speed and Factory Testing

The machine operates at an approximate production speed of 3–5 m/min, depending on the material specifications, selected panel width, forming requirements, and coordination of the auxiliary devices.

During factory testing, the following areas are checked in accordance with the machine's configuration and agreed technical requirements:

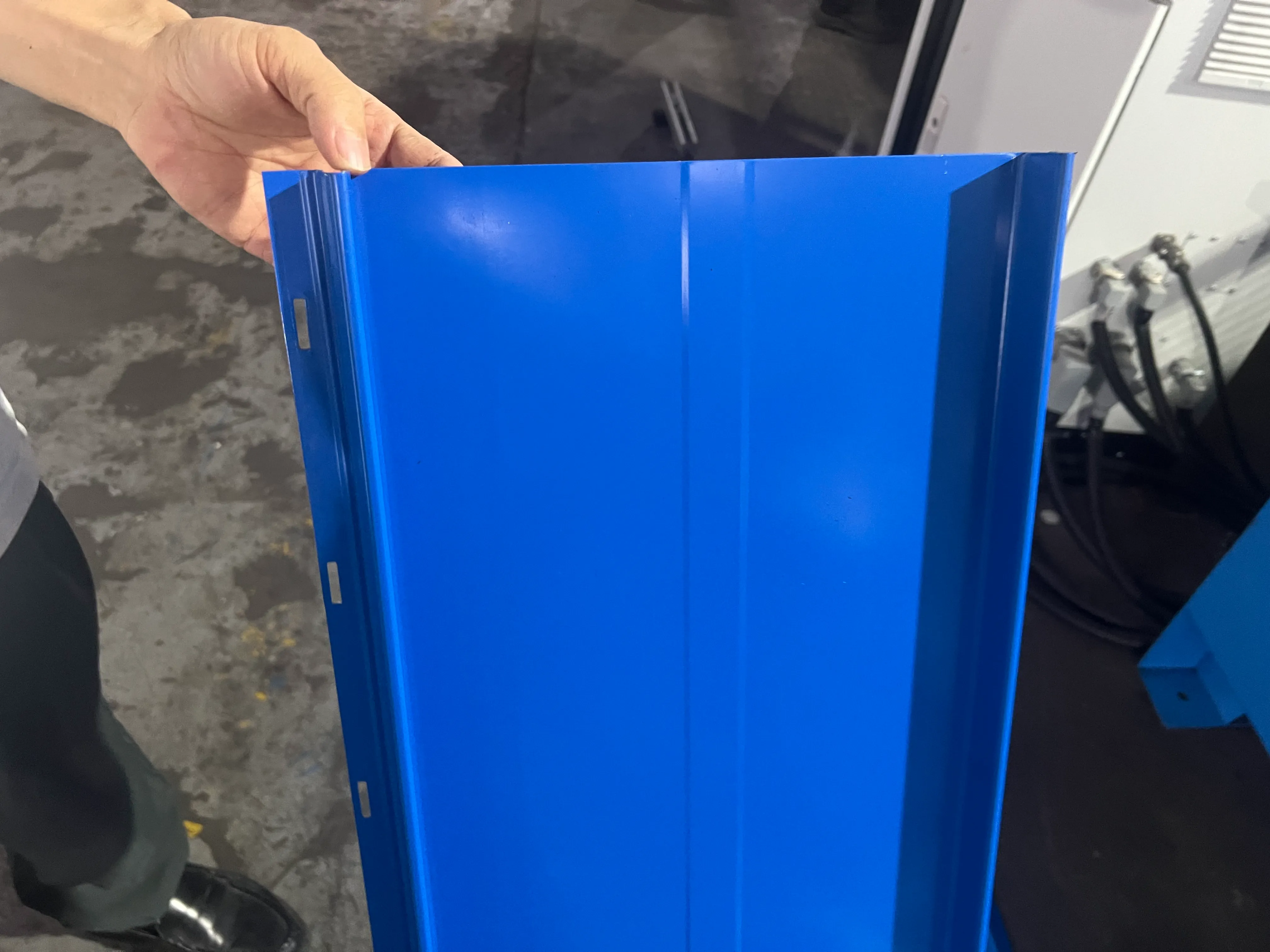

• Forming quality: Inspection of panel profile geometry, dimensions, edge conditions, and surface finish.

• Width adjustment: Verification of the adjustment functions across the specified 300–530 mm production range.

• Felt application: Inspection of felt feeding and application consistency.

• Punching and cutting functions: Verification of the configured roller punching and pre-cutting operations.

• After-bending operation: Checking the bending mechanism and its coordination with the forming process.

• Overall machine operation: Inspection of mechanical assemblies, control functions, protective guards, and auxiliary equipment.

These procedures help identify potential adjustments before shipment and support the preparation of the machine for customer installation and commissioning.

Designed for Modern Metal Roofing Production

By combining adjustable panel width with felt application, pre-cutting, roller punching, and after-bending functions, the Snap Lock Standing Seam Roof Panel Roll Forming Machine offers a flexible production configuration for manufacturers serving the metal roofing industry.

The integration of these functions can reduce the need for separate processing operations, depending on the customer's production workflow and final equipment configuration. The machine's relatively controlled forming speed also supports applications where profile quality, process coordination, and production flexibility are important considerations.

For roofing manufacturers, selecting suitable roll forming equipment involves more than production speed alone. Panel profile requirements, raw material specifications, accessory functions, finished product quality, and ease of operation all contribute to overall production efficiency.

Sussman Machinery: Roll Forming Solutions for Global Markets

Sussman Machinery (Wuxi) Co., Ltd. specializes in roll forming machinery for metal roofing, steel construction, and building material applications. Its product range includes standing seam roof panel machines, roof and wall panel roll forming lines, purlin machines, light steel framing equipment, and customized metal profile production solutions.

Through equipment manufacturing, factory inspection, and application-oriented technical support, Sussman Machinery works with customers to develop production solutions aligned with their manufacturing requirements.

The factory testing of this Snap Lock Standing Seam Roof Panel Roll Forming Machine represents an important step in verifying the equipment's configured functions and preparing it for delivery.

Sussman Machinery — Professional Roll Forming Equipment for Metal Roofing and Steel Construction.
