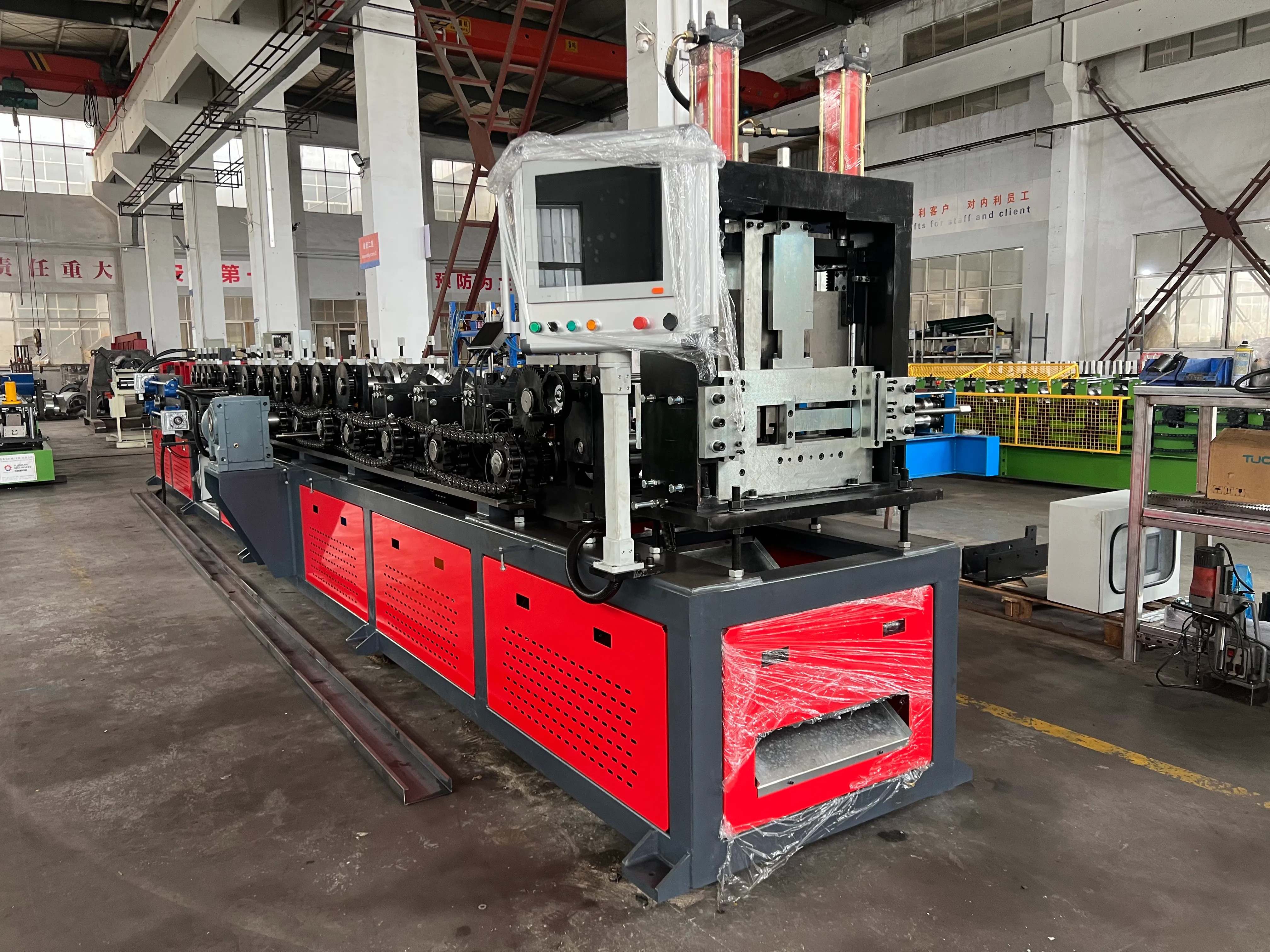

Industry Computer Control Adjustable Width CU Light Gauge Steel Roll Forming Machine

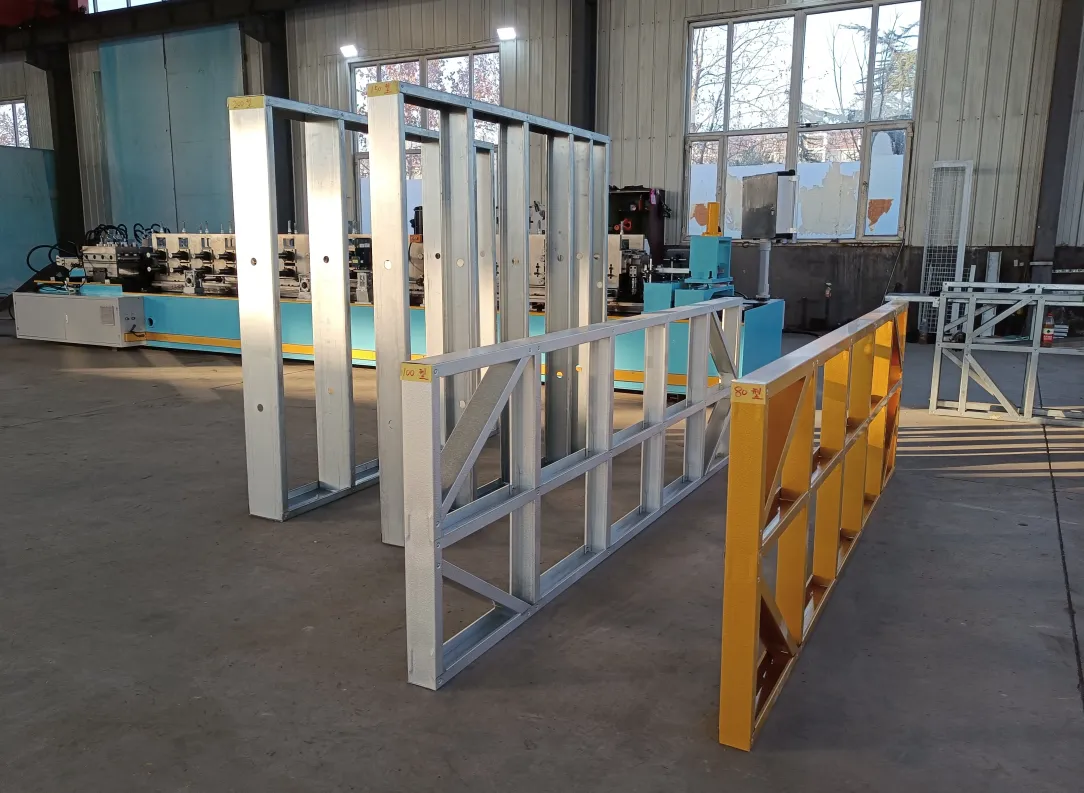

Roll Forming Machine For Light Gauge Steel Framing C U Profile is consist of decoiler ,feeding, roll forming, punching and cutting. They all automatic controlled by computer. The feature are efficient and easy to be controlled.This machine also can help you to reduce cost and working space.
|
1 |
Standard Producing speed |
|
|
2 |
Max producing speed |
About 1750m/h |
|
3 |
Main motor |
|
|
4 |
Roller station |
About 16 stations |
|
5 |
Power supplier |
|
|
6 |
7.5kw |
|
|
7 |
About 100L |
|
|
8 |
Hydraulic cooling system |
Fan cooling |
|
9 |
Hydraulic pressure |
Manually set |
|
10 |
Host cordless remote control |
Standard |
|
11 |
Frame and punching dies |
DIMPLE, SERVICE, WEB HOLE ,LIP NOTCH, Web notch |
|
12 |
Product accuracy+- |
+/-6000-0.5mm |
|
13 |
Size |
About 9500*1000*1200mm |
|
14 |
Weight |
About 8500kg |
|
15 |
Transmission |
By Gear+Chain |
|
16 |
||
|
17 |
Omron |
|
|
18 |
Printer |
HP printer |
|
19 |
Operation language |
English and Chinese(English operating manual) |
|
Machine list |
3 Tons Automatic un-coiler |
1 set |
|
Main roll forming machine |
1 set |
|
|
Out table |
1 unit |
|
|
HP printer |
1 unit |
|
|
Punching moulds |
About 6 sets |
|
|
Spare parts |
1 package |
|
|
Safety cover |
1 unit |
|
|
Industrial Computer |
1 unit |
|
|
Welder and cutter |
1 unit |
