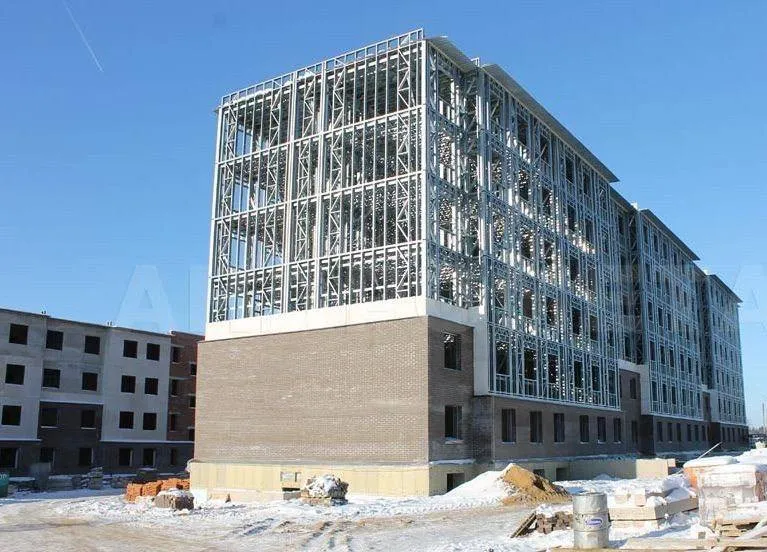

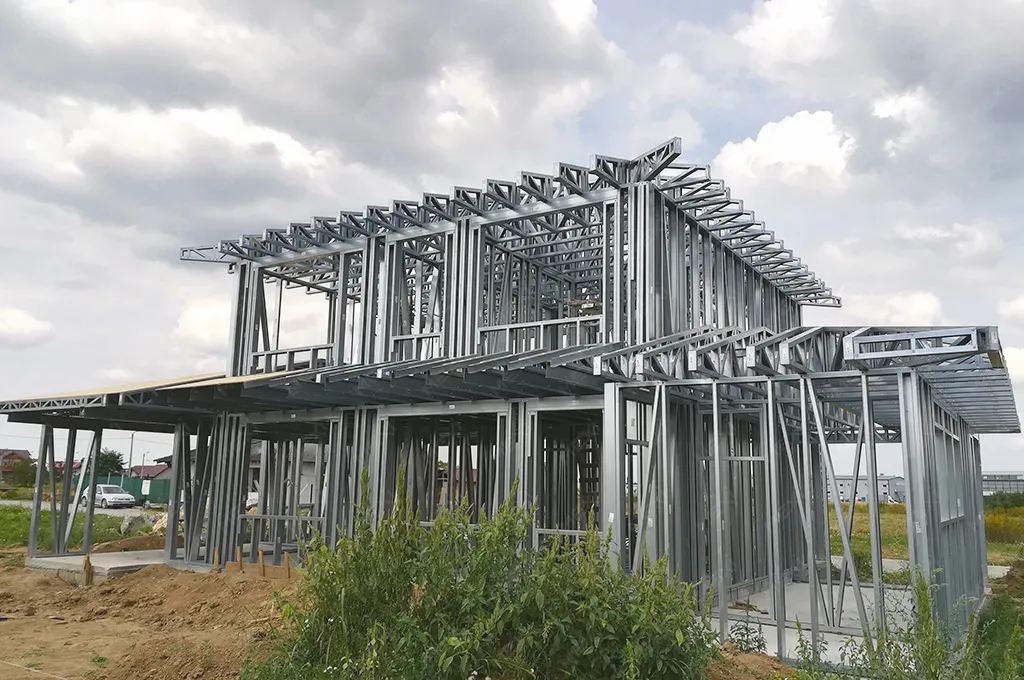

With heavy duty gauge capacity up to 2.0mm ( 14 gauge) this robust system is ideal for the manufacture of wall frames, wide-spanning roof trusses or long-spanning floor joists. Perfect for large scale production of load-bearing, mid-rise cold formed steel projects.

The system also produces dedicated C & U profiles between 70mm (7.26") and 300mm (12”). Its unique punching system provides provisions for easy installation of the HVAC and MEP, along with other electrical and plumbing services, without compromising on joint or profile strength.

Why Choose 2.0mm Thickness Over Lighter Gauges?

• Durability: Resists physical damage during construction and from long-term service impacts.

• Connection Integrity: Provides more "meat" for screw, bolt, and weld connections, leading to stronger, more reliable joints.

• Fire Resistance: A thicker steel section maintains structural integrity for a longer period under fire conditions compared to thinner gauges.

• Reduced Vibration: Less prone to harmonic vibration or "bounce," important in floors and platforms supporting dynamic loads.

Technial Data:

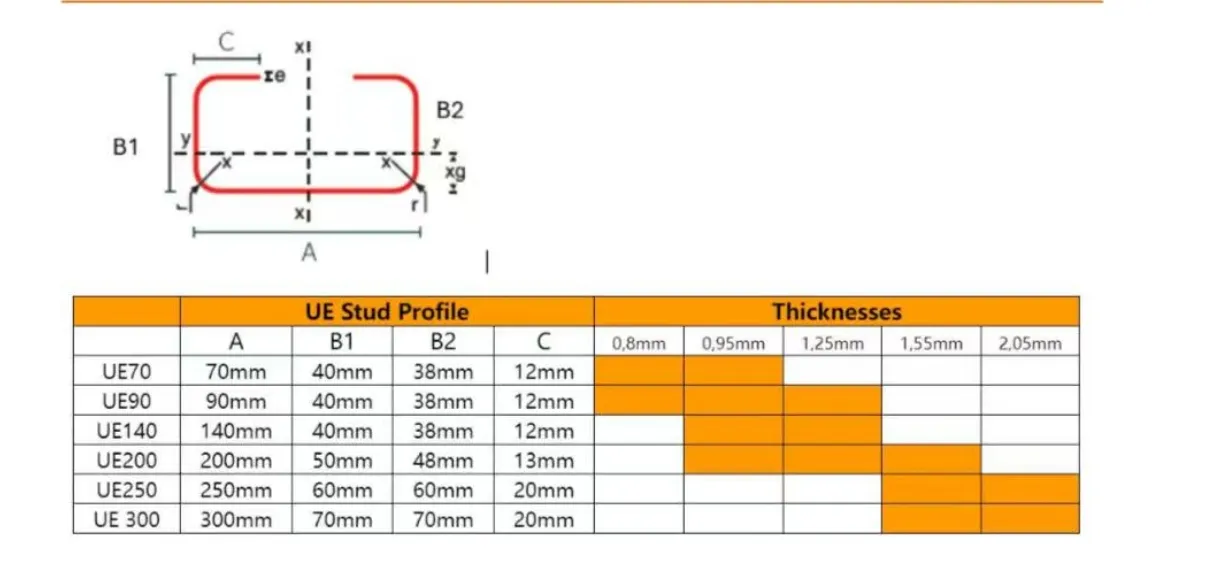

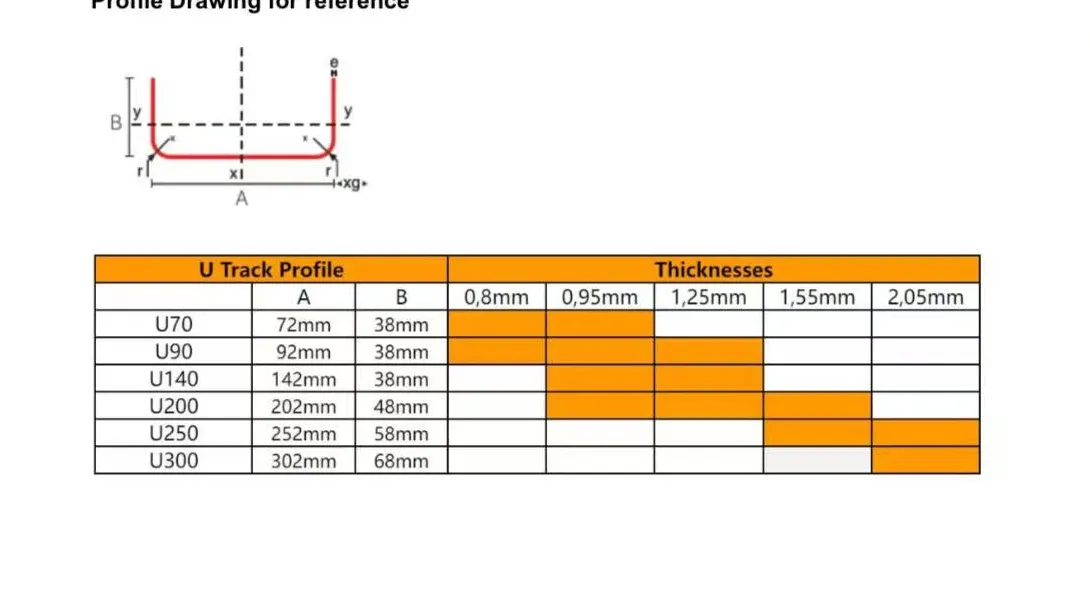

Profile Drawing:( C U 70mm to 300mm adjustable)

Machine List:

Working flow:

Automatic Decoiler with leveling---hydraulic punching---steel frame roll forming----hydraulic cutting---Output tables

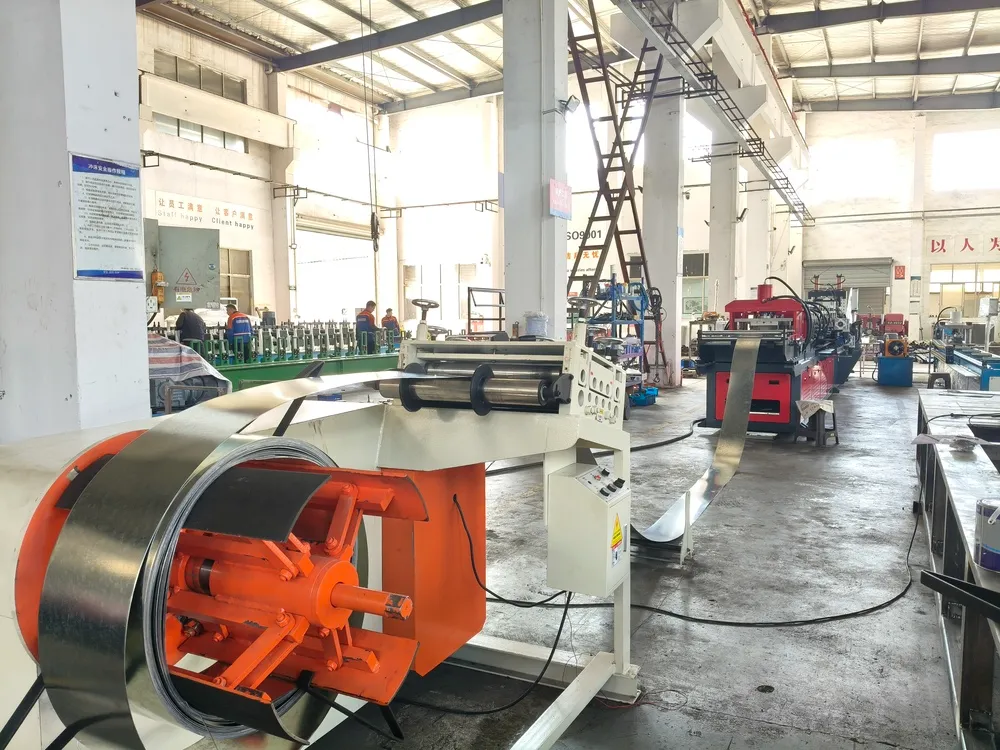

Automatic decoiler with leveling

Hydraulic punching to make holes( Web notch, lip cut, dimple hole, service hole or oval hole)

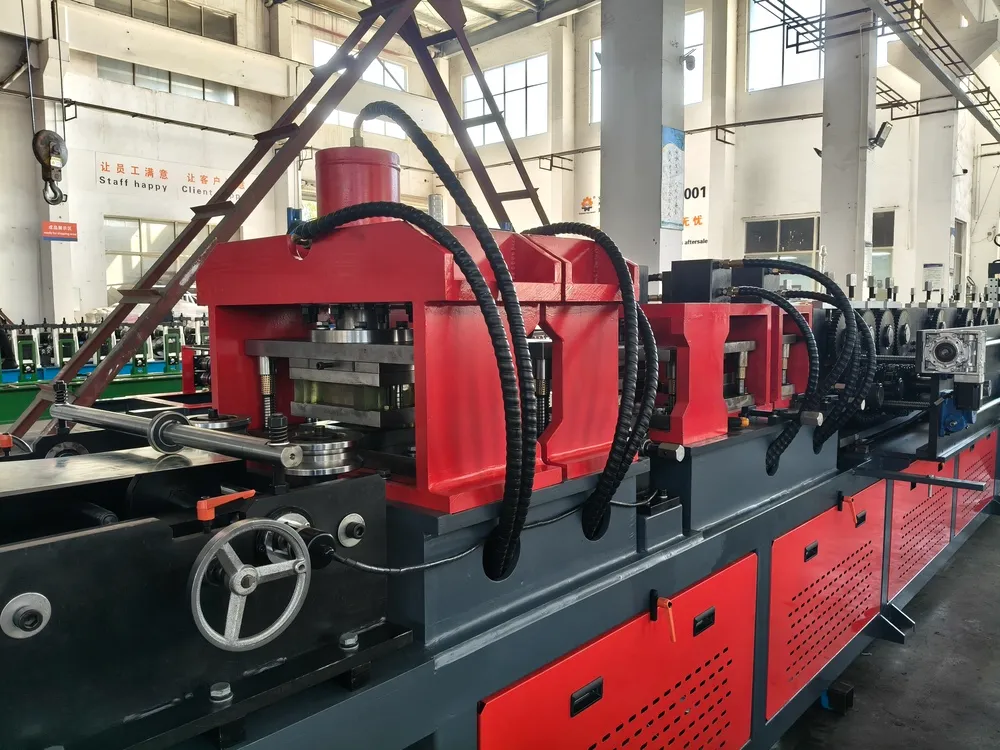

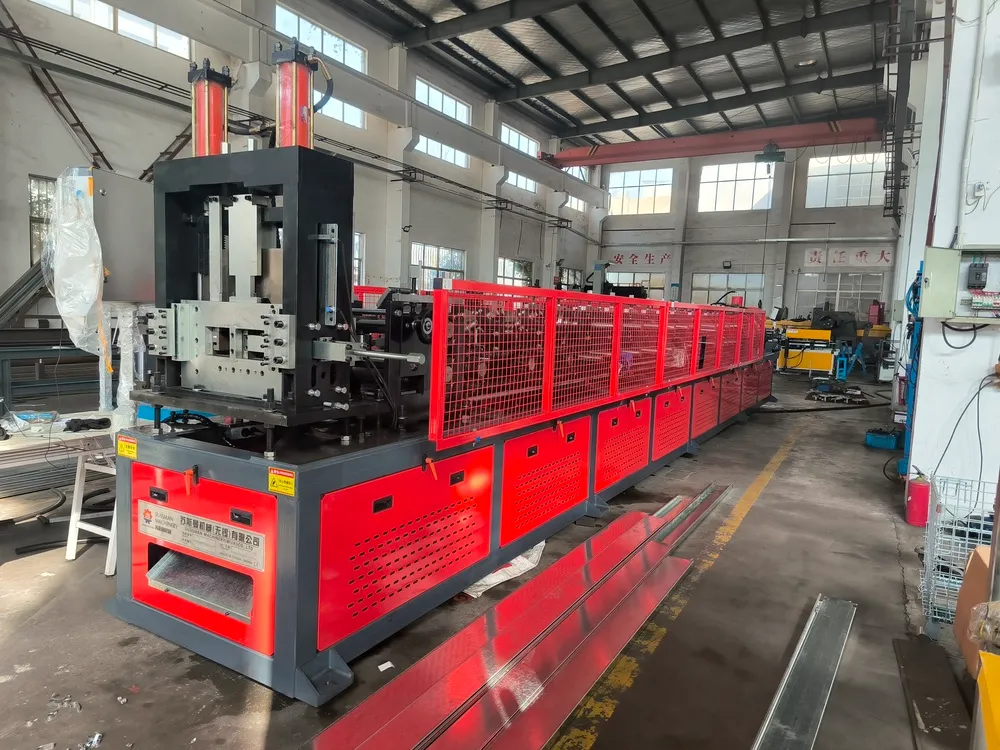

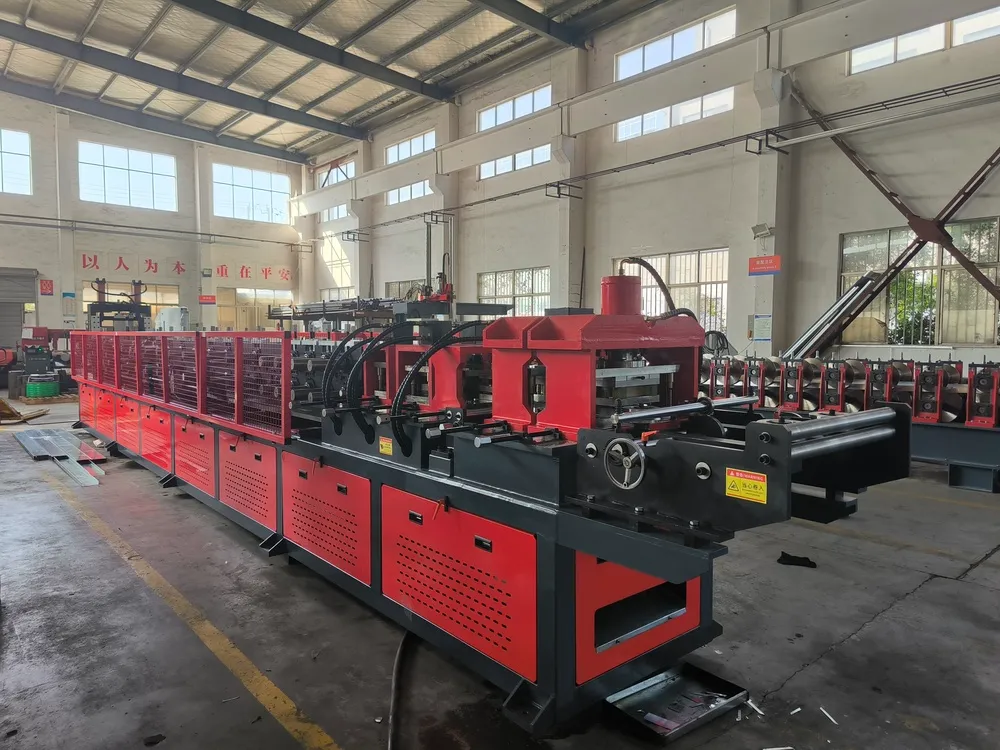

 Steel frame roll forming machine

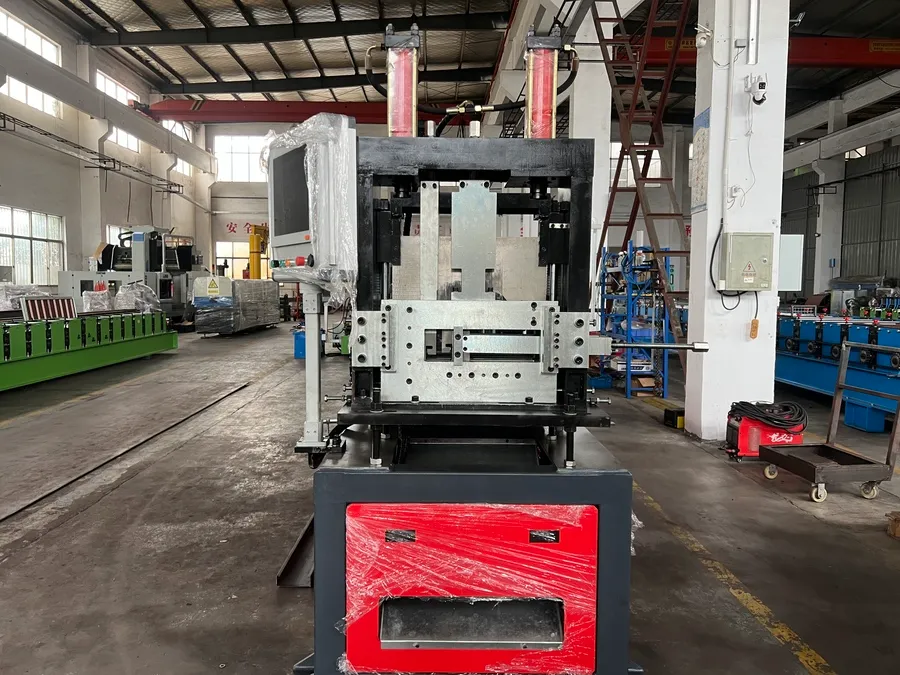

Hydraulic univerial cutting(No need to change cutting blade, adjustable by screws)

Applications of the Produced Profiles:

• 70-150mm profiles: Lightweight roof purlins, wall girts for small to mid-sized structures, and residential steel studs.

• 150-250mm profiles: Primary purlins and girts for large industrial warehouses, commercial buildings, and aircraft hangars.

• 250-300mm profiles: Heavier secondary structural members, sometimes used as lightweight rafters or in specialized long-span applications.
