In the world of construction, top hat battens have become increasingly popular products due to their superior quality and efficient installation. The machine includes decoiler, Feeding and Leveling Device, main forming machine, hydraulic cutting device, the Frequency converter controls the motor speed, the PLC system controls length and quantity automatically. Our produced profile meet ISO, CE , UL standards, and our machine is applied to steel structure, industry or home.

This machine is for Australia customers, 2 in 1 type. It can produce 2 kinds of top hat.

Technical Data:

Machine List:

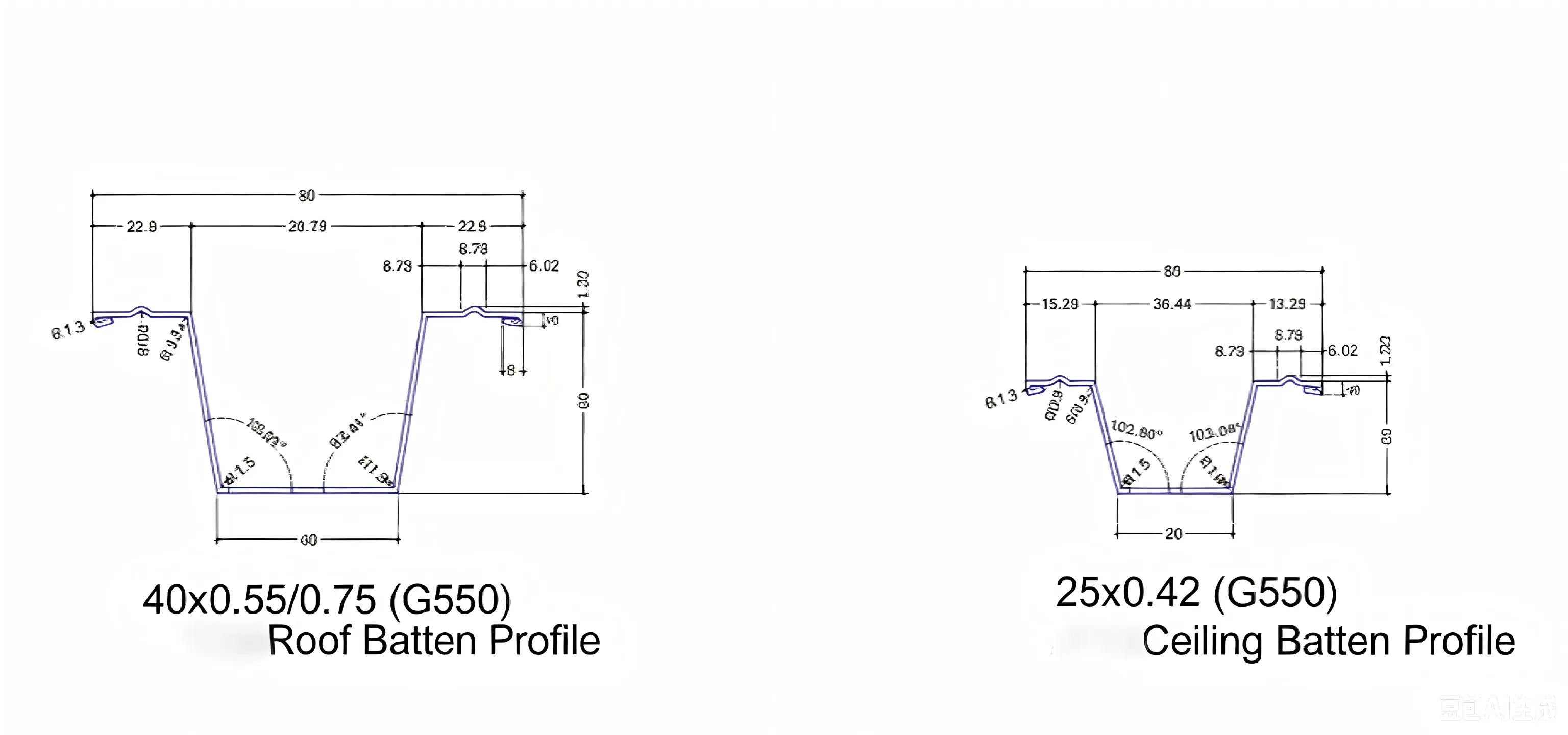

Profile Drawing:

Application:

Roof batten and ceiling batten are top hat cold rolled steel battens widely used in light gauge steel housing.

• Roof batten: Made of high tensile galvanized steel, designed to support roof tiles or metal roof sheets, resist wind suction and snow load. Thicker gauge for outdoor heavy load application.
• Ceiling batten: Light-duty top hat section, used for plasterboard ceiling support inside building. Thinner gauge, only bears ceiling board weight.

We supply roll forming machines to produce both roof batten and ceiling batten, with adjustable cutting length and hole punching function.
