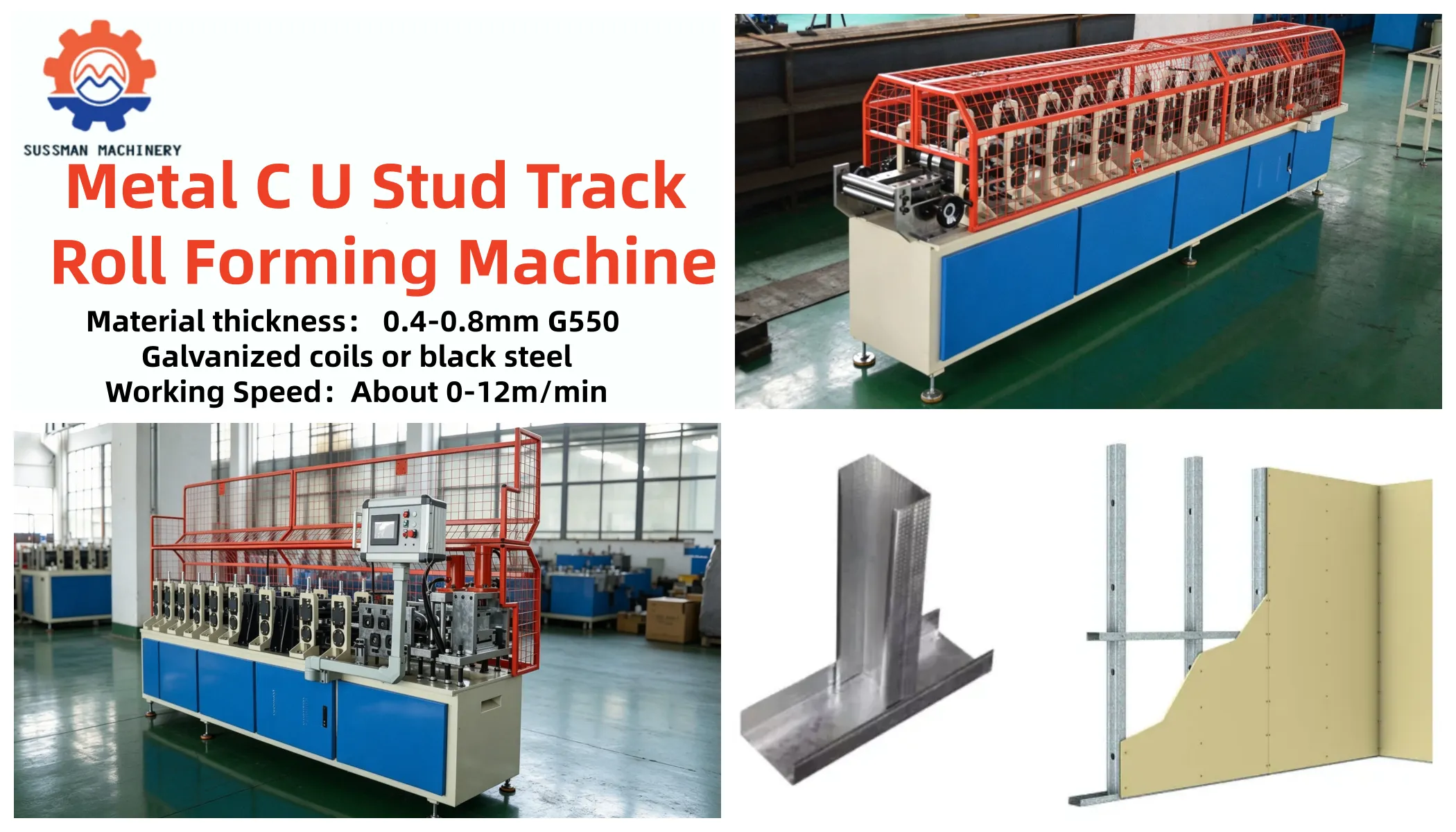

Manually 40-152mm Width Adjustment Drywall Metal Framing Profile Gypsum Board Partition Wall C U Stud Track Roll Forming Machine
We supply three types of C U stud track roll forming machines: fixed‑size type, automatic width‑adjustable type and high‑speed type.The fixed‑size model produces profiles in one single dimension, cost‑effective for mass production of standard studs and tracks.
The automatic width‑adjustable machine can change profile width quickly without manually replacing rollers, greatly saving your time for size change‑over. Our high‑speed stud track machine delivers faster forming speed and stable operation, ideal for large‑volume orders.

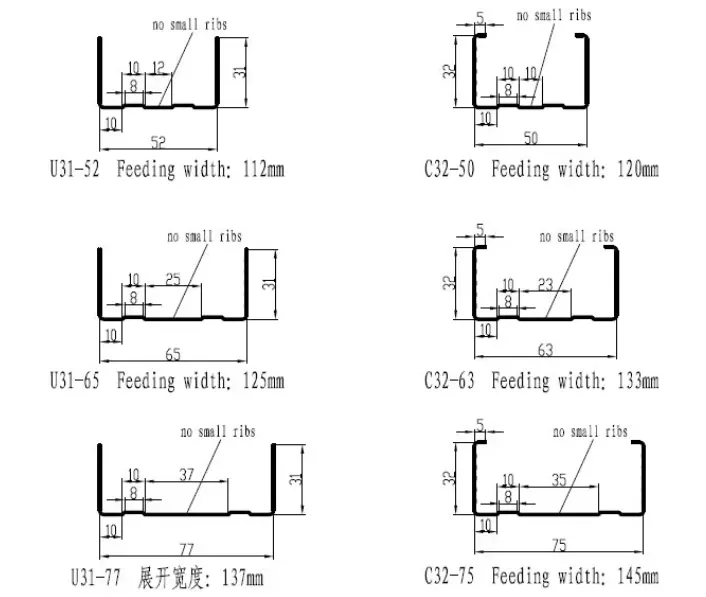

This machine supports material thickness from 0.4‑0.8 mm, suitable for G550 galvanized coils or black steel, to produce drywall partition metal framing profiles.
|
S.N
|
Equipment name
|
Quantity
|
|
1
|
3 ton passive decoiler
|
1 set
|
|
2
|
Main roll forming machine
|
1 set
|
|
3
|
Hydraulic punching Device
|
1 set
|
|
4
|
Hydraulic cutting Device
|
1 unit
|
|
5
|
PLC Control box
|
1 unit
|
|
6
|
Hydraulic station
|
1 unit
|
|
7
|
Out tables
|
2 units
|
|
8
|
Safety cover
|
1 set
|
|
9
|
Spare parts
|
1 Package
|
|
1
|
Material Thickness
|
thickness 0.4-0.8mm G550 Galvanized coils or black steel
|
||
|
2
|
Working Speed
|
About 0-12m/min
|
||
|
3
|
Forming Steps
|
About 13 stations
|
||
|
4
|
Material of Roller
|
45#forge steel, coated with chrome
|
||
|
5
|
Driven system
|
By chain
|
||
|
6
|
Main motor power
|
5.5 KW
|
||
|
7
|
Cutting type
|
Hydraulic cutting
|
||
|
8
|
Material of cutting
|
CR12 with quench treatment
|
||
|
9
|
Electronic control
|
PLC control
|
||
|
10
|
Hydraulic Station Power
|
5.5 KW
|
||

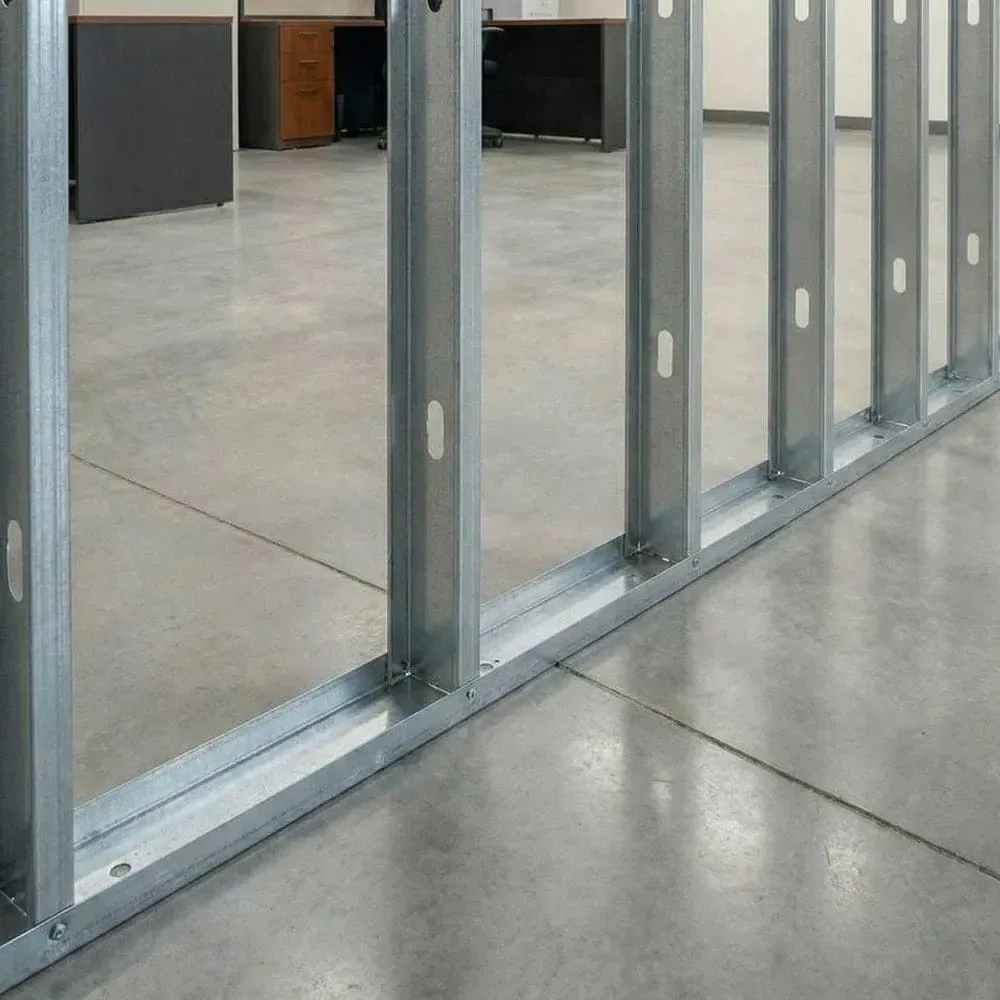

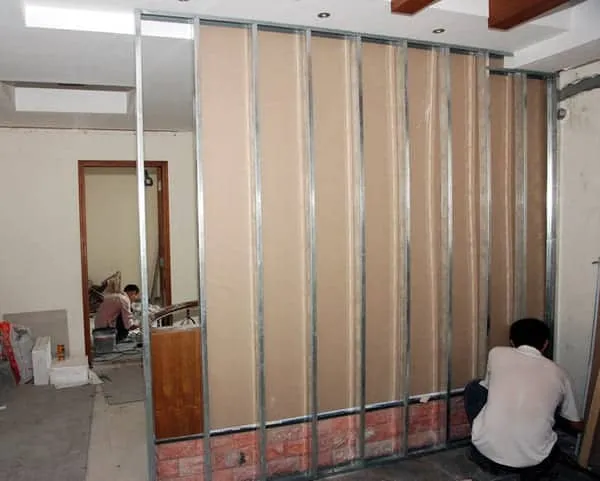

1. Gypsum Board Partition Wall
Manufacture metal frames for indoor drywall partition walls in office and commercial buildings.

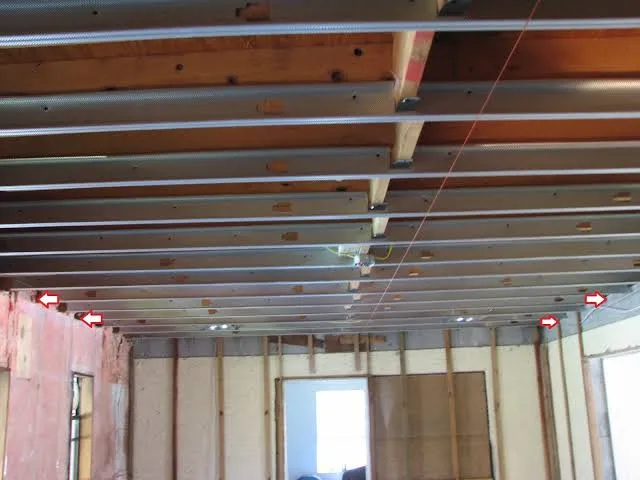

2. Interior Wall Decoration
Supply C U stud & track profiles for indoor renovation and interior wall finishing projects.
3. Residential Building Construction
Produce light steel framing components for houses, apartments and residential housing projects.

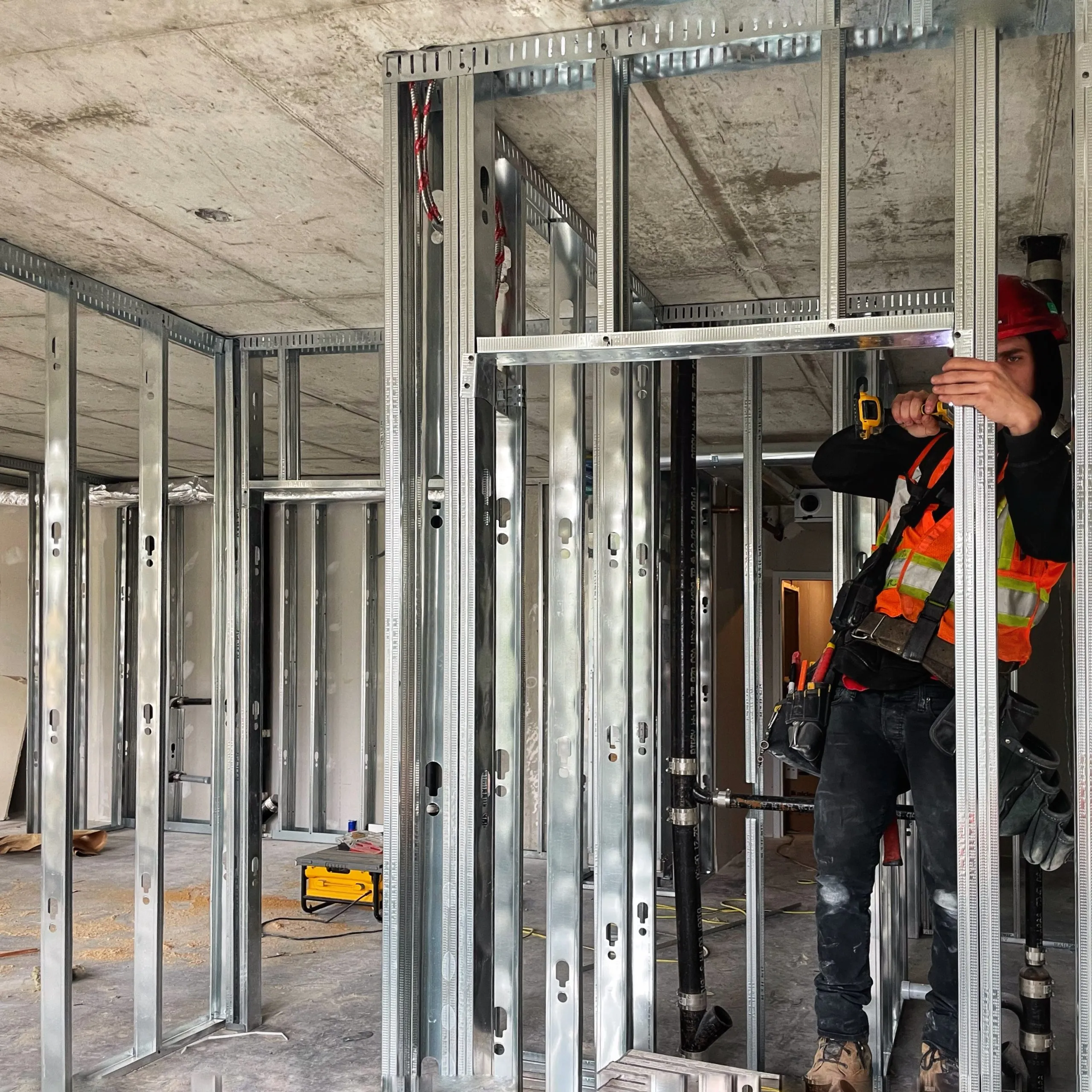

4. Commercial Building Framing
Provide metal framing profiles for shopping malls, hotels, schools and other commercial‑use structures.
5. Light Steel Drywall System
Profiles widely applied in all kinds of light‑gauge steel drywall framing systems.
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.
3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.
4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.
