Losacero 25 Deck: A Comprehensive Review of Product Characteristics, Structural Performance, Installation, and Construction Applications

Introduction

Losacero 25 Deck is a profiled steel decking system designed for composite floor slabs and roof slabs in steel-framed construction. Also referred to as Metal Deck 25, Steel Deck 25, or composite metal decking, the system combines a formed steel sheet with reinforced concrete to create a structural slab. During construction, the steel deck functions as a permanent formwork and working platform; after the concrete has cured, the profiled sheet and concrete can work together as a composite structural system.

The principal advantage of Losacero 25 is that several construction functions are integrated into one system. Instead of relying entirely on conventional timber formwork, the steel deck provides a ready-made platform for reinforcement and concrete placement. Its ribbed geometry improves stiffness and mechanical interaction with concrete, while the galvanized steel surface provides protection against corrosion under appropriate service conditions.

Losacero 25 is characterized by a nominal deck depth of approximately 63 mm (2.5 in.) and an effective covering width of approximately 914 mm (36 in.). The profile incorporates repeated ribs that provide geometric stiffness and mechanical interlock with the concrete. Technical documentation identifies available gauges including 22, 20, and 18, with gauge 18 generally requiring technical consultation depending on the product specification. Typical available lengths range from approximately 1.83 m to 12.0 m.

2. Structural Performance of Losacero 25

The structural concept behind Losacero 25 is based on composite action between the profiled steel deck and the concrete slab.

Before the concrete hardens, the steel deck must carry construction-stage loads, including its own weight, workers, reinforcement, fresh concrete, and construction equipment. Its ribbed shape provides substantially greater stiffness than a flat sheet of equivalent thickness.

After curing, the system behaves as a composite slab when the appropriate design conditions are satisfied. The profiled steel sheet contributes primarily as tensile reinforcement in the positive moment region, while the concrete provides compressive resistance and contributes to the overall stiffness of the slab. The ribs and embossed features of the deck help establish mechanical interaction between steel and concrete.

For steel-framed buildings, shear connectors may also be used when the structural design requires composite action between the concrete slab and supporting steel beams. The Ternium installation documentation identifies shear studs as an optional component of the composite system, subject to engineering design.

It is important to distinguish between the deck's construction-stage capacity and the final composite slab capacity. Span, gauge, concrete thickness, reinforcement, loading, support conditions, deflection limits, fire requirements, and applicable design codes all affect structural performance. Consequently, a particular Losacero 25 gauge should not be selected solely on the basis of nominal deck thickness.

3. Losacero 25 Installation Process

Proper installation is critical to achieving the intended performance of a composite deck system. The following sequence summarizes the principal construction stages.

Step 1: Inspect the Supporting Structure

Before placing the first panel, contractors should verify that the supporting beams and connections are fully installed and that the supporting structure is properly aligned and level. Free edges, openings, elevator shafts, ducts, and other areas may require additional supporting members.

This inspection is particularly important because the steel deck follows the geometry of the supporting structure. Significant deviations in beam elevation or alignment can affect bearing, panel fit, concrete containment, and final slab geometry.

Step 2: Plan Panel Layout

The deck panels should be laid out according to the structural drawings. Panel orientation, support locations, openings, edge conditions, and end laps should be established before installation.

The effective width of Losacero 25 is approximately 914.4 mm, so panel quantities can be estimated from the floor area. Nevertheless, actual material quantities must account for cutting, openings, edge conditions, and project-specific geometry.

Step 3: Place and Align the Deck

Panels are lifted to the work area and positioned over the supporting beams. The first panels are particularly important because their alignment establishes the reference for the remainder of the installation.

The manufacturer's installation guidance recommends careful handling to avoid scratching or damaging the galvanized coating. Panels should also be positioned without excessive friction between sheets.

Step 4: Secure the Panels

The deck must be positively attached to the supporting structure. Depending on the project design and approved installation method, attachment may involve self-drilling screws, shot-fired fasteners, or welding at specified locations.

Side-lap connections between adjacent sheets are also important. Installation guidance indicates that the longitudinal side laps should be stitched at regular intervals to prevent movement and maintain alignment during concrete placement.

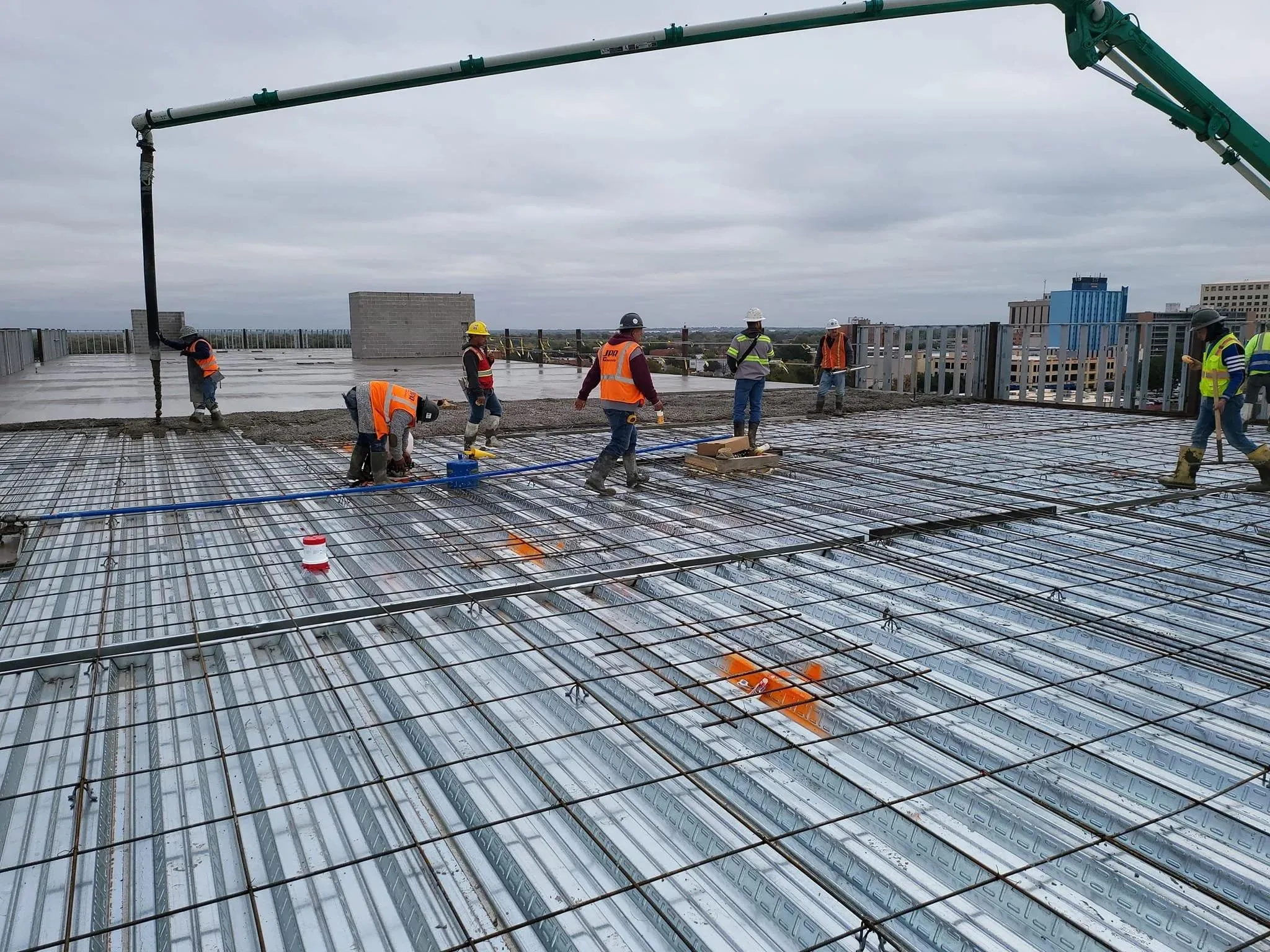

Step 5: Install Reinforcement

After the deck is secured, reinforcement such as welded wire mesh is positioned above the steel profile. The reinforcement controls temperature and shrinkage cracking and contributes to the behavior of the concrete slab.

The exact reinforcement arrangement should follow the structural drawings and applicable design standards rather than relying on a generic installation detail.

Step 6: Install Shear Connectors Where Required

Where composite action between the steel beam and concrete slab is part of the structural design, welded shear studs may be installed through or around the deck according to the approved engineering detail.

The number, diameter, spacing, orientation, and installation method of shear connectors are structural design parameters. The manufacturer's manual provides specific guidance and reduction factors for certain deck/beam configurations, emphasizing that connector design must be coordinated with the system geometry.

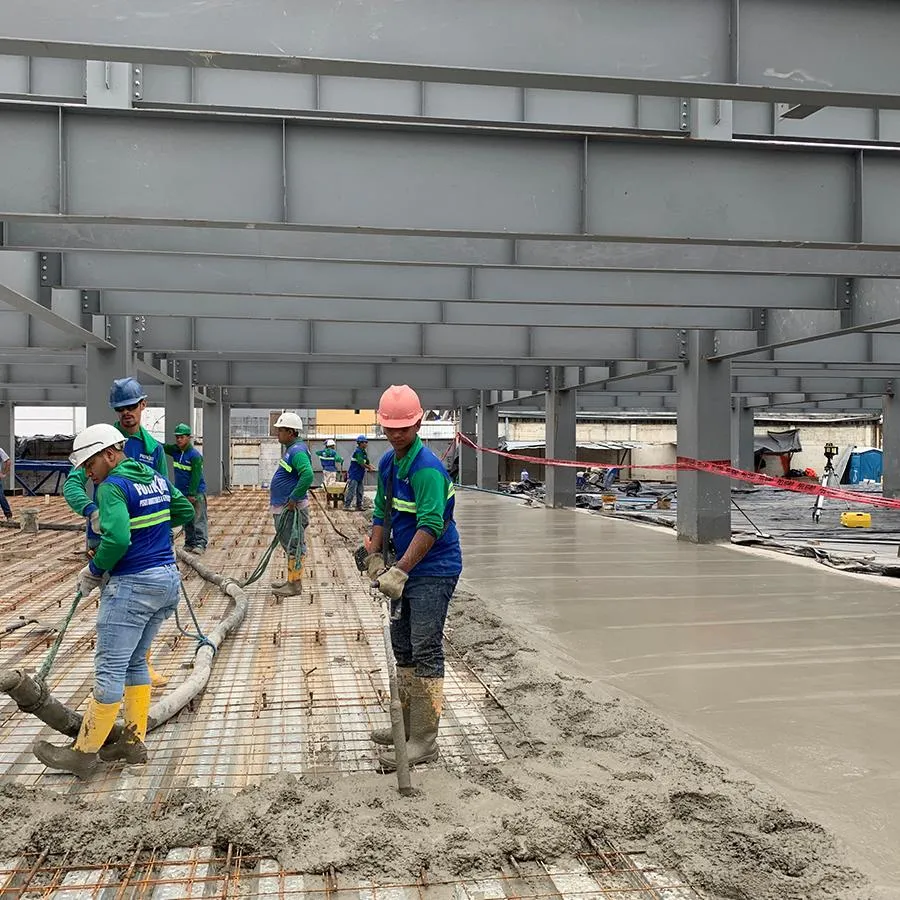

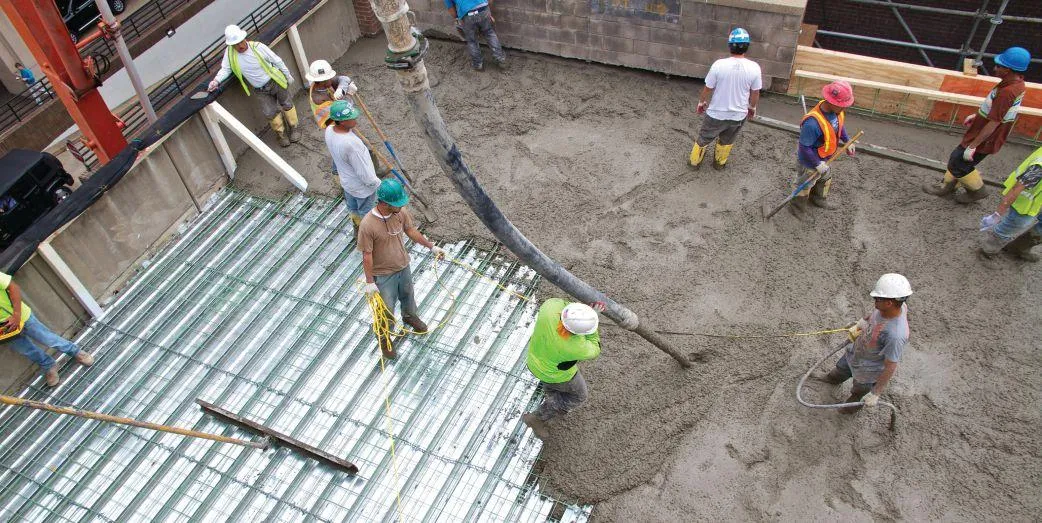

Step 7: Concrete Placement

Concrete is then placed over the installed deck and reinforcement. Concrete placement should be controlled to avoid excessive temporary loading or concentrated piles of wet concrete.

Construction personnel should follow the approved concrete mix, placement sequence, slab thickness, curing procedure, and site safety requirements. For example, documentation associated with Ternium Losacero identifies minimum concrete strength and specific placement recommendations; these values should be checked against the current manufacturer's documentation and the project's structural specifications before construction.

After placement, the concrete should be properly consolidated and finished. Once the concrete reaches the specified strength, the completed system functions as a composite floor or roof assembly where designed accordingly.

4. Construction Applications

Losacero 25 can be considered for a wide range of building applications, including:

1. Office buildings – composite floor construction in steel-framed commercial buildings.
2. Shopping and retail facilities – intermediate floors and mezzanines.
3. Industrial plants – maintenance platforms, mezzanines, and service floors.
4. Warehouses – office areas, elevated platforms, and multi-level storage structures where structurally appropriate.
5. Hotels and residential buildings – floor systems within steel or hybrid structural frames.
6. Renovation projects – replacement or addition of floor structures where access and construction speed are important.
7. Roofs and roof slabs – applications where the deck and concrete assembly are incorporated into the structural design.
8. Pedestrian structures – certain applications where engineering requirements are satisfied.
